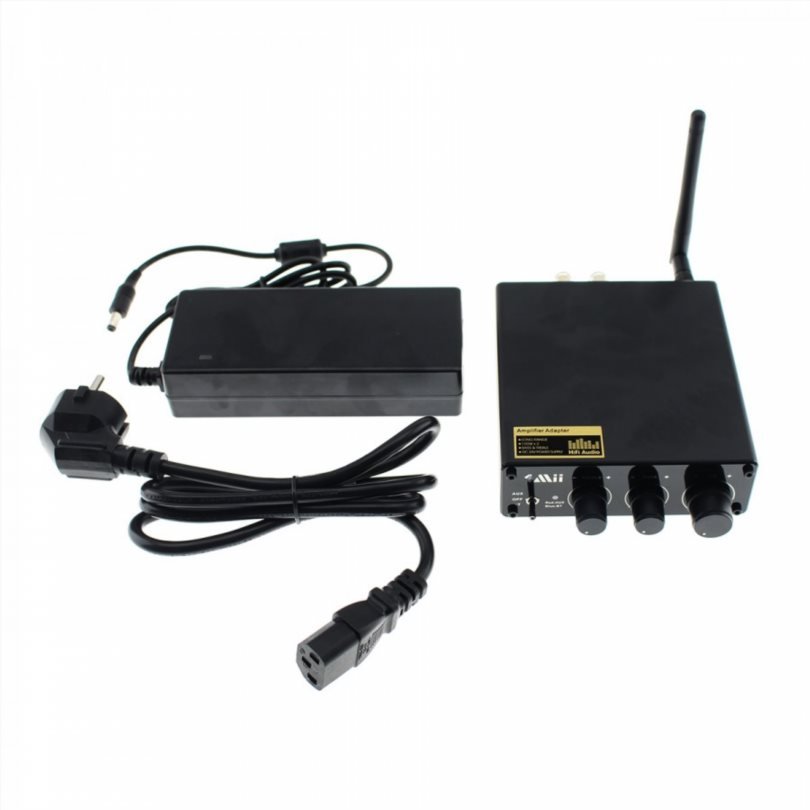

1MII B08+: Class D amplifier with Bluetooth 5.0

The 1Mii B08+ is an affordable and powerful amplifier with a built-in Bluetooth receiver. The built-in ATS 2853 chip provides Bluetooth 5.0 signal reception with support for AAC and SBCI transmission codecs. Equipped with antennas, it allows you to transmit signals over long distances, up to 30 m without obstacles. There is also a stereo RCA input.

Its amplifier stage allows you to develop a power of 2×50 W, which is ideal for accompanying small passive bookshelf speakers.

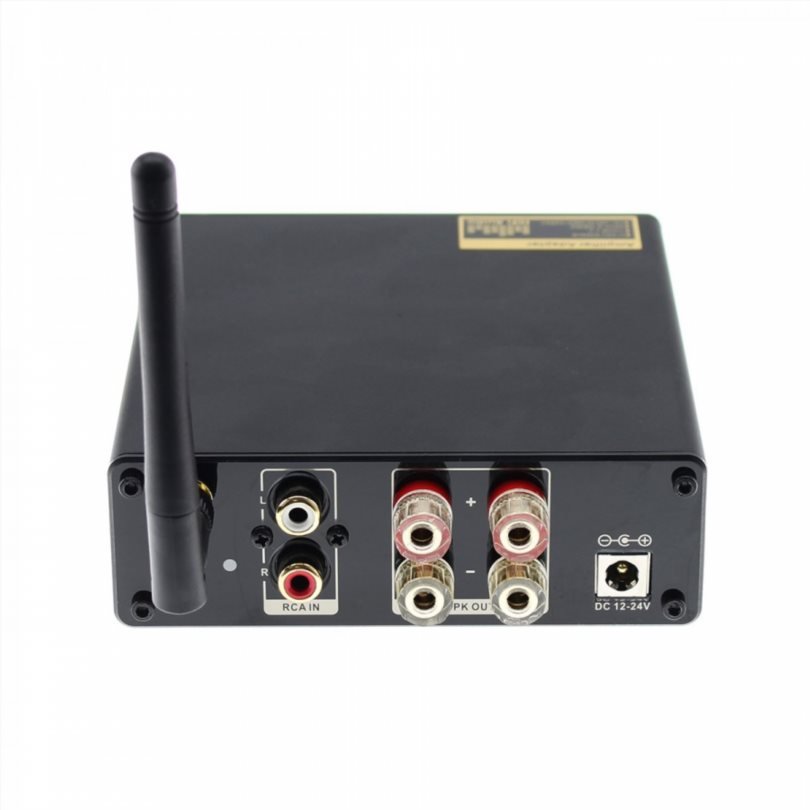

There are, of course, speaker terminals on the output side.

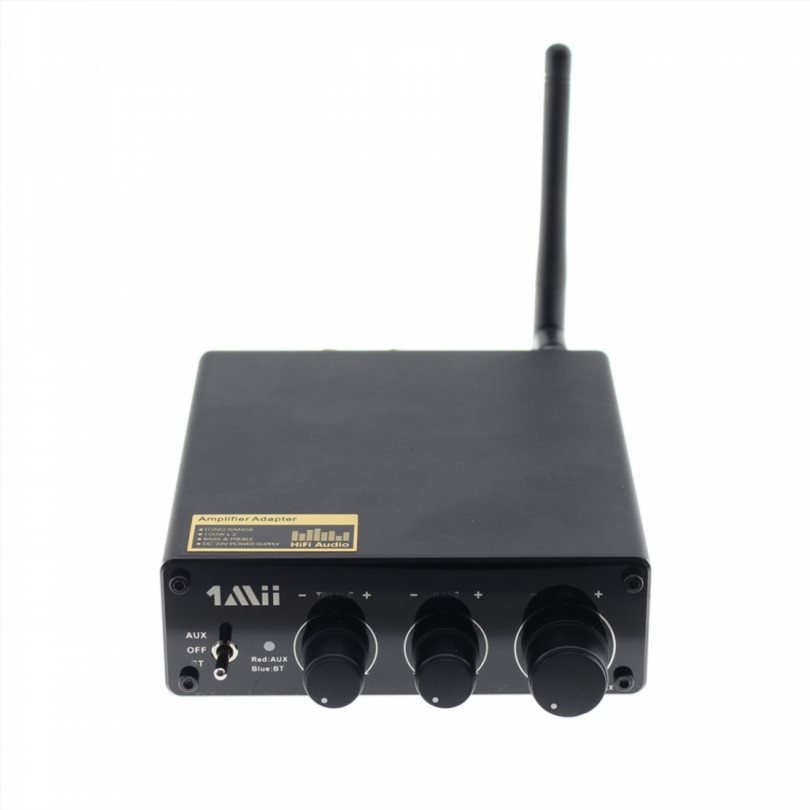

On the front panel of the device there are three buttons that allow you to adjust the volume level, as well as the levels of bass and treble.

The amplifier is equipped with a TPA3116D chip, providing an output power of 2×50 W, in addition, the ATS2853 Bluetooth chip supports AAC, SBCi codecs.

Characteristics of 1MII B08+:

• Product Type: Bluetooth Amplifier
• Inputs: Bluetooth 5.0/1x RCA stereo
• Outputs: 1x speaker terminal
• Bluetooth version: 5.0
• Supported Bluetooth profiles: A2DP/AVRCP/HFP
• Supported Bluetooth codecs: ACC/SBC
• Maximum transmission distance: without obstacles: 30m
• Output Power: 2x 50W/4ohm
• Operating temperature range: -10°C / +45°C
• THD: 0.5% ≤
• SNR: ≤ 98 dB
• Response frequency: 20 Hz – 20 kHz
• Supply voltage: DC 12- 24V 4A
• Dimensions: 136 x 101 x 45 mm
• Weight: 418 g
• Black color
