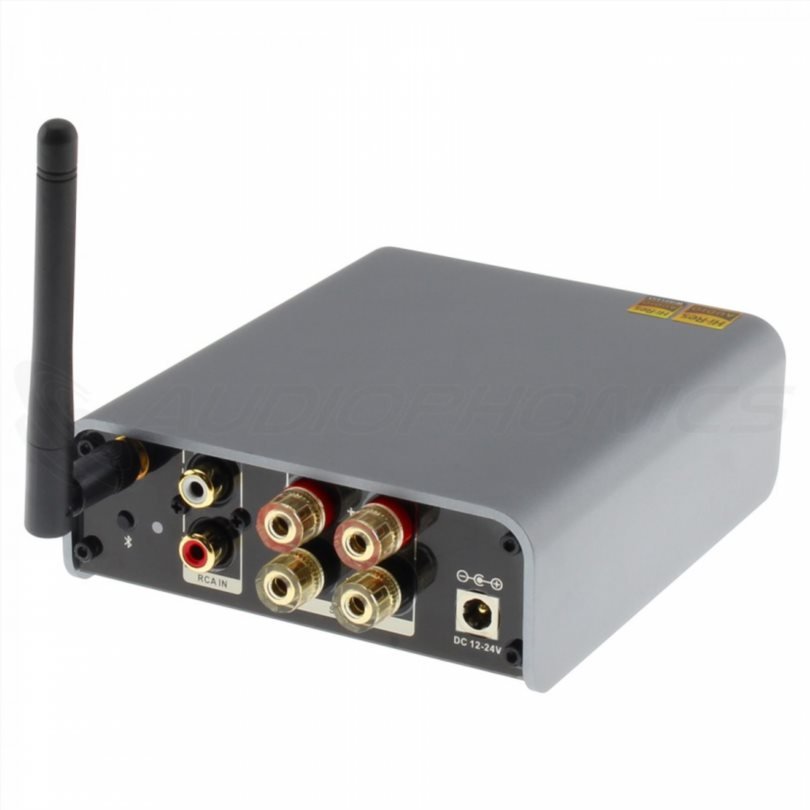

1Mii Lavaudio DS300: Compact and affordable amplifier

The 1Mii Lavaudio DS300 is a compact and affordable amplifier that can still deliver decent power. Indeed, thanks to two TPA3116D2 class D amplifier chips, it is capable of delivering 2×60 W at 4 ohms.

In addition to a practical RCA input socket, it is equipped with Bluetooth 5.0, allowing you to stream music remotely, for example from a smartphone. Support for aptX, aptX HD and LDAC codecs ensures superior audio quality even in wireless mode.

In addition, there are three buttons on the front panel. This makes it easy to adjust volume as well as bass and treble boost depending on your listening situation and system. All components are housed in a durable, modern gray aluminum housing.

Specifications of 1Mii Lavaudio DS300:

• Item Type: Amplifier
• Amplifier chips: 2* TPA3116D2
• Output Power 2x60W @ 4 ohms, 1% THD / 2×75 W @ 4 ohms, 10% THD / 2×33 W @ 8 ohms, 1% THD / 2×40 W @ 8 ohms, 10% THD
• Inputs: Bluetooth 5.0/ 1* stereo RCA
• Output: Speaker terminal
• DAC chip: PCM5102
• Bluetooth chip: Qualcomm QCC5125
• Supported Bluetooth codecs: SBC, AAC, aptX, aptX HD, LDAC
• Tone Control: Bass/Treble
• THD: ≤ 0.03%
• Frequency response: 20 Hz – 20 kHz (±1 dB)
• SNR: ≥ 93 dB
• Input sensitivity: ≤ 500mV
• Supply voltage: 24 VDC (power supply included)
• Housing material: aluminum
• Dimensions: 108x146x40 mm
• Weight: 430 g
• Color: gray and black
