Fosi Audio ZP3: A Versatile Balanced Preamplifier for Home and Professional Use

The Fosi Audio ZP3 is an innovative balanced preamplifier that utilizes NE5532 operational amplifiers. It is engineered to provide stable and clear signal transmission with an extensive dynamic range, effectively reducing the impact of interference and ground loop issues. This device is suitable for both professional applications and home audio setups. It features TRS/XLR combo and stereo RCA inputs, along with a balanced XLR output. Furthermore, it includes controls for low and high frequencies, as well as channel balance, enabling you to tailor the sound to your individual preferences.

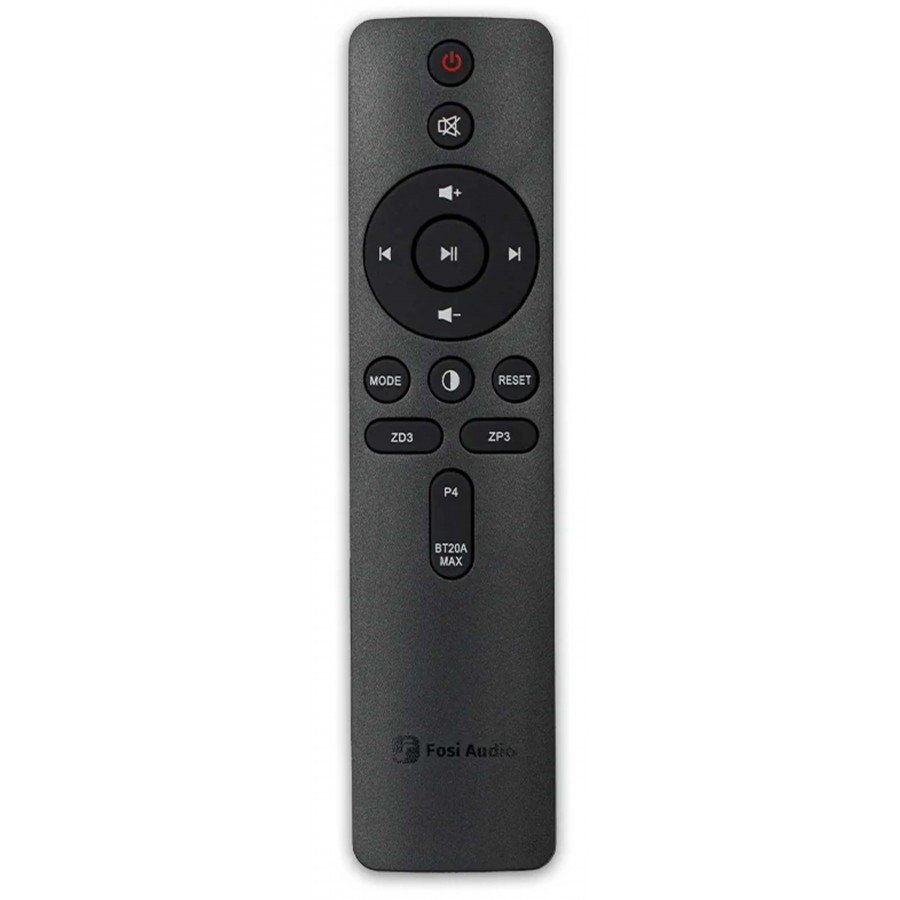

The ZP3 features a subwoofer output (20–200 Hz), allowing you to build a 2.1 system. In addition, there is a frequency division switch for the RCA/XLR outputs (20–20,000 Hz / 80–20,000 Hz / 120–20,000 Hz) and a bypass mode for direct signal passage. For ease of use, the kit includes a remote control that allows you to quickly switch sources and adjust the volume.

The design uses high-quality components – ELNA capacitors, NJR NJU72315 volume control chip, gold-plated RCA connectors. This reduces the level of noise and distortion, ensuring transparency and stability of sound.



Fosi Audio ZP3 Specifications :

• Device type: preamplifier
• Operational amplifier: NE5532
• Inputs: 2x RCA / 1x TRS/XLR combo
• Outputs: RCA (20-20,000Hz / 80-20,000Hz / 120-20,000Hz) / XLR (20-20,000Hz / 80-20,000Hz / 120-20,000Hz) / Subwoofer RCA (20-200Hz)
• Signal to noise ratio (XLR): ≥112 dB
• Dynamic Range (XLR): ≥112 dB
• Total Harmonic Distortion + Noise (XLR): ≤0.0007%
• Noise level (XLR): ≤6 μV
• Signal to noise ratio (RCA): ≥115 dB
• Dynamic Range (RCA): ≥115 dB
• Total Harmonic Distortion + Noise (RCA): ≤0.0008%
• Noise level (RCA): ≤4 µV
• Controls: channel balance / bass / treble / volume
• Additional: bypass mode / high-pass filter switch (3 levels) / IN/OUT trigger / remote control

Price: $199
