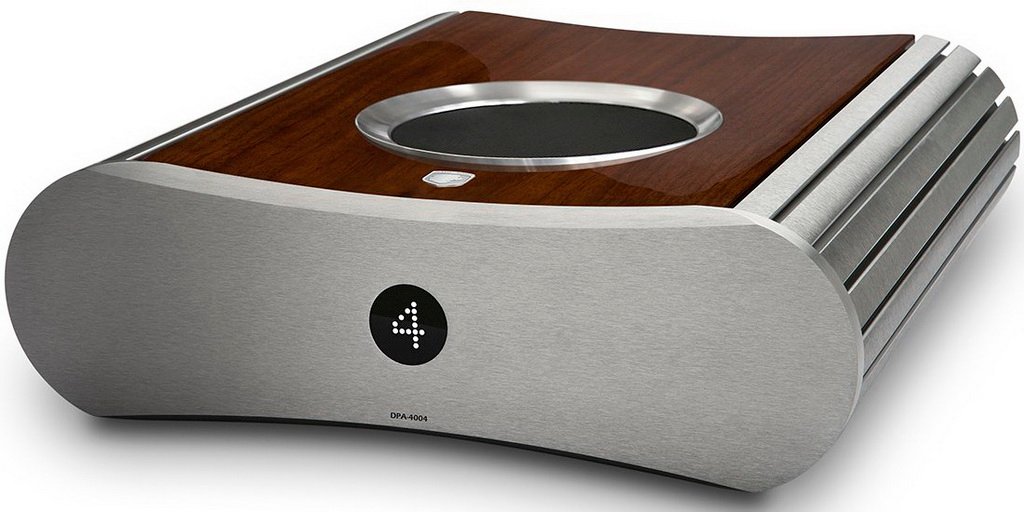

Gato Audio DPA-4004: Flexible four-channel amplifier

The Gato Audio DPA-4004 four-channel amplifier is a flexible solution that offers many options for combining the number of channels and output power. A special feature of the amplifier is the use of modern technology for constructing Class-D output stages, which, in combination with bridge connection of channels, makes it possible to obtain high output power in such a compact and elegant package.

The Gato Audio DPA-4004 power amplifier produces at least 4x400W at 8 ohms, and at 4 ohms the channel power doubles. Each pair of channels in the amplifier can be bridged, allowing individual power configuration for multi-channel systems or bi-amping speakers. The most obvious candidate for pairing with the DPA-4004 is the PRD-3 preamp/DAC, but the new models can also accompany the DIA-250/400 integrated amplifiers, offering more channels and channel power flexibility. In multi-channel systems, the Gato Audio DPA-4004 can be used to amplify surround processor signals, possibly in combination with a PRD-3 or DIA-250/400 in Home Theater mode.

Gato Audio DPA-4004 has a technically advanced solution in the form of Class D output stages with a separate power supply. The amplification part is built using proven International Rectifier technology, with an optimized precision high-frequency generator and PWM modulator. Fast and precise switching MOS-FET transistors with very low on-resistance ensure excellent high frequency operation with the lowest possible losses. Output filters with high-quality polypropylene capacitors and low resistance coils convert powerful PWM signals back into detailed and smooth analogue sound.

Configuration options (at 8 Ohm load)

4-channel: 4x 400W
2-channel: 2x 1400W
3-channel: 1x 1400W + 2x 400W

Gato Audio DPA-4004 specifications

Output power (at 8Ω): 4x 400W / 2x 800W / 1x 800 W + 2x 400W
Output power (at 4Ω): 4x 800W / 2x 1600W / 1x 1600W + 2x 800W
Frequency response: 20 Hz – 20 kHz ± 0.5 dB
2 Hz – 70 kHz ± 3 dB
THD: < 0.01%
S/N ratio noise: > 110 dB
Input impedance: 20 kΩ RCA or 40 kΩ (balanced)
Gain: 26 dB
Recommended load impedance: SE 4 -16 Ω, BTL 8 -16 Ω
Switching
Balanced analog inputs: 2 pairs of gold-plated XLR (Neutrik)
Unbalanced analog inputs: 2 pairs of gold-plated RCA (Stereo)
Acoustic outputs: 4 pairs of gold-plated terminals (safety banana)
Trigger, 12 V: 1 mini jack
Dimensions and power supply
Power requirements: 115 VAC / 230 VAC, 50 Hz / 60 Hz
Power consumption: Standby <1 W, Idle < 75 W, Max. < 2000 W
Dimensions (WxHxD): 325 x 105 x 420 mm /12.8 x 4.1 x 16.5 “
Weight: 13 kg
