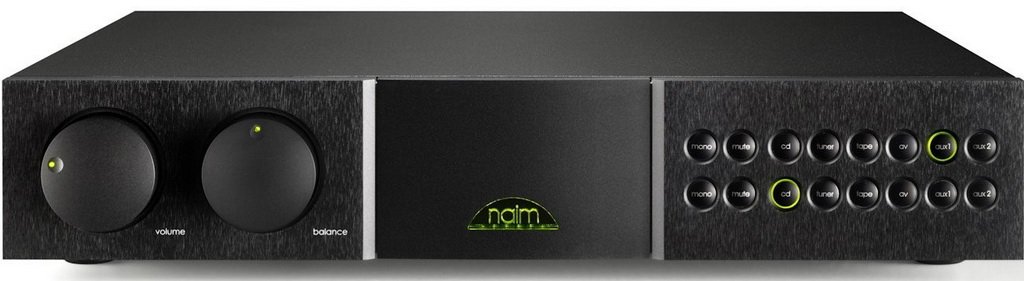

Naim NAC 252: Based on one of the finest preamplifiers ever made

The NAC 252 from Naim is built upon the legendary NAC 52, known as one of the top preamplifiers in history.It offers vastly expanded control and connectivity options, as well as significant improvements in design, fit and finish, and years of research and development have also improved the acoustics, making the sound faster, more detailed, more transparent and more musical.

The Naim NAC 252 involved exploring many different circuit designs and completely rethinking the topology and components used in them. Thousands of hours spent listening to different designs ensures that Naim audio products always maintain the marriage of music and technology. Precision rotary potentiometers with precious metal blades maintain musical integrity and ensure long-term stability. Ten independently regulated power supplies are fed by a matched SuperCap power supply. Separate regulated supplies for the digital control and relay sections ensure that there is no noise generated by these circuits.

The Naim NAC 252 combines accurate, musical and faithful reproduction with increased versatility, ensuring that this preamplifier can serve as the heart of high-quality audio systems for many years to come.

In addition to the traditional DIN inputs (which provide better sound and are better immune to interference), the Naim NAC 252 has two configurable RCA inputs for use with alternative components and cables. A separate configurable unity gain input is provided for use with AV receivers etc.

Each of the six inputs has separate listening and recording functions. In addition to the usual muting function, the NAC 252 mutes not only the output itself but also all associated circuitry, thus eliminating the possibility of adversely affecting the main output.

Naim NAC 252 Features

Six line-level inputs, including two configurable DIN/RCA inputs
Configurable AV
input Powered input for use with StageLine or Prefix phono stages
Full-featured infrared remote control
RC5 input for wired remote control in multi-room installations
Optional RS-232 input/output for use with smart home systems
Naim SuperCap power supply provides each of the ten audio stages with independent, regulated power
Independently regulated power supplies for digital control and relay circuits

Naim NAC 252 Specifications

Input Impedance 47kOhms
Sensitivity (dB) 75mV
RC5 Remote
Control Optional SuperCap PSU

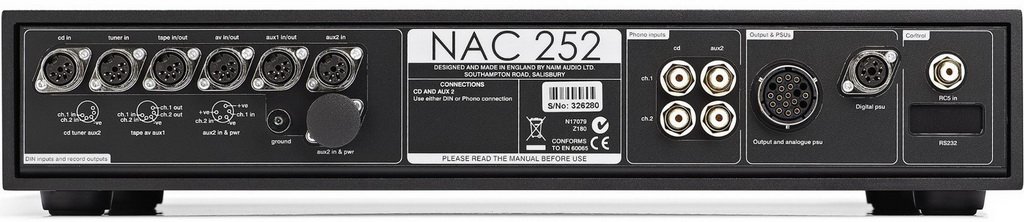

Connections Input
Analogue Audio 2 x RCA, 7 x 5DIN
Others 1 x RCA (RC5), (RS232 optional)
Connections Output
Analogue Audio 1 x 5DIN, 1 x Burndy
Dimensions, mm 87 x 432 x 314
Weight, kg 7
