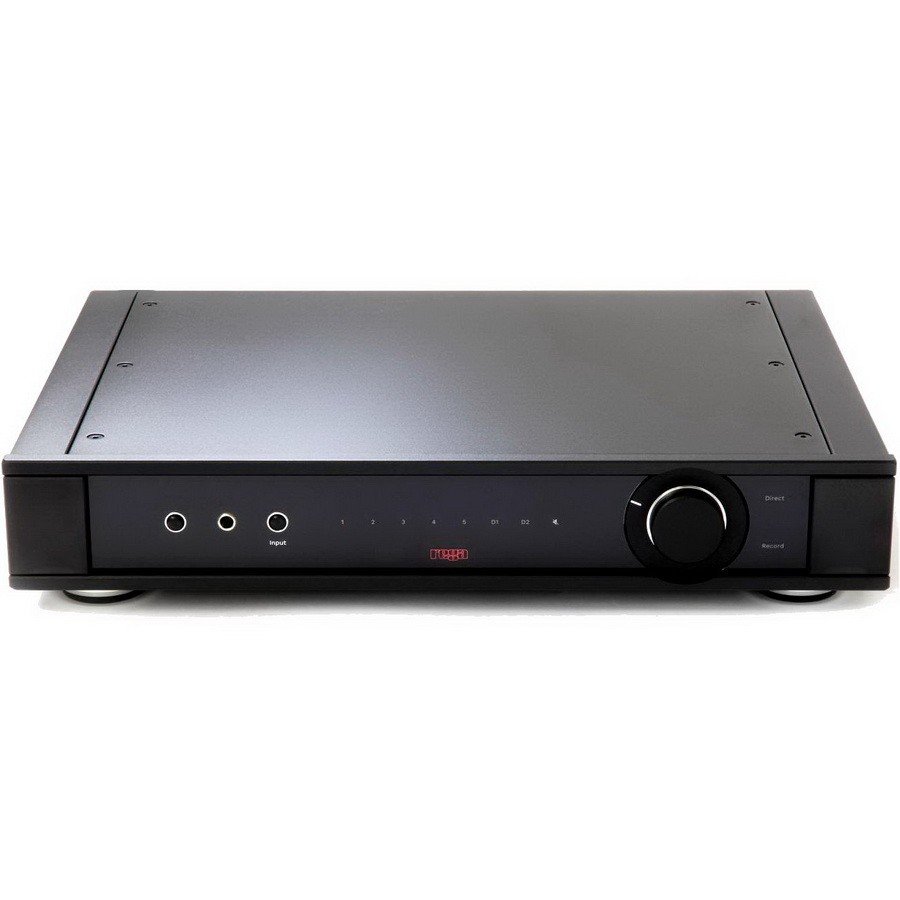

Rega Elex MK4: Classic high-quality integrated stereo amplifier

The Rega Elex MK4 is a high-quality integrated stereo amplifier designed to deliver the purest musical performance. Housed in a completely new chassis to match the rest of the Rega range, the MK4 builds on Rega’s previous designs, using a multi-award-winning Class A/B power amplifier circuit that delivers an impressive 72 watts per channel into 8 ohms (90 watts into 6 ohms).

The integrated stereo amplifier Rega Elex MK4, which has a phono corrector, is characterized by a power of 2 x 72.5 W. In the production of the presented model, the developer managed to achieve an amazing balance of high sound quality and loyal cost. A wide range of possibilities when connecting Rega Elex MK4 to various systems is provided by extensive functionality (for example, an output from the preamplifier is provided).

From the more expensive Elicit-R model, the Elex-R device inherited a powerful power supply. The design of the Rega Elex MK4 stereo amplifier allows to level out even minimal sound distortions, as well as to prevent vibrations during audio playback.

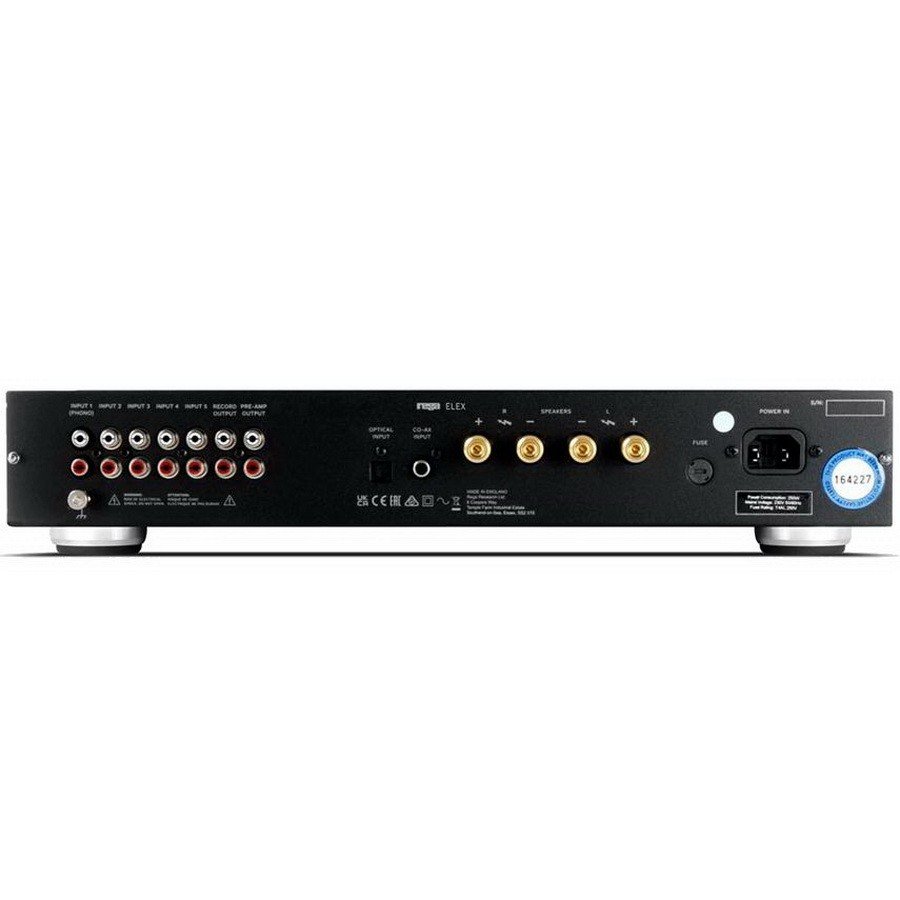

The Rega Elex MK4 now offers new rear panel connectivity, including a Rega DAC with two digital inputs and a high-quality headphone output conveniently located on the front panel. Bringing your music to life.

The Rega Elex MK4 is capable of driving complex loudspeakers with ease and integrates perfectly into any audio system, offering a wider range of connectivity options. In addition to line, digital inputs and a high-quality phono stage for MM cartridges, you will also find Pre-out and Record Out sockets along with a headphone output. Particular attention has been paid to the selection of key audio components. The design uses a discrete circuit, high-quality relays, polypropylene capacitors and Sanken output transistors.

Specifications:



• Power (8 Ohm): 2 x 72 W
• Power (6 Ohm): 2 x 90 W
• Headphone power: 2.4 V (32 Ohm)
• Frequency range: 10 Hz – 65 kHz
• Harmonic distortion factor: 0.005%
• Gain: 31.6 dB
• Input impedance: 10 kOhm
• Output voltage: 625 mV
• Sensitivity: 164 mV
• Audio DAC: 24-bit / 192 kHz
• Phono preamplifier: MM type
• Remote control: Yes
• Inputs:
  • Coaxial: 1 x S/PDIF (RCA)
  • Optical: 1 x TosLink
  • Analog audio: 5 x RCA
• Outputs:
  • Analog audio: 2 x RCA (Pre/Record)
  • Headphones: 1 x 6.3 mm
• Power consumption: 250 W
• Supply voltage: 230 V
• Dimensions (W x H x D): 432 x 82 x 340 mm
• Weight: 11 kg
