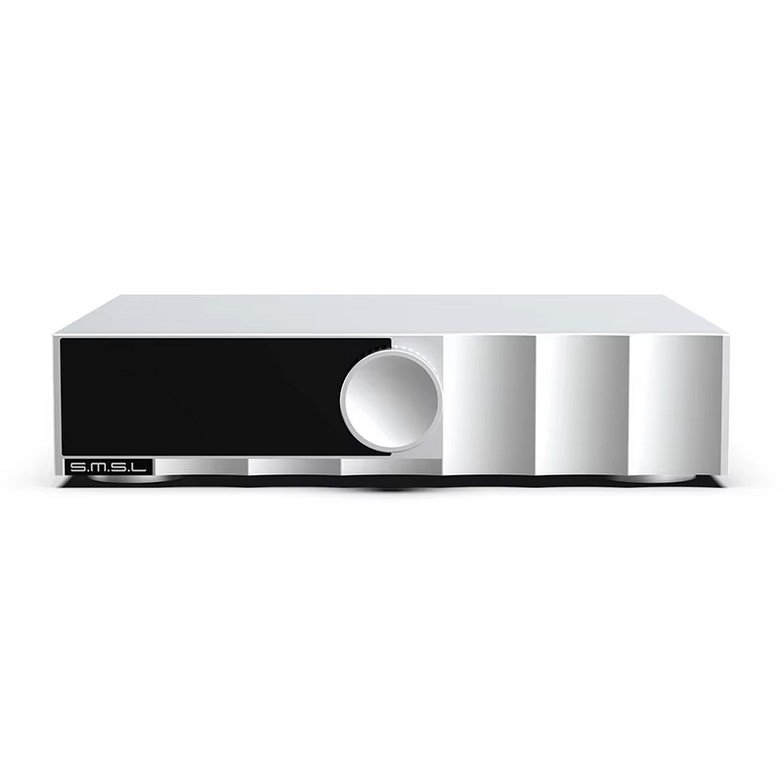

SMSL PA200: Innovative and powerful amplifier

The SMSL PA200 is an innovative amplifier that merges the capabilities of an integrated and high-performance amplifier. It can function in stereo mode with volume adjustment or in mono mode, serving as a dedicated power amplifier. This device utilizes Infineon GaN FET transistors, delivering up to 2×160 W at 4 Ohm through an RCA stereo input, or up to 1×400 W at 4 Ohm via an XLR mono input. Its construction features premium components, including a Texas Instruments PGA2311 digital volume control, a pulse power supply, and gold-plated connectors. It comes equipped with standard terminals for speaker connections, and users can control it using buttons or a remote control.

The SMSL PA200 showcases its impressive performance through the integration of GaN FET transistors. In stereo mode using the RCA input, it can output up to 2×160 W into a 4-ohm load, while in mono mode via XLR, it reaches up to 1×400 W. Remarkably, the harmonic distortion remains at just 0.003%, ensuring that the sound retains its clarity and authenticity.

Volume adjustment is available only when utilizing the stereo RCA input. In mono mode through XLR, the amplifier functions strictly as a power amplifier, lacking signal level control. This feature makes it an excellent option for setups involving two PA200 amplifiers in a dual mono configuration.

The PA200's compact design and technical specifications align seamlessly with other products in the SMSL range, including the D200 digital-to-analog converter and the PL200 CD player.





Specifications:

Device Type: Amplifier Gain
Components: Infineon GaN FET Transistors

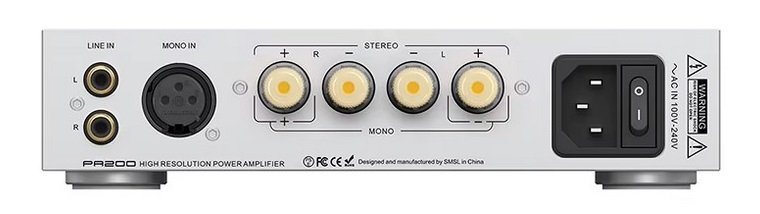

Inputs:

• 1x Stereo RCA
• 1x mono XLR

Exit:

• 1x speaker terminals

Audio parameters:

• Total Harmonic Distortion and Noise Level (THD+N): 0.003%
• Signal to Noise Ratio (SNR): 109 dB
• Channel separation: 75 dB
• Input sensitivity:
  • RCA Stereo: 0.68V RMS / 22kOhm
  • XLR mono: 2.1 V RMS / 22 kOhm

Output power:

• Stereo mode:
  • 2x 160W RMS @ 4 Ω
  • 2x 85W RMS @ 8 Ω
• Mono mode:
  • 1x 400W RMS @ 4 Ω
  • 1x 250W @ 8 Ω

General parameters:

• Power supply: 100-240V AC
• Consumption:
  • Working mode: 40 W
  • Standby: < 0.5 W
• Dimensions: 220 x 45.9 x 175 mm
• Weight: 1.44 kg

Price : $419
