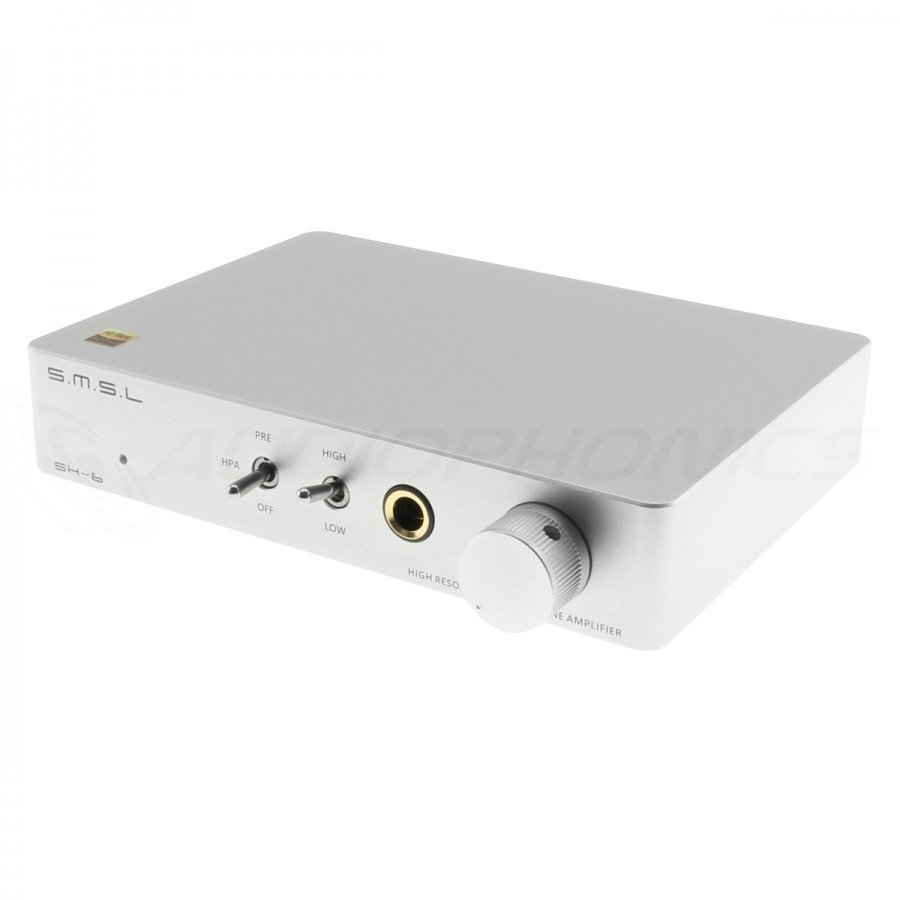

SMSL SH-6: Affordable and powerful desktop headphone amplifier

The SMSL SH-6 is a compact, affordable and powerful desktop headphone amplifier. The rugged aluminum chassis hides a variety of high-quality components to provide excellent musicality and richness of sound. The SH-6 also has a convenient power headroom, allowing it to adapt to a wide range of headphones, even high impedance ones, with an output power of 2×1.3W under a 32Ω load.

The gain control also allows you to take advantage of increased power for the most demanding headphones. When it comes to connectivity, the SH-6 is simple and efficient. It has a stereo RCA input, a 6.35mm headphone output, and an RCA pre-out.

Characteristics of SMSL SH-6:

• Product Type: Headphone Amplifier
• Input: 1x stereo RCA
• Outputs: 1x Stereo RCA Pre-out/1x Jack 6.35mm headphone output
• Output Power: 2x 2.6W @ 16 ohms/2x 1.3W @ 32 ohms
• SNR: 134 dB
• Output noise: 1.3 µV
• THD+N: -123 dB, 0.00006%% (1 kHz, 32 ohms)/-118 dB, 0.00012%% (20-20 kHz, 32 ohms, 0 dB)
• THD: -125 dB, 0.00006%
• Input impedance: 47 kOhm
• Output Impedance: Amp: about 0 ohms/pre-out: 22k ohms
• Frequency response: 20 Hz – 500 kHz (-3 dB)
• Gain: Low: 0dB/High: 15.5dB
• Consumption: 30W
• Standby consumption: 0.1W
• Dimensions: 140 x 115 x 28 mm
• Weight: 380 g
• Color: silver
