TEAC AI-303: Compact integrated amplifier

The TEAC AI-303 integrated amplifier has a compact size, which allows you to install it on a computer desk or next to a TV. The model differs from its predecessor AI-301DA-X by the presence of an HDMI ARC output and a USB type C connector for connecting portable audio sources. The circuits use selected components designed for Hi-Fi audio and allowing you to unlock the potential of Hi-Res formats. The result, according to TEAC, is a rich musical sound with excellent dynamics.

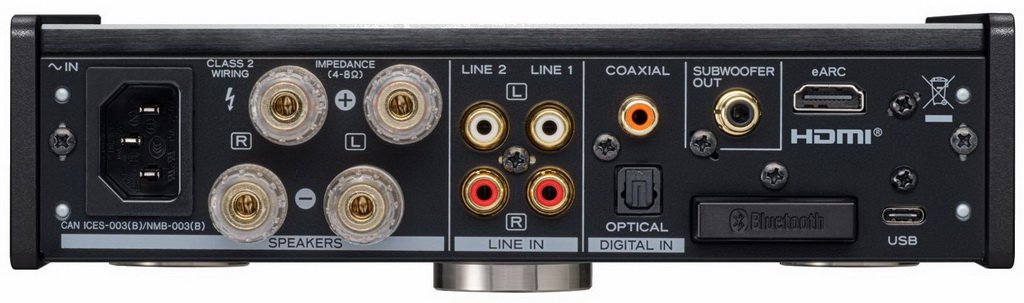

The final section of the TEAC AI-303 features a high-efficiency Class D amplifier module designed by Hypex, which helps optimize power consumption and is capable of a maximum power of 50 W per channel into 4 ohms. The model received a 32-bit DAC that supports DSD input signals up to 11.2 MHz and PCM up to 32 bit/384 kHz, as well as full MQA decoding. There is also an HDMI ARC output for connecting to a TV and, in addition, optical and coaxial S/PDIF inputs, and a pair of linear RCA inputs are used to connect analog sources. The device has a useful function, thanks to which it can automatically turn on when a digital signal appears and turn off if there is no signal for a certain period of time, which is convenient, for example, when connecting the TEAC AI-303 to a TV via an optical input.

The amplifier is equipped with a Bluetooth module with support for the aptX codec. There is also a high-quality headphone amplifier on board with CCLC (Coupling Capacitor-less Circuit) technology, which makes it possible to do without coupling capacitors in the output stage, which has a beneficial effect on the sound. CCLC delivers fast transient response and rich bass. At the same time, a power of 100 mW is guaranteed when connecting 32-ohm headphones. The model also makes it possible to enhance the low-frequency component of the audio system by connecting a subwoofer, as it has a Subwoofer Out output. Two pairs of high-quality screw terminals are used to connect speaker systems.

Traditionally for TEAC, the model is assembled in an all-metal case with excellent anti-vibration properties. The motorized volume knob and cabinet panels are made from precision machined aluminum. To control TEAC AI-303, a standard mini-remote is provided.

Characteristics TEAC AI-303

Output power 2 x 50 W (4 Ohm, 20 Hz – 20 kHz, THD: 0.1%, JEITA), 2 x 25 W (8 Ohm, 20 Hz – 20 kHz, THD: 0.1 %, JEITA)
Harmonic distortion 0.01% (1 kHz, 8 Ohm, 1 W)
Signal-to-noise ratio 95 dB (line input)
Frequency response 2 Hz – 100 kHz (- 5 dB)
Headphone amplifier power: 2 x 100 mW (32 ohms, 1 kHz, THD: 0.1%), harmonic distortion: 0.005%
Bluetooth version 4.2 + EDR, profiles: LDAC, LHDC, Qualcomm® aptX™ HD audio, Qualcomm® aptX™ audio, AAC, SBC
Inputs 2 x Linear RCA, HDMI EARC, Optical (PCM up to 24bit/96kHz), Coaxial (PCM up to 24bit/192kHz), USB Type C
Outputs 6.3mm headphone jack, RCA subwoofer
Supported sample rates: LPCM 32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192 kHz, 16 / 24 bit, DSD 2.8 MHz (DoP 176.4 kHz / 24 bit)
Power consumption 38 W
Output on AC 2 pairs of screw terminals
Acceptable impedance AC 4-8 Ohm
Remote control
Dimensions (WxHxD) 215x61x254 mm
Weight 2.3 kg
