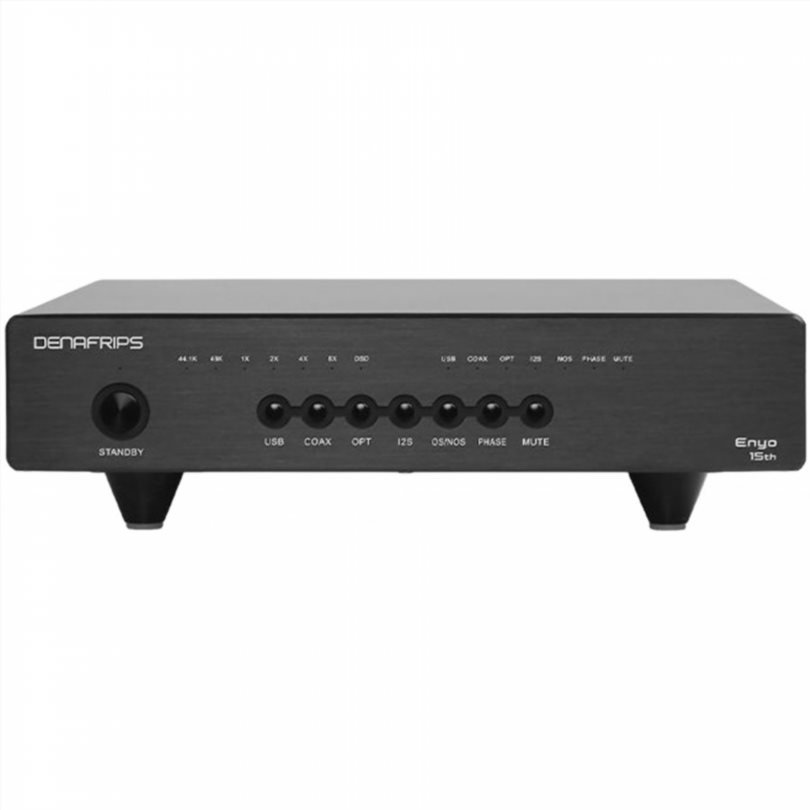

Denafrips Enyo 15TH: Balanced R2R DAC

Denafrips Enyo 15TH is a R2R digital-to-analog converter that supports high-resolution audio streams up to PCM 24bit 1536kHz and DSD1024. R2R technology allows Enyo to provide natural, authentic and musical sound reproduction.

To achieve a high-performance R2R DAC, the Denafrips Enyo 15TH uses a network of ultra-precise resistors. Each resistor is carefully measured and selected by machine and tested by humans.

Characteristics of Denafrips Enyo 15TH:

• Product Type: Balanced R2R DAC

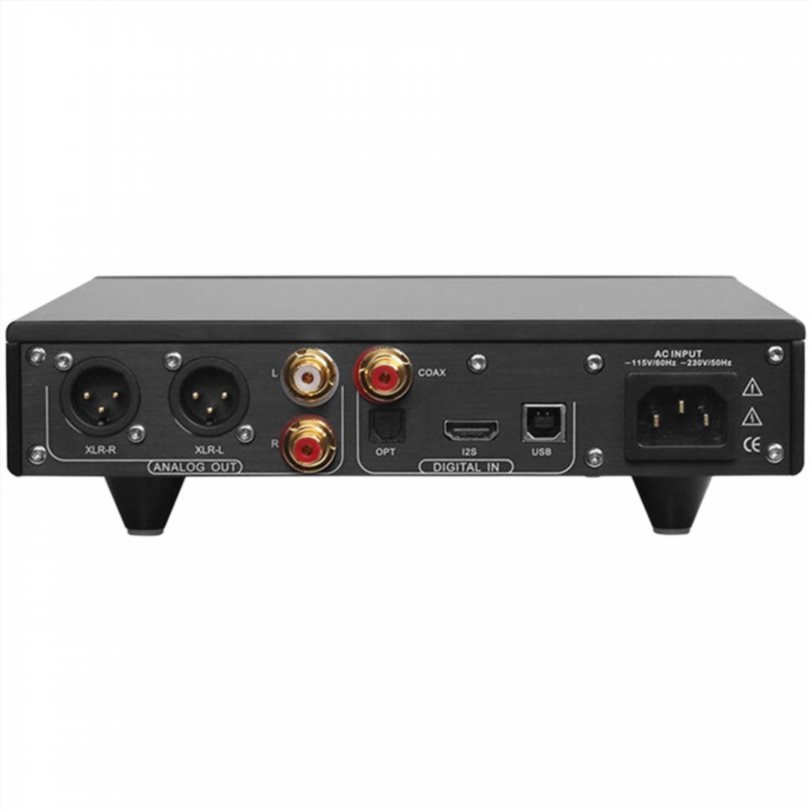

• Inputs: 1x coaxial/1x optical Toslink/1x USB-B/1x I2S
• Outputs: 1x single-ended stereo RCA/1x balanced stereo XLR
• Supported sampling rates: USB: PCM up to 1536 kHz, DSD up to DSD1024 / Optical / Coaxial: PCM up to 24-bit 192 kHz, DSD up to DSD64 (DoP)
• Sampling rate modes: Non onversampling (NOS)/Oversampling (OS)
• Output impedances/levels: RCA: 625 Ohms @ 2Vrms/XLR: 1250 Ohms @ 4Vrms
• Filters: slow/sharp
• Frequency response: 20Hz – 70Hz (-3dB)
• THD+N: 0.004%
• SNR: 115 dB
• Dynamic range: > 119 dB
• Crosstalk: -124 dB
• Power voltage: 100-240V AC 50/60Hz (selectable voltage)
• Consumption: ≤ 20 W
• Black color
• Dimensions: 230 x 215 x 45 mm
