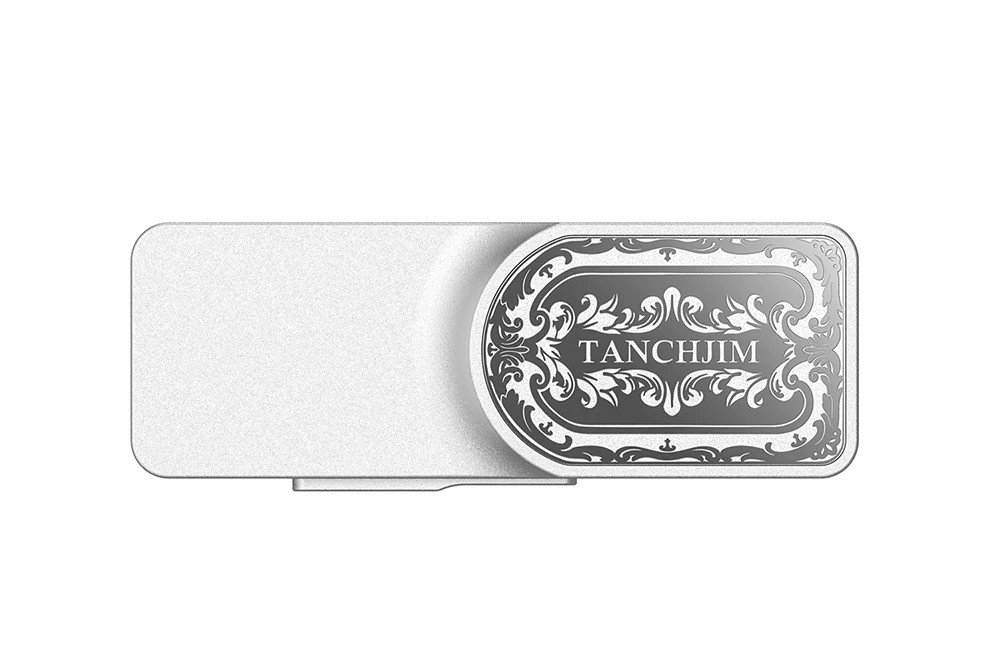

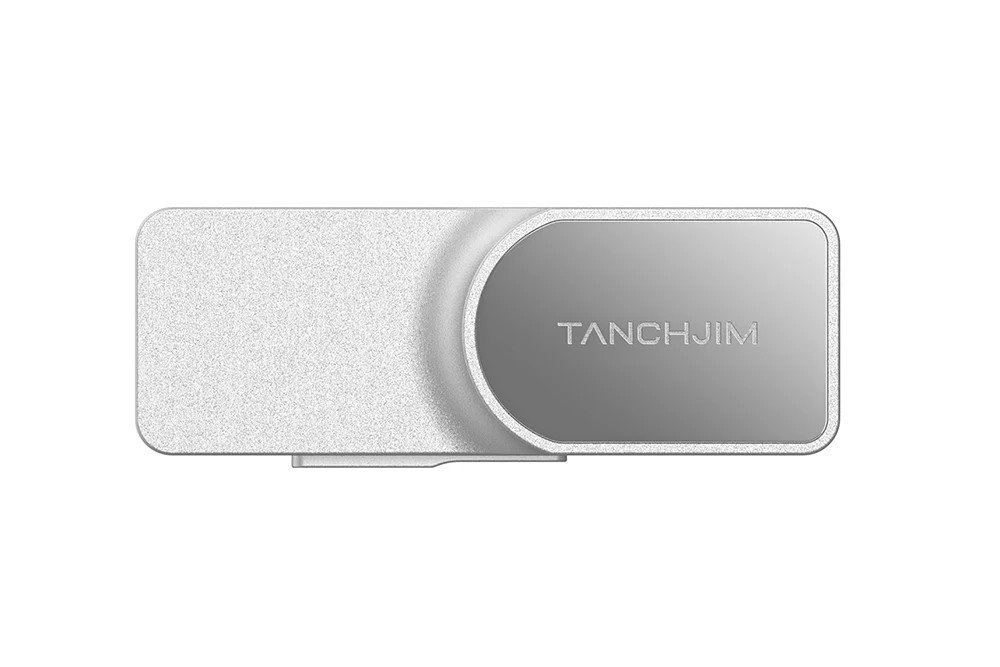

Tanchjim Luna: DAC/Headphone amp boasting 2 CS43198 chips from Cirrus Logic

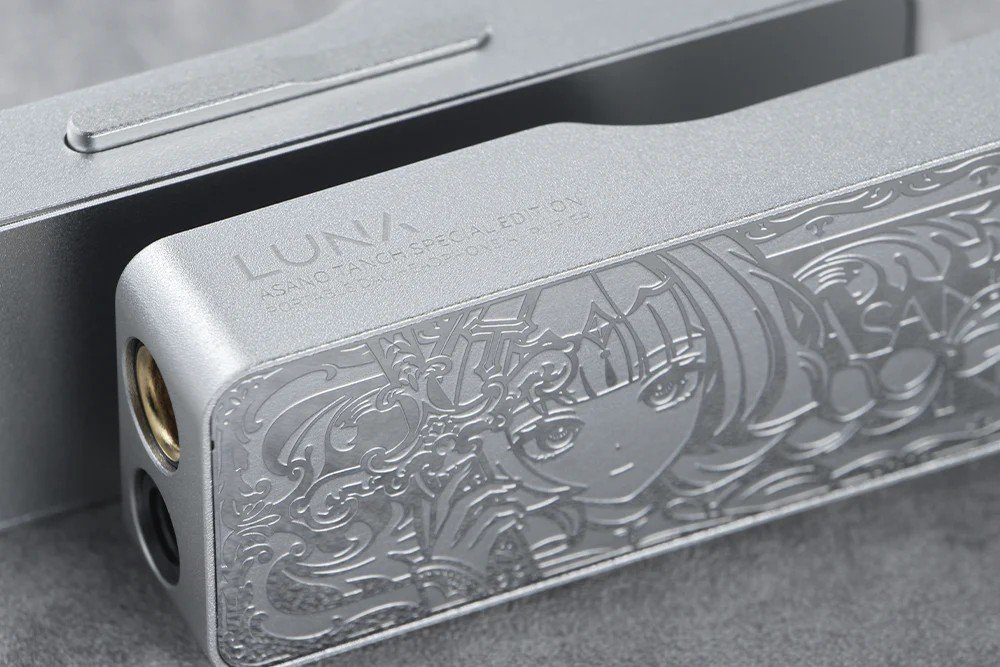

The TANCHJIM Luna is an innovative DAC and headphone amplifier that utilizes two CS43198 chips from Cirrus Logic. It is offered in both a standard model and an Asano version, which features artistic graphics on its casing. The Tanchjim Luna features dual CS43198 DAC chips that provide exceptional audio quality, along with individual amplifiers for each channel. It boasts an impressive signal-to-noise ratio of 132 dB and a minimal distortion rate of just 0.000139%, placing it on par with the leading models available today.

The device is accompanied by a cable constructed from a single-crystal copper core with a silver coating. This cable includes distinct shielding for both the digital and power lines, adhering to USB 2.0 standards, which enhances data transmission and offers superior protection against interference compared to unshielded alternatives. Additionally, Luna ensures accurate and nearly lossless volume control by decoupling the device's volume from the output signal level, thereby enhancing overall performance and enabling smooth adjustments.

The device features both a 3.5mm single-ended output and a 4.4mm balanced output, delivering exceptional performance through each option. Constructed from durable aircraft-grade aluminum using CNC technology, the Tanchjim Luna showcases a refined and minimalist aesthetic with smooth contours. It supports audio decoding up to 32-bit/768kHz and DSD256, ensuring pristine sound quality that captures the intricate details of musical compositions. The Luna is equipped with a detachable Type-C cable, making it compatible with a wide range of devices, including Android smartphones, iPhones, iPads, and PCs. For enhanced functionality, users can download drivers from the official Tanchjim website for PC use. Additionally, the Tanchjim app on Android allows for personalized adjustments to device settings. The Luna also offers the flexibility to switch between Class AB and Class H gain, enabling users to choose the most suitable DAC mode. With a remarkable dynamic range of 132.5 dB and a signal-to-noise ratio of 132 dB, the device exemplifies outstanding performance, attributed to its premium materials and sophisticated circuit design, as verified by the Tanchjim development team's measurements.

Features:

• DAC: CS43198 x 2
• Outputs: 3.5mm + 4.4mm
• Input: USB Type-C
• Frequency range: 8 Hz – 80 kHz
• Noise level: 1.3 µV (balanced), 1 µV (unbalanced)
• Dynamic Range: 132 dB (balanced), 127 dB (unbalanced) (AES17 20 kHz, AWT)
• Signal to Noise Ratio (SNR): 132 dB (balanced) (AES17 20 kHz, AWT)
• Total Harmonic Distortion (THD+N): 0.000139% (balanced)
• Output Power: 175mW @ 16Ω, 285mW @ 32Ω, 54mW @ 300Ω (balanced)
