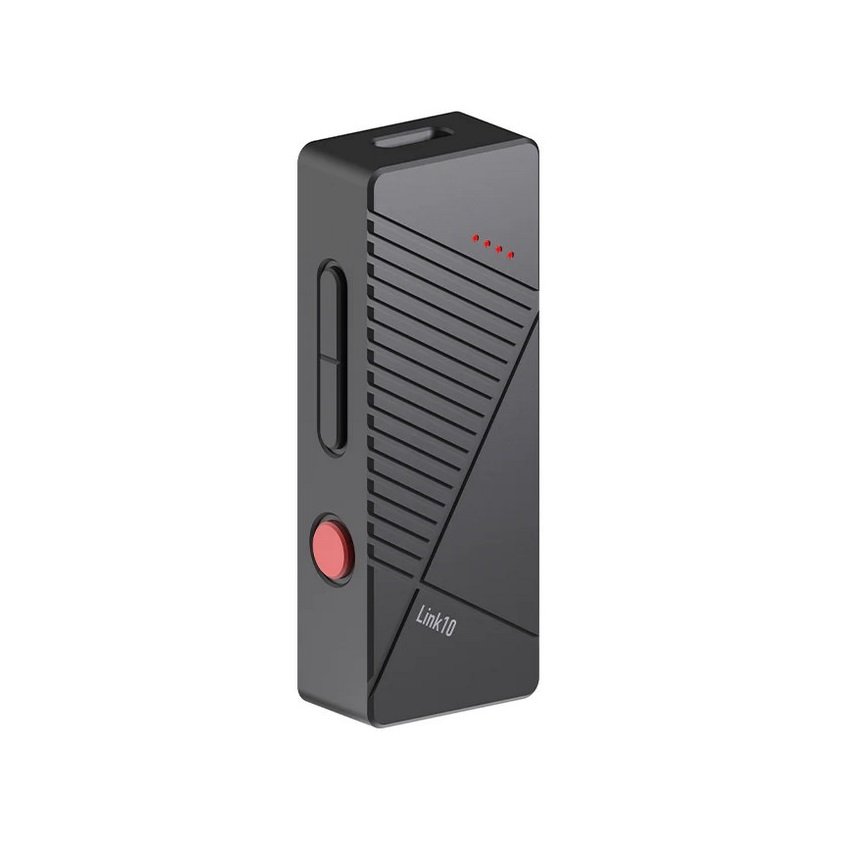

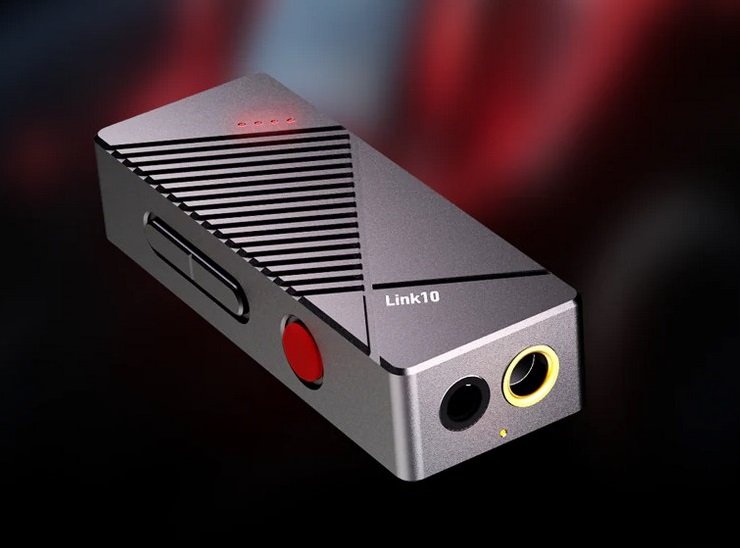

xDuoo Link10: Dual DAC Smartphone Amp Delivers 300mW Power in a 25g Aluminum Body

xDuoo Link10 is a new compact DAC and headphone amplifier designed for smartphones, computers, tablets and game consoles. The device is built on two CS43131 DAC chips, providing a high level of detail and minimal distortion. It supports PCM playback up to 32 bit / 384 kHz and DSD256, and with an output power of up to 300 mW, Link10 copes with both low-impedance and tight headphones.

Digital volume control with 60 levels allows you to precisely adjust the level for specific headphones. The device is equipped with two outputs – 3.5 mm and 4.4 mm, as well as support for two USB modes (UAC 1.0 and 2.0), which makes it compatible with both audio players and PCs, as well as Switch and PS consoles. The case is made of aluminum, weighs only 25 g, power is supplied from the connected device without a built-in battery.

xDuoo Link10 Specifications:

• Output Power: 250mW@32 Ohm / 300mW@32 Ohm (balanced)
• Power into 150 Ohms: 70 mW / 270 mW (balanced)
• Dynamic Range: ≥126dB / ≥130dB (balanced)
• Total Harmonic Distortion: 106dB@1kHz / 108dB@1kHz (balanced)
• Channel Separation: ≥75dB / ≥112dB (balanced)
• Frequency range: 20 Hz – 20 kHz (±0.5 dB)
• DAC: Dual CS43131
• Outputs: 3.5mm / 4.4mm
• Dimensions: 6.0 x 2.3 x 1.3 cm
• Weight: 25 g
• Body material: aluminum alloy
• Features: Removable USB cable / UAC1.0 and UAC2.0 support / Battery-free power supply

Price : $99
