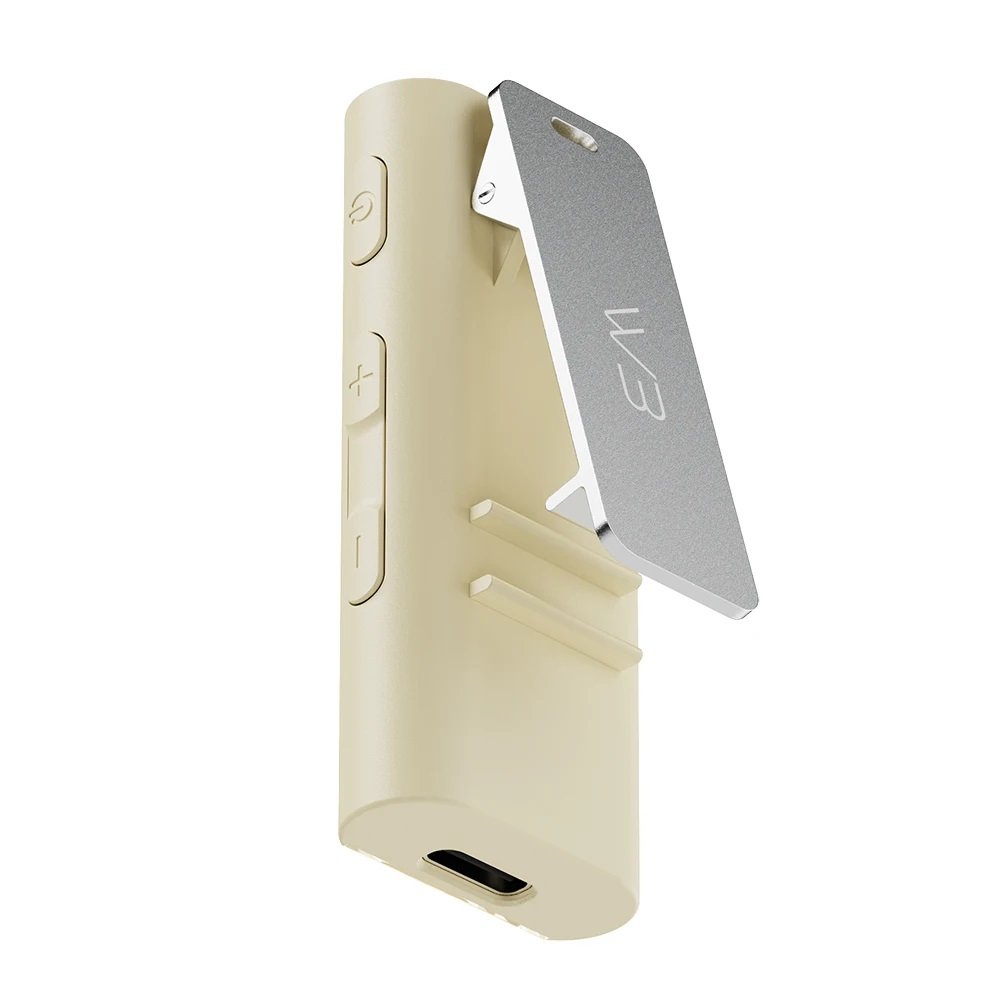

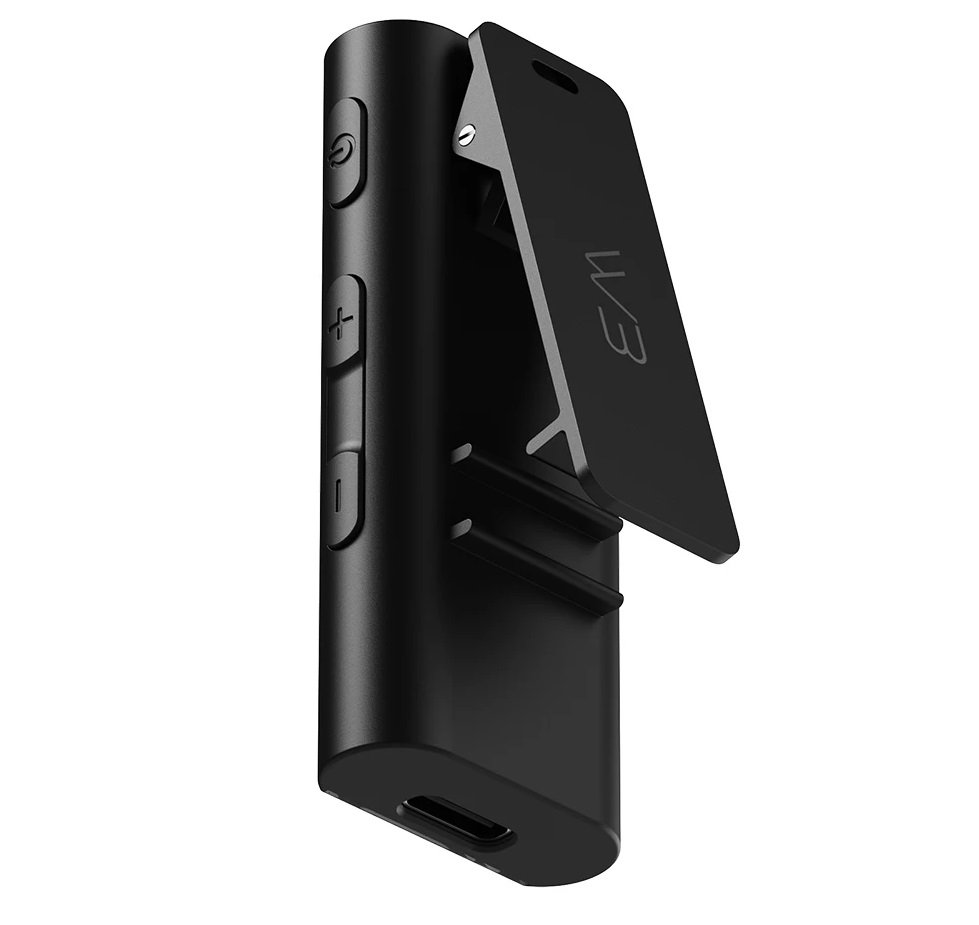

HiBy W3 II: Bluetooth DAC/headphone amplifier based on CS43131

HiBy W3 II is the second version of the portable DAC/amplifier with Bluetooth. The DAC chip used was the CS43131, popular in the low-cost segment.

Characteristics of HiBy W3 II:

• Colours: Living Yellow, Classic Black
• Bluetooth SoC: QCC5125
• DAC: CS43131
• Bluetooth version: Bluetooth 5.2
• BT codecs supported: UAT/LDAC/aptX/aptXHD/SBC/AAC
• BT range: 10m
• Control: Button with voice prompts
• Status LEDs: Red, Blue, Green, White
• Microphone input: Supported
• NFC: Supported
• Headset jack: 5.5mm CTIA headphone/headset jack
• Battery capacity: 320 mAh
• Battery life: 10.5 hours (continuous playback on AAC codec),
• Weight: 19.8 g
• Dimensions: 57mm*25mm*16mm (including clip)

Price : $49
