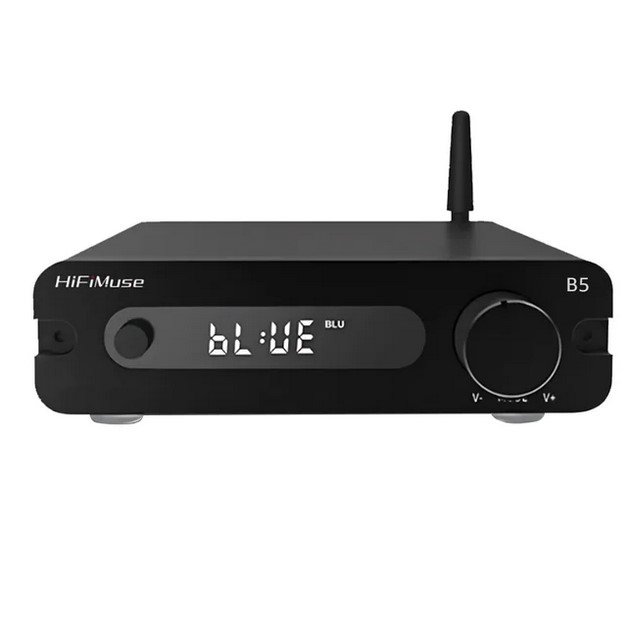

HiFiMuse B5: Compact amplifier with a built-in DAC and wireless connection support

HiFiMuse B5 is a new compact amplifier with a built-in DAC and wireless connection support, designed specifically for desktop audio systems. The model received a digital-to-analog converter ESS9018K2M, thanks to which the device correctly processes digital signals from optical and coaxial inputs with a resolution of up to 192 kHz/32 bit.

The amplifier stage is built on two TPA3116 chips, each responsible for a separate channel, which provides an output power of up to 150 W per channel and allows you to easily connect even large shelf acoustic systems with 6-8 inch speakers.

HiFiMuse B5 is equipped with Bluetooth 5.0 with an ATS2825 decoding chip, which effectively suppresses noise and echo, ensuring stable signal transmission with minimal loss of quality. It is also possible to connect USB drives to play audio files directly, without additional devices.

The volume is adjusted using a precise rotary knob, which also serves to switch operating modes when pressed. On the front panel there is a clear and concise display showing the current operating mode of the device.

The amplifier can be easily connected to various sound sources: TVs, smartphones, tablets, laptops, CD players and computers thanks to a wide range of inputs – USB, optical, coaxial and RCA. Thanks to its compact size and strict design, HiFiMuse B5 will fit organically into any desktop audio system at home or in the office.

HiFiMuse B5 Features:

• Functions: Bluetooth 5.0 / Optical and coaxial input / USB storage playback / Computer decoding / AUX 3.5mm
• Settings: potentiometer / volume control via remote control / bass and treble adjustment / USB source selection / standby mode
• Optical and coaxial decoding chip: ESS9018K2M
• Digital to Analog Converter Chip: ESS9018K2M
• Bluetooth and USB decoding chip: ATS2825
• Supported formats from USB: WAV / APE / FLAC / MP3
• Amplifier: TPA3116x2
• Optical and coaxial input: up to 32 bit / 192 kHz
• Sampling rate for USB and Bluetooth: 16 bit / 48 kHz
• Output power: 150W x2
• Output power at different voltage: 19V (8 Ohm – 32W, 4 Ohm – more than 45+45W) / 24V (8 Ohm – 38W, 4 Ohm – more than 55+55W)
• Power adapter: 24V/3A
• Total Harmonic Distortion: 0.001%
• Signal to noise ratio: 92 dB
• Frequency range: 15 Hz – 25 kHz
• Input sensitivity: 500 mV
• Power supply range: 12-24V
• Dimensions: 110x135x30 mm
• Color: black
