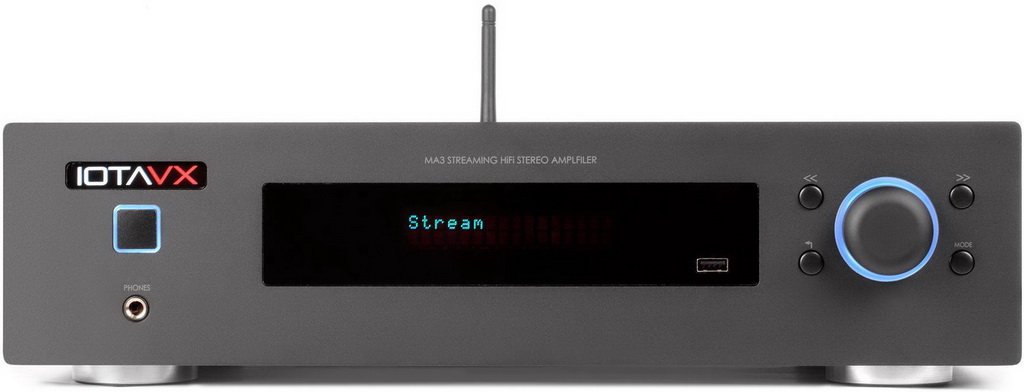

IOTAVX MA3: Award-winning amplifier/network player

IOTAVX MA3 2-channel amplifier/network player with 2 x 50W (8 ohms) output power and volume control provides audio streaming, supports Linkplay multiroom, Airplay, DLNA, Internet radio (vTuner), Spotify, TIDAL, Napster, Qobuz, Deezer works with the Linkplay app and IOS and Android devices.

Connection: wireless via Wi-Fi (2.4 G and 5 G) and Bluetooth (5.0, AptX, AptX HD and AAC codecs, antenna included) and wired to a local network (LAN).

You can connect almost any source for playback to IOTAVX MA3 – both analog and digital. A set of connectors for connection: two analog stereo line-level inputs and a switchable (MM/MC) stereo phono input, coaxial and optical digital inputs, USB connector (type A) on the front panel for reading discs/flash drives), LAN; 6.3 mm stereo headphone output, three RCA outputs (analog stereo line level output, analog stereo preamp output, subwoofer output), 12 V trigger output. Frequency range of the device: 20 Hz – 20 kHz; SOI <0.02%. Amplifier housing dimensions: 430 x 115 x 300 mm; The delivery set includes a remote control.

Features of IOTAVX MA3

DAC ES9018K2M Saber – 32-bit HyperStreamTM architecture can process up to 32-bit PCM data at up to 384 kHz (I2S) and DSD-11.2 MHz (in mono mode for maximum performance applications)
Supports synchronous mode and ASRC (Asynchronous Sample Rate Conversion) mode;
Supports WiFi 2.4 GHz and 5 GHz, Bluetooth 5.0 (aptX, aptX HD and AAC, antenna included);
LinkPlay multiroom support;
Airplay2 support; DLNA, Internet radio (vTuner), Spotify, TIDAL, Napster, Qobuz, Deezer;
LinkPlay app; IOS/Android support;
Rated output power no less than 2 x 51 W (8 Ohm)
Gain class – AB
Dumping factor > 200 / 8 Ohm
Frequency range +/- 0.5 dB no narrower: 10 Hz – 40 kHz;
SOI (THD+N) 1 watt / 8 Ohm < 0.013%
Mains power supply: 220 V, 50 Hz
Power consumption up to 300 W
Dimensions (WxHxD): 430 x 115 x 300 mm
Weight and packaged dimensions (WxHxD): 530 x 260 x 450mm / 10kg

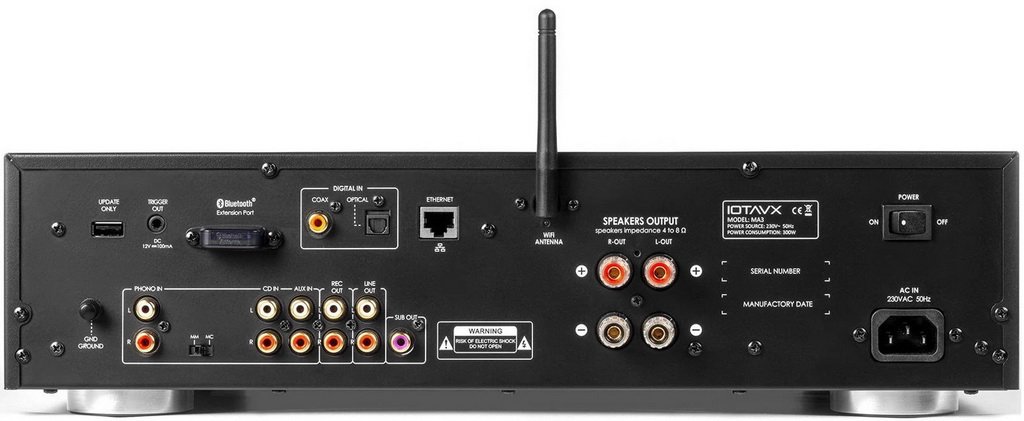

Inputs:

2 x RCA – analog linear stereo (CD, Aux);
1 x RCA – stereo phono stage (switchable MM/MC);
1 x digital coaxial (S/PDIF), up to 24/192 PCM;
1 x digital optical (Toslink), up to 24/96, up to 24/192 PCM with high-quality optical cable;
1 x USB-A on the front panel (for disks/flash drives); supported formats: FLAC, WAV, AIFF, MP3;
1 x LAN connector

Outputs:

1 x 6.3 mm stereo headphone (on the front panel);
1 x RCA – analog stereo linear;
1 x RCA – analog stereo adjustable for preamp;
1 x RCA – adjustable subwoofer output;
1 x trigger output (12V)
