Klipsch Heritage Headphone Amp: A versatile and highly capable headphone amplifier

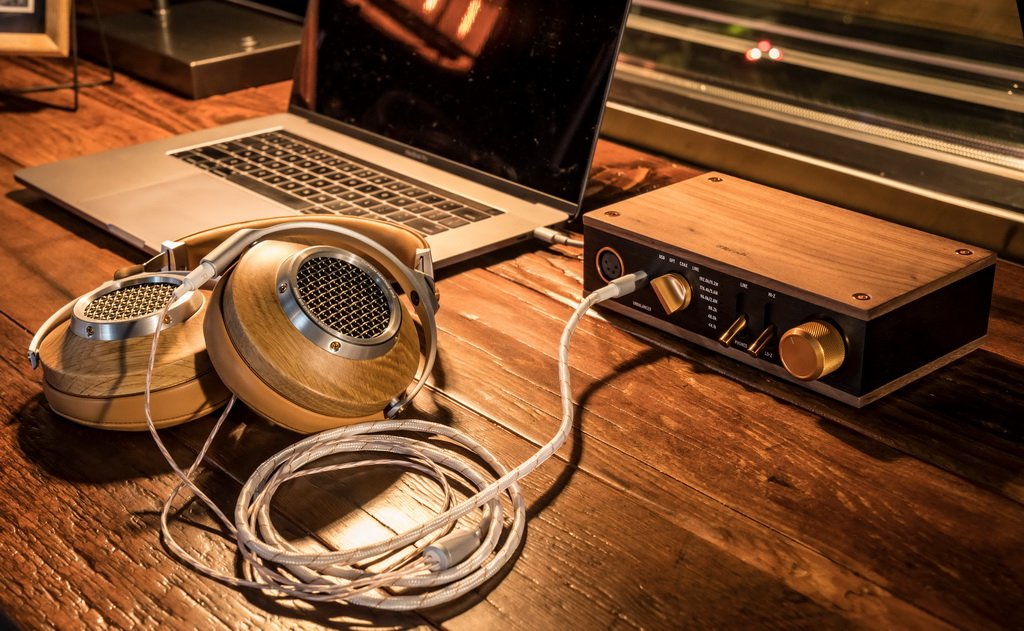

The Klipsch Heritage Headphone Amplifier serves as a versatile headphone amplifier, integrating the capabilities of a contemporary DAC with a USB input and functioning as a preamplifier. Housed in a sleek aluminum chassis with a black anodized finish, the device features upper and lower panels crafted from MDF and adorned with natural wood veneer. Its retro design highlights its connection to the esteemed historical series of Klipsch models. The controls, made from copper, consist of mechanical switches and a volume regulator, with relay-based switching strategically positioned to reduce signal path length.

The amplifier utilizes a 32-bit ESS DAC featuring HyperStream technology, capable of processing digital signals with specifications up to 24 bit / 192 kHz (PCM) and DSD rates of 2.8 / 5.6 / 11.2 MHz. The Klipsch Heritage Headphone Amplifier includes a USB input through an XMOS interface, along with optical, coaxial, and analog inputs. Its headphone amplifier circuit is designed with two specialized microchips, allowing for a four-channel configuration that supports both standard and balanced connections.

Consequently, the front panel is equipped with two headphone jacks: a 6.3 mm Jack and an XLR connector. Additionally, the Klipsch Heritage Headphone Amplifier features an RCA analog output that can function in either fixed or adjustable signal level modes, enabling direct connections to power amplifiers or active speakers.

The Klipsch Heritage Headphone Amplifier's front panel is equipped with LED indicators that display the parameters of the incoming digital signal. This amplifier is suitable for use with any headphones that have standard impedance values, making it an ideal choice for a compact office or desktop stereo setup.

Delivering a neutral and dynamic sound profile with minimal noise and distortion, the Klipsch Heritage Headphone Amplifier is well-suited for enjoying music across all genres.

Klipsch Heritage Headphone Amplifier Specifications

• Amplifier 2 x TI TPA6120A2
• DAC ESS Sabre32 ES9018K2M
• USB converter XMOS
• Amplifier Power 525 mW (16 Ohm, XLR-4), 810 mW (16 Ohm, unbalanced), 270 mW (600 Ohm, XLR-4), 68 mW (600 Ohm,
• unbalanced)
• Frequency Response 20 Hz – 40 kHz (-0.1 dB)
• Total Harmonic Distortion Less than 0.009%
• Signal-to-Noise Ratio 118 dB
• Crosstalk -75 dB (balanced), -60 dB (unbalanced)
• Gain 0 dB / 10 dB
• Input Signal Parameters Up to 24-bit / 192 kHz (PCM), Up to 11.2 MHz (DSD)
• Inputs USB, optical, coaxial, analog
• Outputs balanced XLR-4, unbalanced 6.25 mm, RCA analog (adjustable/fixed)
• Material top and bottom – MDF with natural wood trim, body – aluminum
• Dimensions (W x H x D) 200 x 58 x 145 mm
• Weight 0.7 kg
