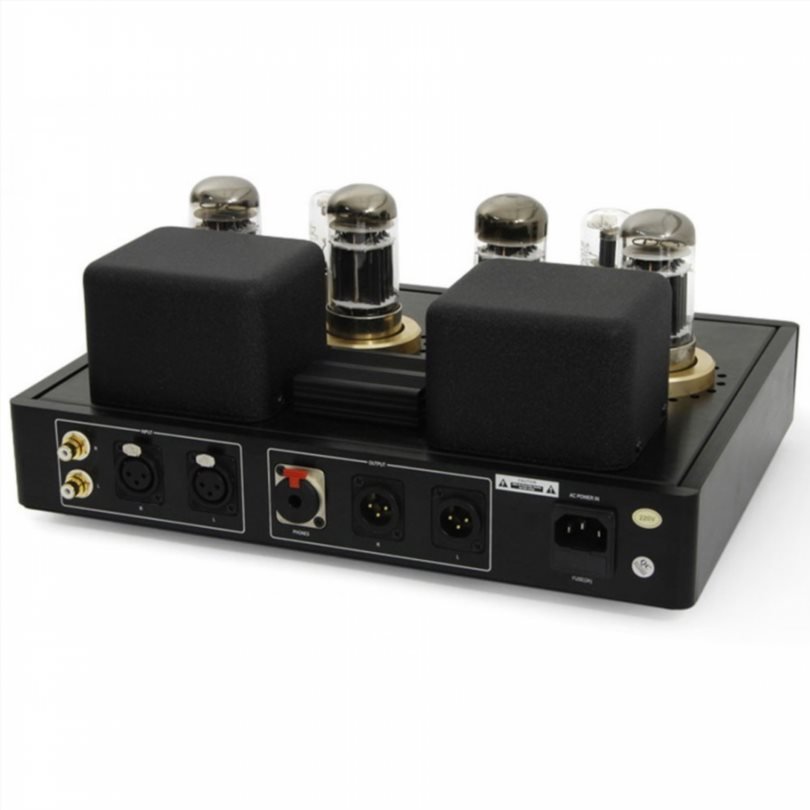

Little Dot MK6+: Flagship headphone amplifier/preamp

The fully balanced Little Dot MK VI+ architecture has exceptional dynamic range and can reproduce clean 70Vp-p amplitudes into 120 ohms! Balanced Class A SEPP (single-ended push pull) OCL (output capacitor-less) circuit topology delivers rich tone and clean power for maximum dynamics and low-frequency impact.

Characteristics of Little Dot MK6+:

• Available in black or silver
• Fully balanced architecture
• SEPP (Single-ended Push Pull) OCL (Output CapacitorLess) in class A
• Active cooling with 2 fans
• Bulbs: 2x 6H9C
• Power tubes: 4x 6080WC
• Inputs:
• Balanced: 2x 3-pin XLR
• Single sided: 2x RCA
• Outputs:
• Balanced: 4-pin XLR
• Balanced Preamp: 2x 3-pin XLR
• Single-sided: 1/4″ (6.35 mm) TRS stereo jack
• Frequency Response: Input Impedance: 50K Ohms
• 5 Hz – 80 KHz (-3 dB)
• 10 Hz – 30 KHz (-1 dB)
• Preamp output impedance: 600 ohms
• THD+N:Output Power:
• 0.02% (2Vrms @ 1000Hz)
• 0.06% (10Vrms @ 1000Hz)
• 0.3% (20Vrms @ 1000Hz)
• 5 W per channel into 120 ohm load
• Power consumption: 25 VA
• Little Dot One Year Official Warranty
