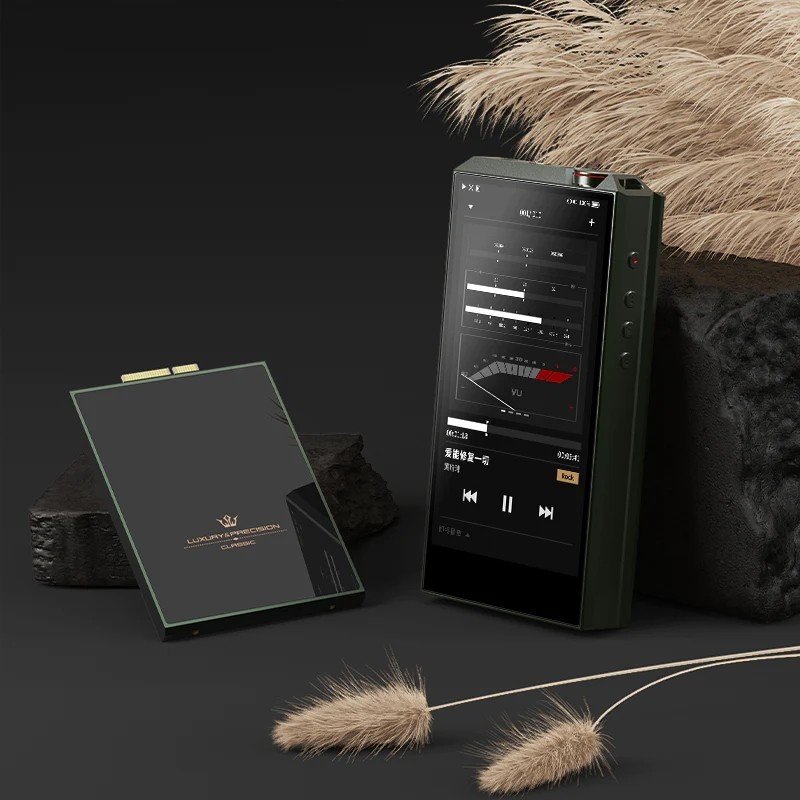

Luxury & Precision E7: High-end player unveiled

Luxury & Precision E7 is a new high-end player based on two AK4497 chips. It is stated that this is the last batch of these chips in the world. L&P E7 is available in two versions – Standard and Exclusive. The new product is notable for its modular design.

One machine with endless possibilities
Discontinued ICs, dual AK4497 unleash the full potential of a flagship DAC; Large surface area, limitless capabilities of the industry's largest plug-in analog PCBA module; Not Android – a completely new LP OS with a more powerful MCU.

The new DAP is made possible by using the world's latest batch of AK4497 DAC
The AK4497 is a voltage type DAC and not a current type DAC like the AK4499 and therefore does not require additional I/V conversion. It is more suitable for portable DACs. With the right design, we can optimize its full potential. In terms of actual performance, the DAC using the AK4497 outperforms the AK4499 based DAC in every aspect.

Specifications of Luxury & Precision E7:
Color: black-green
Size: 71 x 133 x 20mm
Weight: 300g
Display: 5 inches (1080*1920)
DAC AK4497 * 2
Clock DAC Ultra-low phase noise -160dB OSC *2
TF card: theoretically supports up to 1 TB
Battery type: lithium polymer battery
Battery capacity 4700 mA/h
Power supply DC 5v 2a
Battery life and testing conditions

• 3.5mm Po output：＞8h
• 4.4mm Po output：＞5h
• Screen is off; WAV 48kHz/24bit; vol: 70; load: 32Ω

Recommended headset impedance: 8-300 ohms
Equalizer: 10-band equalizer (±12 dB), 6 presets + 3 user presets
GAIN control: low/high
DOP SPDIF Supported
Digital filter: 6 types of digital filters
Phase inversion Supported
Connection mode: USB MSC /Audio/Charge
Supported USB DAC

SUPPORTED SAMPLE RATE

• PCM: 24bit 384KHz
• DSD: 11.2896 MHz (DSD256)

FILE FORMATS SUPPORT APE AAC ALAC FLAC WAV MP3 WMA DFF DSF AIFF SACD-ISO

AUDIO PORTS

• 3.5mm SE（LO, PO, SPDIF）
• 4.4mm balanced（LO, PO）

OUTPUT OPTIONS LO (3.5MM SE)
SNR >127 dB (A Weighting)
Dynamic Range: >127 dB(A Weighting)
THD+N < 0.00022% @24bit 96KHz Awt
Frequency Response 20 Hz – 20 KHz +/- 0, 2dB
Crosstalk: >98dB
OUTPUT VOLTAGE (RMS)
High Gain 2.05/2.75Vrms
Low Gain 0.55/0.7Vrms

LO (4.4MM BALANCED) OUTPUT
SNR >130db(A Weighting）
Dynamic Range >130dB（A Weighting ）
THD+N < 0.0001% @24bit 96KHz Awt
Frequency range 20 Hz – 20 KHz +/- 0.2 dB
Crosstalk: > 115 dB
OUTPUT VOLTAGE

• High gain 4.1/5.5 Vrms
• Low gain 1.1/1.5 Vrms

Output parameters PO (3.5 mm)
Output power: 16ω 425 mW
output power: 32ω 230 mW
output power: 100ω 75 mW
SNR> 127DB (A Weighting）
Dynamic range> 127DB (a weighing)
ThD+N <0.00025% @24BIT 96KHHZ Awt
frequency range 20Hz-20KHz +/- 0.2dB
Output impedance 1.2Ω
Crosstalk: > 75dB
OUTPUT VOLTAGE

• High Gain 2.05/2.75Vrms
• Low gain 0.55/0.7Vrms

PO OUTPUT PARAMETERS (4.4MM BALANCED)
Output Power: 100Ω 300mW
Output Power: 300Ω 100mW
SNR >130db(A Weighting)
Dynamic Range >130dB(A Weighting）
THD+N < 0.0001% @24bit 96KHz Awt
Frequency Range 20Hz-20KHz +/-0.2dB
Output Impedance: 2.4Ω
Crosstalk: >113dB
Output Voltage

• High gain 4.1/5.5 Vrms
• Low gain 1.1/1.5 Vrms

Bluetooth
Bluetooth Version 5.0
Codecs: LDAC, APTX,APTXHD,APTXLL,AAC, SBC
Direction: Bluetooth Receiver
Transmission Distance: 15m
Bluetooth Loop Source: FPGA Generation



Luxury & Precision E7 Price:

• Standard version: $3399
• Exclusive version: $4099
