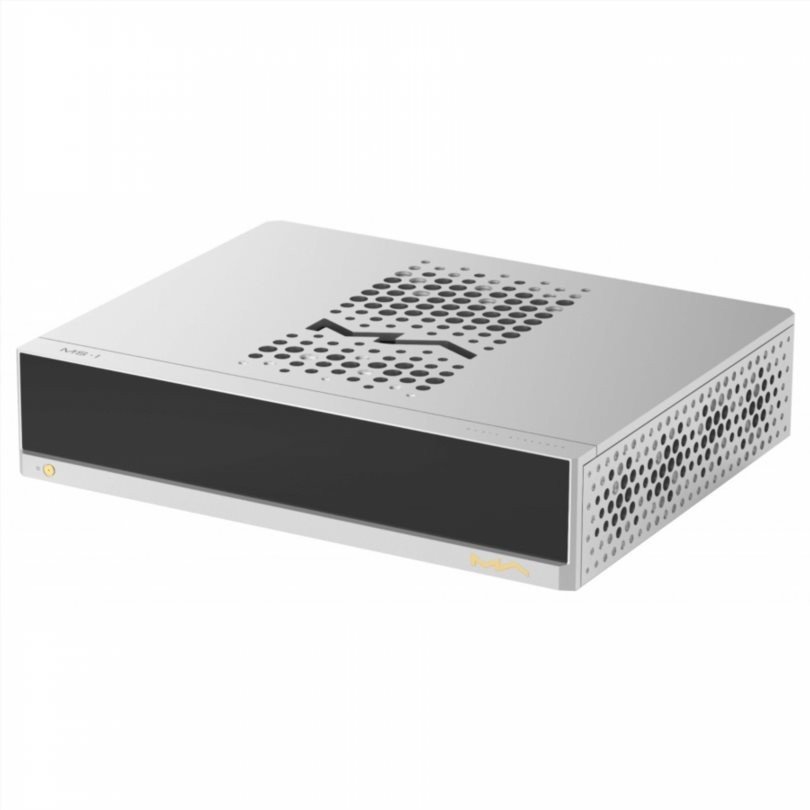

Matrix MS-1 PRE: Redesigned and improved network audio player

The Matrix MS-1 PRE network audio player represents a highly advanced streaming solution within the M series, which also includes the MP-1 preamplifier and the MA-1 power amplifier. This latest series showcases a redesigned aesthetic and an improved internal architecture. The MS-1 PRE network player features a balanced configuration utilizing a combination of AKM AK4499EX and AK4191 chips for each channel, enabling it to handle high-resolution PCM streams of up to 24-bit 768 kHz, native DSD up to DSD512, and MQA.

Additionally, this model includes pre-amplifier outputs with integrated volume control. The user experience is enhanced by an appealing display with touch controls and the MA Player solution, complemented by the MA Remote App 4.0. A variety of digital inputs (USB-B, optical Toslink, coaxial SPDIF, USB-A, SSD slot) and analog inputs (balanced XLR, RCA, and phono) ensure seamless integration into any audio system setup.

Furthermore, it offers an I2S LVDS input and output via HDMI, a 10 MHz sync connector, and both trigger input and output. The line outputs are comprehensive, featuring stereo RCA and stereo balanced XLR options. With the MS-1 PRE, Matrix delivers a remarkably adaptable and high-performance network player that is sure to satisfy even the most discerning audiophiles.

The MS-1 PRE features a built-in preamplifier with a resistor-based volume control. This preamplifier itself is the result of adding together many high-quality components, such as a multi-stage operational amplifier

Matrix MS-1 PRE specifications:

• Product Type: Streamer / DAC
• DAC chip: 2x AKM AK4499EX + AK4191
• Inputs: 1x USB-B/1x Optical Toslink/2x Coaxial/1x I2S LVDS via HDMI/2x USB-A Host (storage) port/1x SSD slot//WiFi//1x Balanced XLR analog input/1x RCA analog input/1x Phono input
• Outputs: 1x balanced XLR output/1x RCA output/1x I2S LVDS output via HDMI
• External sync inputs: 10 MHz / 50 Ohm
• Trigger: In: DC 6-12V 10mA/Out: DC 12V/50mA max. /
• Network: LAN 10/100/1000 Mbps/SFP 10/100/1000 Mbps
• Compatibility with USB-A (storage devices): USB 3.0 5V 1.5A (FAT, FAT32, exFAT, NTFS, compatibility with all media is not guaranteed)
• SSD Expansion: M.2 2280 NVMe PCIe SSD
• Supported data rates: Optical and coaxial Toslink: PCM up to 24-bit 192 kHz / I2S LVDS: PCM up to 32-bit 768 kHz, DSD DoP up to DSD256, native DSD up to DSD512 / USB-B: PCM up to 24-bit 768 kHz, DSD DoP up to DSD256, native DSD up to DSD512 and MQA
• I2S LVDS output sampling rate: PCM up to 32-bit 768 kHz, DSD DoP up to DSD256, native DSD up to DSD512
• Interface: MA player
• Application: MA Remote App
• Supported audio formats: MP3, WMA, WAV, AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF, CUE
• Supported network protocols: AirPlay 2/DLNA/UPnP/TIDAL Connect/Spotify Connect/vTuner/Radio Paradise ANALOG INPUTS XLR Balanced Input impedance 40kΩ
• Power supply: AC 220V-240V 50/60Hz
• Max. power consumption: 60W
• Power consumption in standby mode: 5W
• Dimensions: 430 x 353 x 106 mm
• Weight: 14.6 kg
