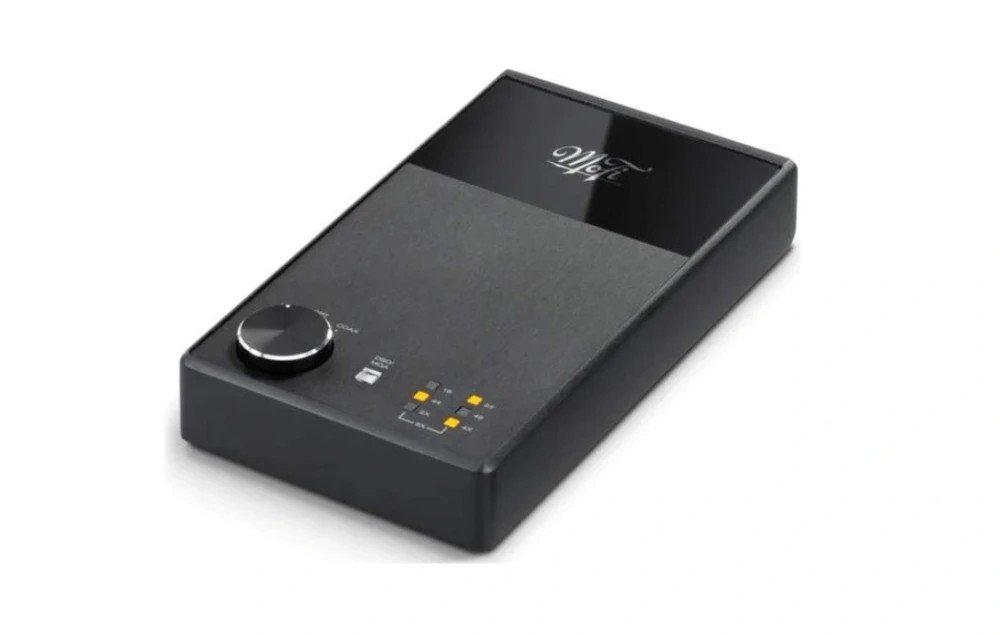

MoFi StudioDAC: The Company’s first DAC unveiled

MoFi Electronics debuts its inaugural StudioDAC converter, priced at $599.

Crafted by Michal Jurewicz, renowned for his work with the audio brand Mytek, the DAC features an external 12V/3.3A power supply, enhancing signal-to-noise ratio. Users have the option to swap power supplies for improved performance, facilitated by a standard 5.5/2.5 mm connector.

Connectivity options include optical, coaxial, and USB Type-C inputs, alongside analog outputs via RCA connectors. Signal conversion is driven by the ESS ES9038Q2M chip, with support for MQA technology.

SPECIFICATIONS

Digital Inputs:
1x Coax (S/PDIF), 1x Optical (TOSlink), USB B

D/A Converter:
ESS9038Q2M

Sampling Rates:
32/44.1/48/88.2/96/176.2/192/352.8/384 kHz

DSD Support (USB):
DSD64, DSD128

MQA Support:
Full MQA decode + render by hardware

Bit Depth (USB):
16-32 bits

Bit Depth (COAX, Toslink):
16-24 bits

Frequency Response:
20Hz – 20kHz +/- 0.2db

Analog Out:
1x Fixed Level Out (RCA)

Output Voltage:
2.5 VRMS @ 0dbfs

THD+N:
<0.002% 20-20Khz

Dynamic Range:
115dB (A-weighted)

SNR:
>114dB (A-weighted)

Crosstalk @ 10KHZ:
-110dB

Output Impedance:
75 Ohms (unbalanced)

Linearity:
<+/-0.25db @ -110db

Power Supply (external 100-240VAC):
+12 Vdc 3.3 Amp center positive

Output Connector (external 100-240VAC):
5.5/2.5mm barrel connector

FEATURES

• DSD, DXD, and 32-bit/384 PCM playback

• Custom Designed and Manufactured in the USA

• USB2.0, S/PDIF, and Toslink, inputs

• MQA Decoder

• Outboard power supply
