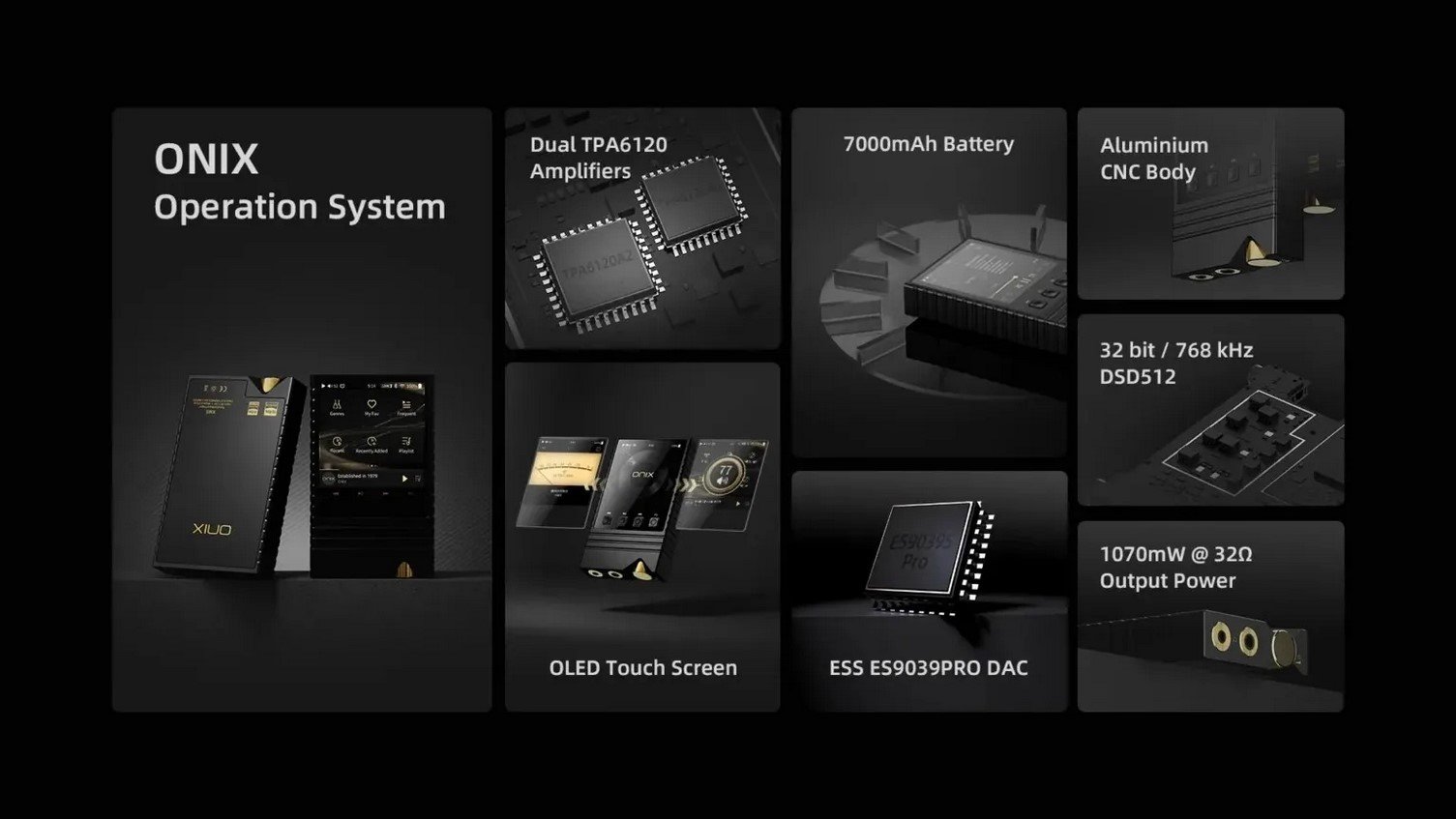

ONIX Overture XM5: High-end portable player unveiled

ONIX has released its first portable player, Overture XM5 . The company works closely with Shanling.

Signature ONIX Design

The classic look of ONIX, updated for modern times, fits perfectly with the Miracle and Mystic models. The main body, made of high quality CNC aluminum, provides a durable and beautiful design, especially when combined with the gold-plated volume control.

Premium Audio Configuration

Inspired by the ONIX Miracle audio design, Overture brings the sound of ESS's flagship ES9039PRO DAC into the portable world. High detail, dynamics and energy combined with warm and smooth sounding voices. The TPA6120A2 amplifiers deliver over 1W into 32 ohms, offering exceptional power from a portable device.

Pure Music System

A simple and fast system based on the Ingenic X2000 platform, designed for the most demanding audiophiles. Without the distractions of modern smartphones, providing only basic music playback. Support for Hi-Res files from a MicroSD card, streaming via Tidal or DLNA/Airplay will provide continuous high-quality sound.

The multifunctional Hi-Fi component

ONIX XM5, designed as a portable headphone player, will easily fit into any role: at home, in the office or as part of a Hi-Fi system. Stream YouTube from your phone via Bluetooth, use as a USB DAC/amp with a work laptop, digital output for separate USB DACs, or use as a standalone DAC for powerful monoblock amplifiers – audiophiles will always find new ways to use the XM5 to its full potential.

Technical characteristics:

• Platform: Ingenic X2000
• System: Own development
• Display: Square 3-inch OLED touchscreen 720p
• Playback: MicroSD card (up to 2TB), Tidal streaming
• Controls: Touchscreen, 4 hardware buttons, volume wheel
• Remote Control: SyncLink via Eddict Player App (Android and iOS)
• Bluetooth: Two-way Bluetooth 5.2
• Bluetooth codec support: LDAC / aptX HD / aptX / SBC / AAC
• Wi-Fi: 2.4G/5G, DLNA, AirPlay, Tidal
• USB DAC: XMOS XU316 custom chip
• Hi-Res file support: PCM 768kHz/32bit, DSD512
• Headphone outputs: 3.5 mm (unbalanced), 4.4 mm (balanced)
• Battery: 7000 mAh, standard USB-C charging port
• Operating time: Up to 14 hours (unbalanced), 12 hours (balanced)
• Dimensions: 115 x 70 x 19 mm
• Weight: 275 g
• 3.5mm unbalanced output
  • Low Gain Power:
  • 0.79 V @ 32 Ω (19 mW @ 32 Ω) (THD+N < 0.002%)
  • High Gain Power:
  • 3.15 V @ 32 Ω (310 mW @ 32 Ω) (THD+N < 1%)
  • 3.65 V @ 300 Ω (40 mW @ 300 Ω) (THD+N < 0.02%)
  • Output impedance: 4.7 Ω
• 4.4mm balanced output
  • Low Gain Power:
  • 1.5 V @ 32 Ω (75 mW @ 32 Ω) (THD+N < 0.0008%)
  • High Gain Power:
  • 5.7 V @ 32 Ω (1069 mW @ 32 Ω) (THD+N < 1%)
  • 6.9 V @ 300 Ω (158 mW @ 300 Ω) (THD+N < 1%)
  • Frequency response: 20 Hz – 40 kHz (-0.5 dB)
  • THD+N: 0.0006% @ 32 Ω (A-Weight)
  • Dynamic Range: 121 dB @ 32 Ω (A-Weight)
  • Channel Separation: 100 dB
  • Signal to Noise Ratio: 121 dB @ 32 Ω (A-Weight)
  • Noise: 109 dB @ 32 Ω (A-Weight)
  • Output impedance: 6.6 Ω

Price : $739
