Onkyo C-7030: Classic high-quality CD player

The classic CD player Onkyo C-7030 is addressed to those lovers of high-quality sound who prefer to listen to their collection in the “classic” way – on optical media. This player, which embodies the company's many years of experience in creating equipment of this class, is made using the most modern technologies and selected components.

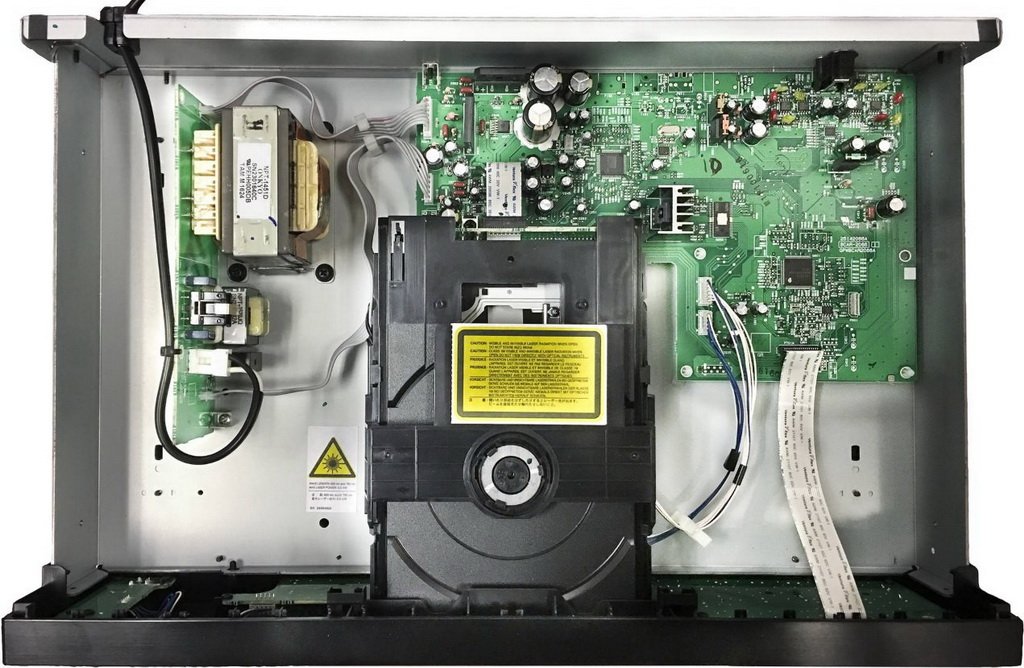

The front panel of the Onkyo C-7030 is made of aluminum and has a significant thickness. The device is equipped with a transport mechanism installed in the center of the body on a special anti-resonance chassis and optimized for playing CD-Audio discs. How is this implemented? The chassis is made of 1.6 mm thick steel and, thanks to its flat design, successfully combats parasitic vibrations. The Onkyo C-7030 has a Wolfson digital-to-analog converter with 24-bit/192 kHz parameters, which provides the highest accuracy in processing the digital stream taken from a CD. The player has also taken additional measures to reduce jitter levels. The master oscillator, which controls the operation of the entire digital circuit of the player, has quartz frequency stabilization with an accuracy of +/- 10 ppm (i.e. ten millionths), which exceeds the typical figure for equipment of this class.

VLSC digital-to-analog conversion technology is one of Onkyo's proprietary developments, which has significantly improved sound quality. It made it possible to significantly reduce the noise level in the audio signal at the output of the DAC, increasing the detail and airiness of the sound picture. The power supply in the Onkyo C-7030 is based on a custom high-power network transformer and has separate windings for supplying voltage to the analog and digital circuits of the player. The device is equipped with high-quality output stages made using selected audiophile-grade components with shortened audio signal transmission circuits. The player is also equipped with a built-in headphone amplifier – with an output jack with a diameter of 6.3 mm.

On the rear panel of the Onkyo C-7030 there is an analog stereo output, coaxial and optical outputs, as well as jacks for an external control system; All contact surfaces of audio connectors are gold-plated.

Specifications Onkyo C-7030

Supported formats and media CD, CD-R, CD-RW, MP3 CD, WMA
Frequency range 4 – 20000 Hz (+1/-3 dB)
Wolfson DAC 192 kHz / 24 bit
THD 0.0029%
Ratio signal/noise 107 dB
Dynamic range 100 dB
Analog output 2 V / 600 Ohm
Outputs Linear, optical, coaxial, headphone output
Supply voltage 220-240 V, 50/60 Hz
Power consumption 12 W
Dimensions 435 x 101 x 306 mm
Weight 5, 3 kg
