Rotel T11: High-quality FM/DAB+ tuner

The Rotel T11 is a high-quality FM/DAB+ tuner with 30 radio station presets. It offers a rich selection of free music listening options. The Rotel T11 provides a wide range of listening options with easy access to classic analogue FM radio stations and the latest DAB+ (Digital Audio Broadcasting) digital audio broadcasts.

The model has the ability to easily save and recall up to thirty preset stations (presets) for each range from its built-in memory. For FM, the multi-purpose standard RDS (Radio Data System) is supported – a data system about radio stations, thanks to which various information related to broadcasting is displayed on the tuner's LCD display, including the names of received programs, the nominal values ​​of their operating frequencies, the names of genres, songs, information about traffic conditions, etc.

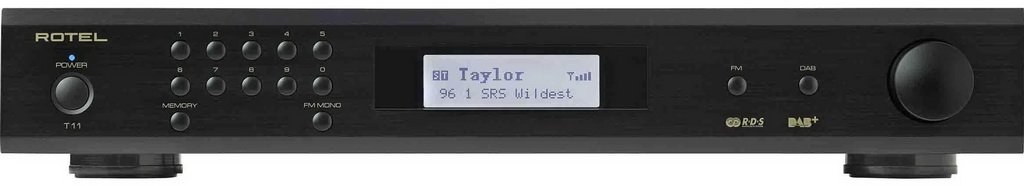

In keeping with the modern style of the Rotel T11 series, it has a clean, simple design with an industrial feel. The all-metal body with an aluminum facade is mounted on anti-vibration feet. All information is displayed on a liquid crystal display located in the center of the front panel, the brightness of which can be changed depending on lighting conditions (seven gradations are available). The left side of the facade is filled with 10 buttons for directly calling up radio station presets, buttons for switching to mono mode (for the FM range) and entering presets into memory, as well as a power button with an LED indicator, the brightness of which can also be changed. On the right side of the panel there are buttons for selecting bands (FM or DAB+)/entering the menu and a search/program setting knob, which is also involved in working with the menu. The tuner is equipped with a convenient oblong remote control RR-T98.

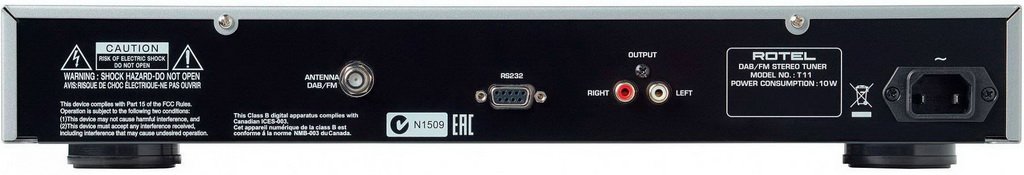

The rear panel of the case has an analog linear output on RCA connectors, a jack for an FM/DAB antenna and an RS-232 interface, with which the Rotel T11 can be connected to a comprehensive computer automation and control system such as AMD or Crestron, which is convenient for multi-room. installations. Using this interface you can also update the tuner software.

Characteristics of Rotel T11

FM tuner ranges with RDS, DAB, DAB+
Number of radio station presets 30
Frequency range 10 Hz – 15 kHz (± 3 dB) (for FM)
Channel separation for FM stereo 40 dB (100 Hz), 37 dB (1 kHz) )
Sensitivity 22.2 dBf (FM)
Threshold sensitivity 27.2 dBf (FM mono)
FM signal-to-noise ratio: 63 dBf (mono), 60 dBf (stereo)
FM harmonic distortion: 0.2% (mono), 0 .3% (stereo)
Output signal level 1 V (FM)
Outputs linear RCA
Other switching interface RS-232, combined connector for FM/DAB antennas Remote
control RR-T98
Power consumption 10 W, standby: 0.5 W
Dimensions ( WxHxD) 430x73x330 mm
Weight 4.3 kg
