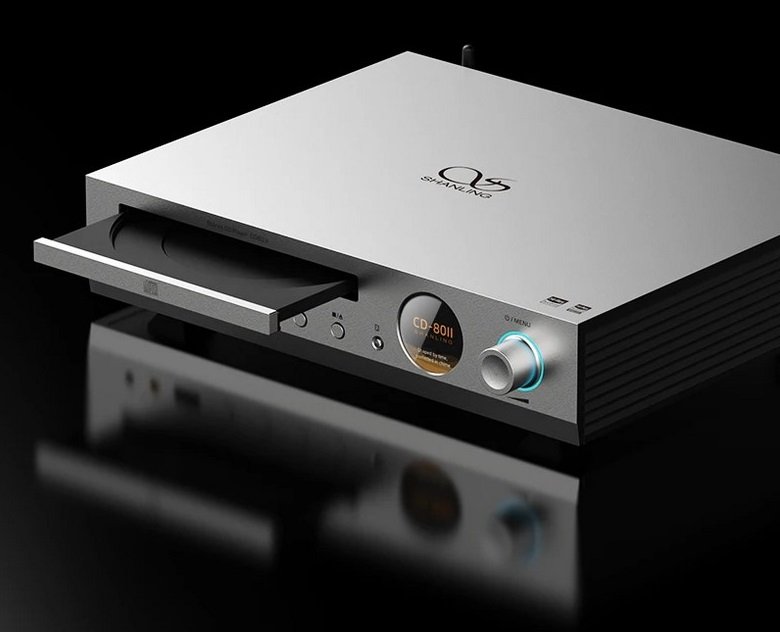

Shanling CD80II: Compact Hi-Fi CD Player with Balanced DAC

Shanling CD80II is a new compact CD player with advanced connectivity and modern controls. It is equipped with an Ingenic X1000E processor for fast boot-up and smooth interface operation, and a Cirrus Logic CS43198 DAC, which provides high-quality playback with a balance between detail and musicality.

The built-in balanced headphone amplifier based on two SGM8262 chips develops up to 850 mW per channel, which allows using both in-ear and full-size models. The disc loading mechanism with a tray and the fourth-generation HD850 drive ensure accurate and reliable CD reading.

The player supports playback from USB drives up to 2 TB (including formats up to PCM 384 kHz and DSD256) and audio reception via Bluetooth 5.0 with LDAC, AAC and SBC codecs. Physical buttons, a remote control and the proprietary Eddict Player application are provided for control.

The compact size and aluminum body make the CD80II convenient for placement both on a desktop and in a narrow Hi-Fi rack.

Shanling CD80II Specifications:

• Dimensions: 280x205x52 mm
• Weight: 2.6 kg
• Processor: Ingenic X1000E
• DAC: Cirrus Logic CS43198
• Bluetooth: 5.0 with LDAC/AAC/SBC support
• Display: color 1.28″ (240×240)
• Control: buttons/wheel/remote control/app
• Inputs: CD/USB/Bluetooth 5.0
• Outputs: RCA/coaxial SPDIF/3.5mm/4.4mm
• CD support: CD/CD-RW/CD-R Audio CD
• USB support: up to 384kHz/32bit, DSD256
• USB formats: DSD/DXD/APE/FLAC/ALAC/WAV/AIFF/AIF/DTS/MP3/WMA/AAC/OGG/MP2/M4A/AC3/OPUS/TAK/CUE
• RCA: 2.6 V, 20 Hz–40 kHz, THD+N 0.0004%, DD 124 dB, SNR 124 dB, impedance 100 Ohm
• 4.4mm Output: 850 mW@32Ω, 20 Hz–40 kHz, THD+N 0.0007%, channel separation 112 dB@32Ω, DD 127 dB, SNR 127 dB, noise <2.2 µV, impedance 0.7 ohm
• 3.5mm Output: 215 mW@32Ω, 20 Hz–40 kHz, THD+N 0.0007%, channel separation 75 dB@32Ω, DD 125 dB, SNR 125 dB, noise <1.4 µV, impedance 0.4 ohm
• SPDIF digital output: up to PCM 192kHz/24bit, DSD not supported
