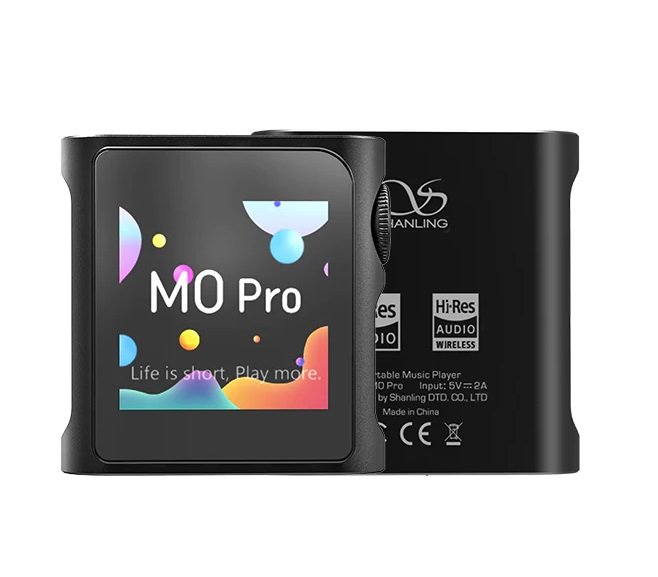

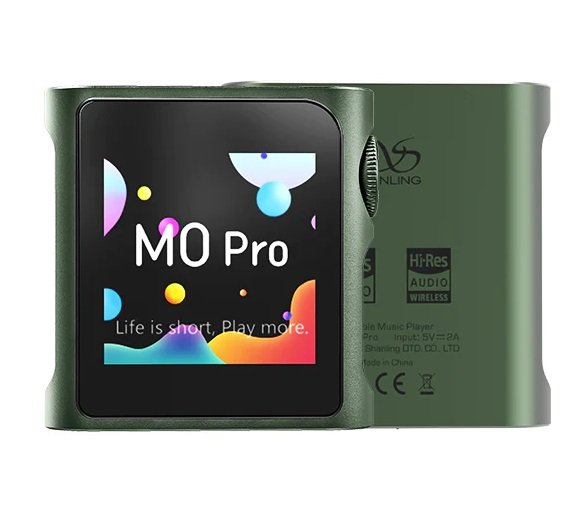

Shanling M0 Pro: Portable player based on ES9219C chips

The M0 was the most popular product we've ever released. It convinced people to upgrade from their Sansa Clips to a real hi-fi player, it was used as a USB transport for DACs that cost 10 times more, it was even glued to the body of headphones, turning them into an all-in-one DIY setup. . And it filled the empty space left by the legendary iPod Nano.

The new Shanling M0 Pro follows in its footsteps, but this time we managed to squeeze a full balanced audio circuit into it! Thanks to two ESS ES9219C DAC/AMP, the M0 Pro will be able to provide improved sound quality and increased output power. Thanks to this, the most portable player will sound even better!

To use a balanced output while keeping the M0 Pro's dimensions the same as its predecessor, we got creative and used an entirely new type of 3.5mm jack, combining both single-ended and balanced connections. It works perfectly with all standard single-ended 3.5mm jacks, while providing a properly balanced connection via the special 5-pin 3.5mm to 4.4mm adapter (included).

And we can't forget about two-way Bluetooth, such an important feature of the original. M0 Pro now features an upgraded Bluetooth 5.0 chip, ensuring compatibility with the latest Bluetooth headphones and improving call quality.

Shanling M0 Pro Specifications :

• Package includes: M0 PRO Player+leather case
• Dimensions: 43.8 X 45 X 13.8 mm
• Weight: 36.8 g
• DAC: DUAL ESS ES9219
• Screen: 1.54 inch 240×240 touch screen
• Digital filters: 2 preset filters
• Battery life: up to 14.5 hours
• Battery: 650 mAh
• Data storage method: Support 2TB external TF card
• Output Port: Headset Out (3.5mm)

Wireless connection:

• Bluetooth: Version 5.0
• As a transmitter: LDAC/aptX/AAC/SBC
• As a receiver: LDAC / SBC / AAC
• Audio formats: DSD(” .iso”,” .dsfl”, dff”)/DXD/APE/FLAC/ALAC/WAV/AIFF/AlF/DTS/MP3/WMA/AAC/OGG/MP2/M4A/AC3/CUE /M3U
• Switchable Gain: Low, Medium, High

Single-way output:

• Output Power: 1.7V@32ohm (90mW@32ohm)
• Frequency response: 20 Hz – 40 KHz (-0.5 dB)
• THD+N: 0.0006%@32Ohm（A-Weight@720mV）
• Dynamic Range: 119dB@32ohm（A-Weight）
• Channel Separation: 72 dB @ 32 ohms
• S/N: 118dB@32ohm（A-Weight）
• Output impedance: <0.4 ohm

Balanced output:

• Output Power：2.75V@32Ohm（236mW@32Ohm）
• Frequency response: 20 Hz-40 KHz (-0.5 dB)
• THD+N: 0.0004%@32Ohm（A-Weight@1V）
• Dynamic Range: 121dB@32ohm（A-Weight）
• Channel Separation: 109 dB @ 32 ohms
• Signal-to-noise: 119dB@32ohm（A-Weight）
• Output impedance: <0.8ohm
