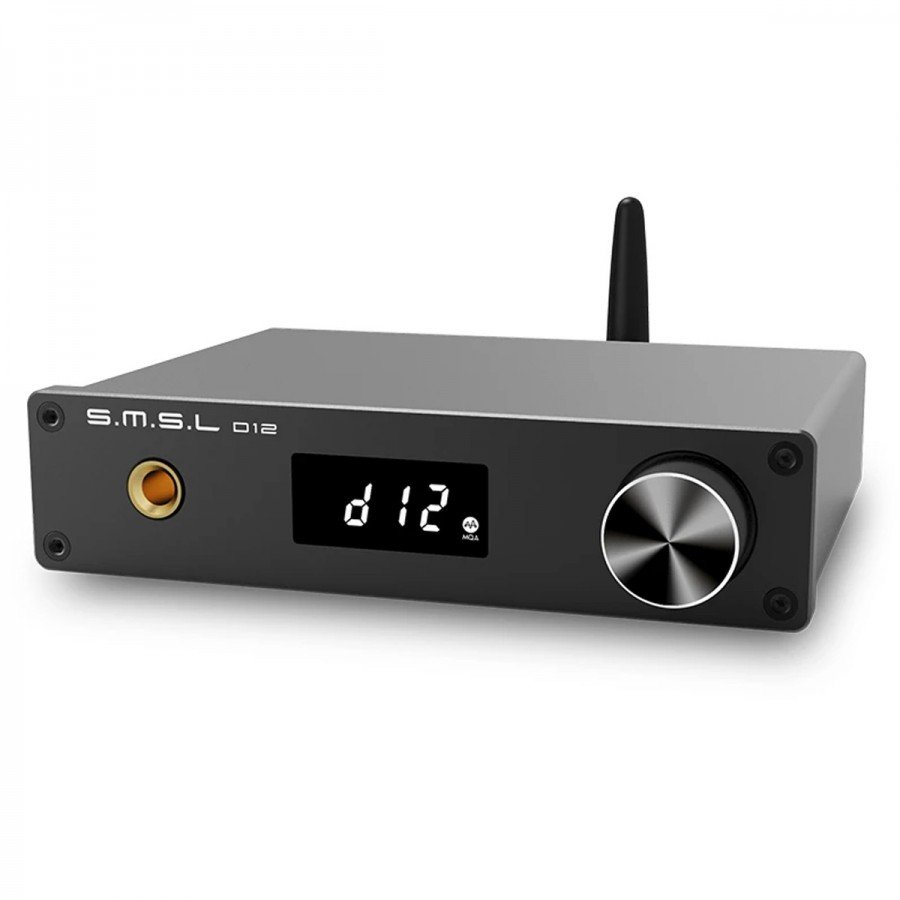

SMSL D12: DAC with Bluetooth 5.0 on AK4493S

SMSL D12 is a compact and high-performance DAC that uses AKM AK4493S digital-to-analog conversion chip to deliver dynamic, musical and accurate sound. This chip, combined with the advanced XMOS XU316 USB interface, also allows support for high-resolution audio streams up to PCM 32bit 768kHz, DSD512, as well as decoding MQA files.

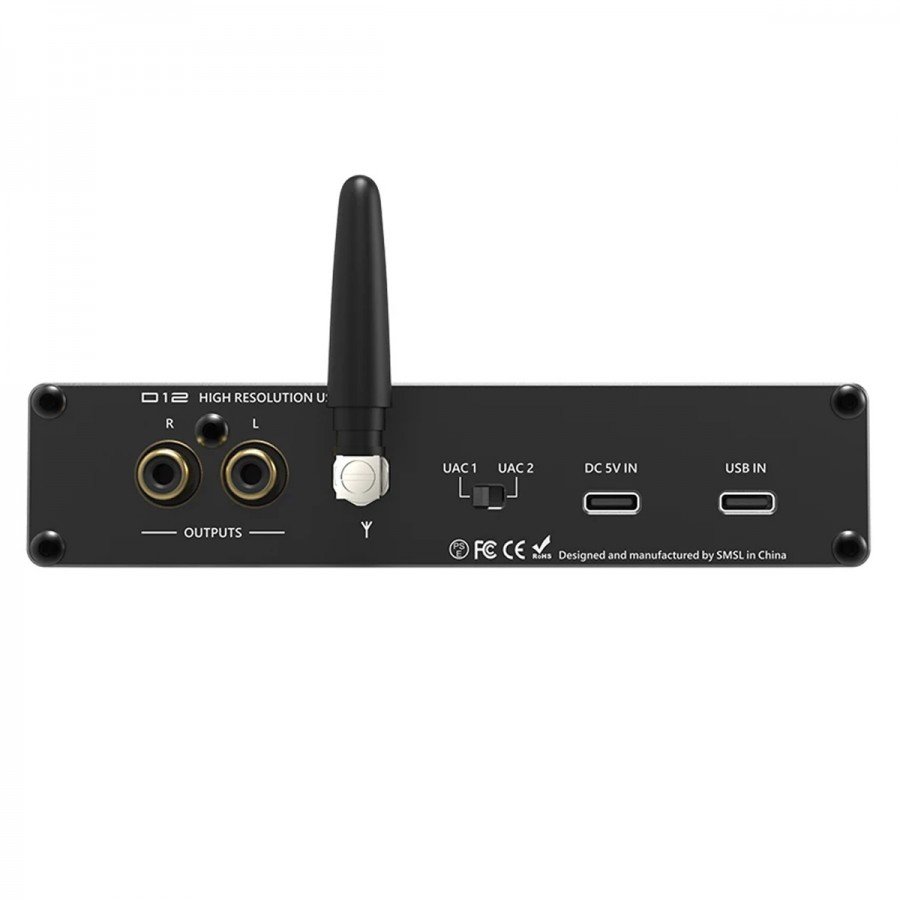

When it comes to connectivity, the D12 is simple and efficient, with USB-C input and Bluetooth 5.0 wireless connectivity. Output is via RCA or via the 6.35mm headphone jack on the front panel.

Characteristics of SMSL D12:

• Product Type: DAC
• Inputs: Bluetooth 5.0/1* USB
• Outputs: 1* stereo RCA/1* headphone output Jack 6.35mm
• DAC chip: AKM AK4493S
• USB interface: XMOS XU316
• Output Level: 2.3Vrms
• Gain: +2.5 dB
• Output power: 400 mW @ 16 ohms / 300 mW @ 32 ohms
• THD+N: 0.00015% (-116 dB)
• Dynamic range: 120 dB
• SNR: 120 dB
• USB Compatibility: Windows 7 / 8 / 8.1 / 10 / 11/Mac OSX10.6 ou ultérieur/Linux/Android/iOS/Sony PS5 (UAC1)/Nintendo Switch (UAC1)
• Supported sampling rates: PCM up to 32 bit 768 kHz/DSD up to DSD512
• Supply Voltage: DC 5V via USB-C
• Consumption: 10W
• Standby consumption: 0.5W
• Dimensions: 139×102.5×33 mm
• Weight: 355 g
