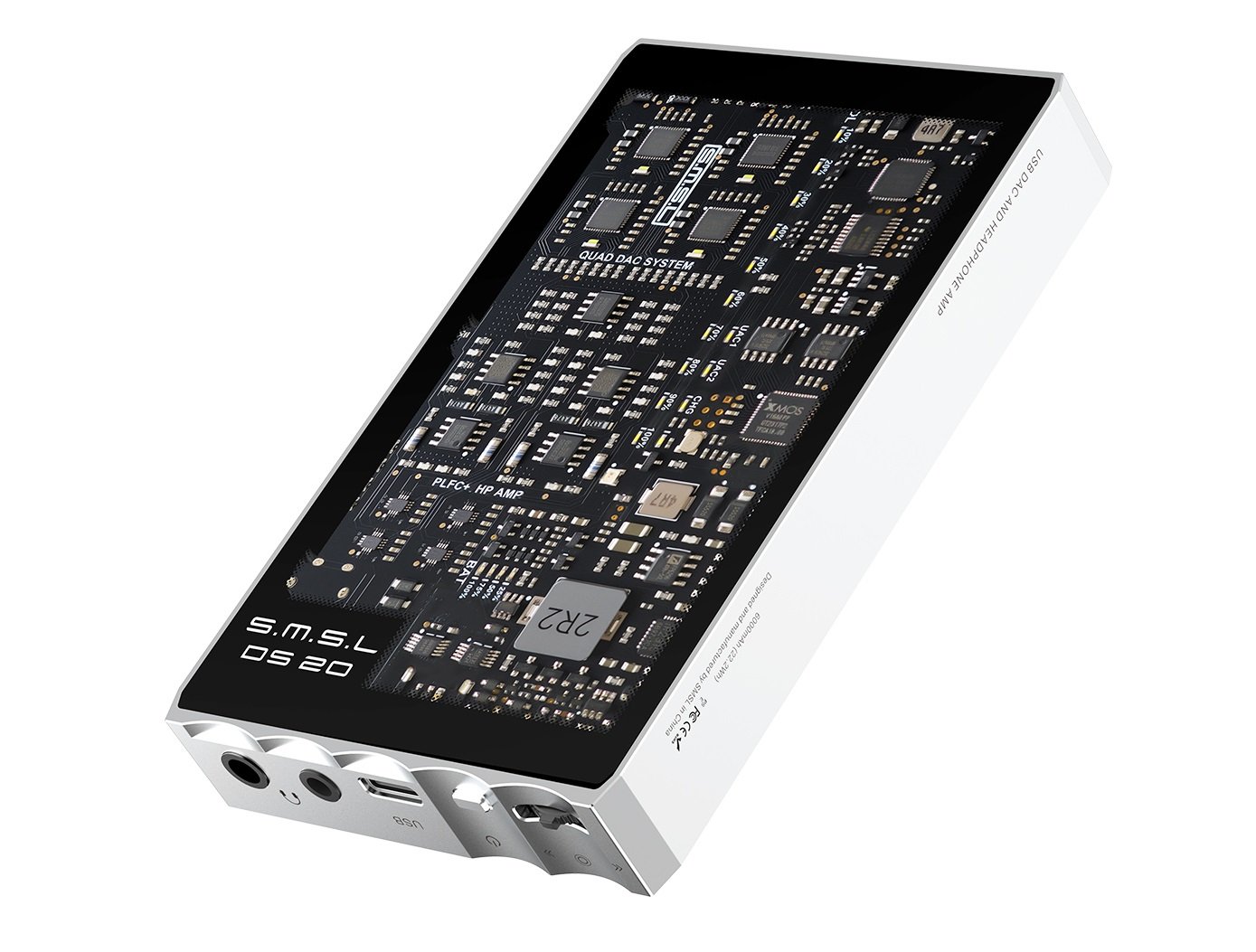

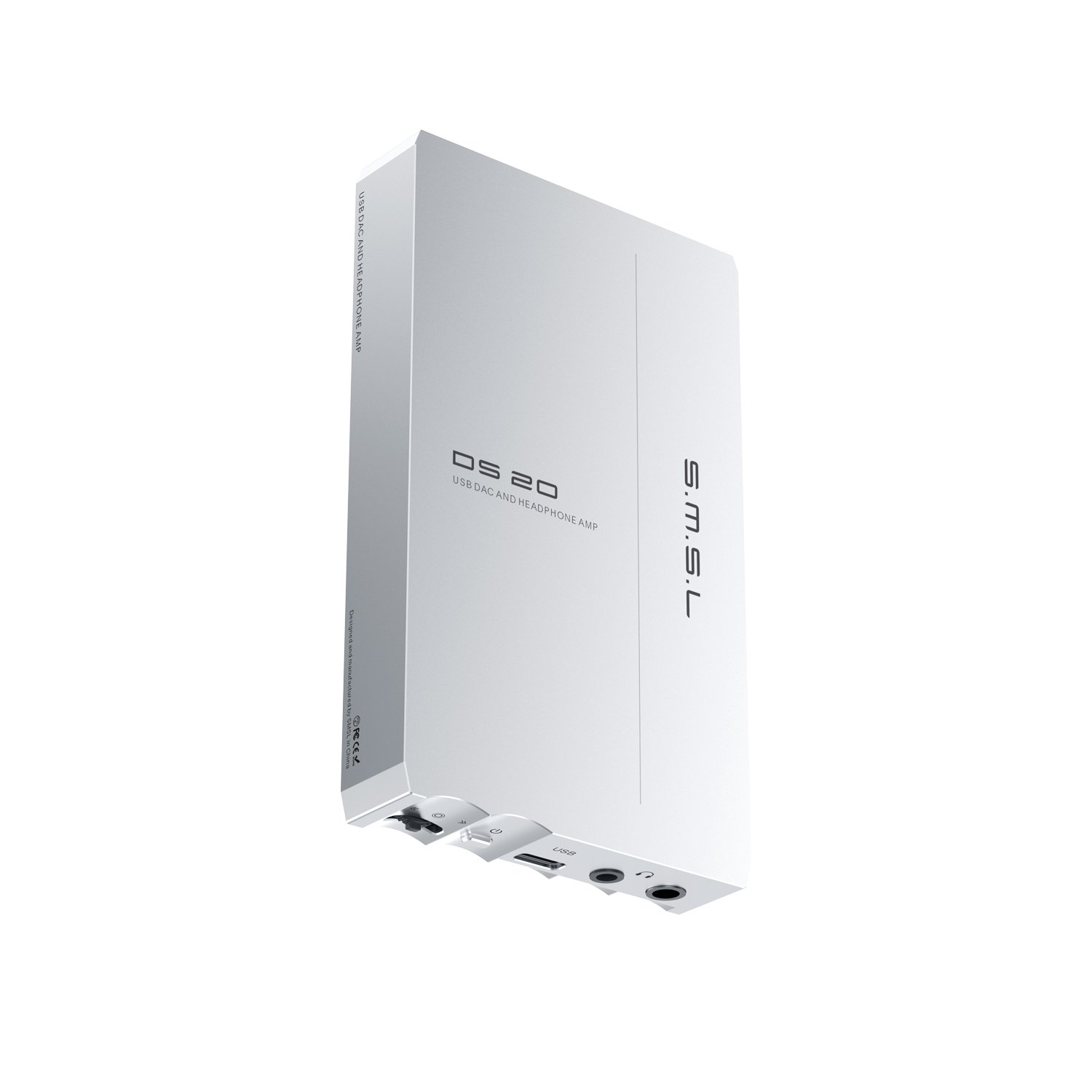

SMSL DS20: High-Performance Portable DAC & Amp

SMSL DS20 is a new portable digital-to-analog converter and headphone amplifier that combines modern circuitry with a compact body. The device uses four DAC chips CS43131 from Cirrus Logic, which provides accurate signal processing with support for PCM up to 32 bit/768 kHz and DSD up to 256. The new third-generation XMOS XU-316 chip is responsible for the fast and stable operation of the USB interface.

The model fully expands MQA files (8x resolution) and also has switchable USB 1.1/2.0 modes for connecting to PCs, smartphones and gaming consoles.

The well-thought-out architecture includes a balanced PLFC gain circuit, a special low-jitter clock signal generation circuit, and a low-noise power supply. All key components, from resistors to capacitors, are selected with an emphasis on operation in audio paths. The built-in battery ensures long-term autonomous operation. The device is JAS (Hi-Res Audio) certified.

SMSL DS20 Features:

• Type: Portable DAC and Headphone Amplifier
• DAC: 4 x CS43131
• USB interface: XMOS XU-316
• PCM support: up to 32 bit/768 kHz
• DSD support: up to DSD256
• MQA support: full rollout (8x)
• USB modes: USB1.1 / USB2.0
• Outputs: 3.5mm / 4.4mm
• Output voltage: 3 Vrms (3.5 mm) / 6 Vrms (4.4 mm)
• Output power:
  • — 16 Ohm: 500 mW x2
  • — 32 Ohm: 500 mW x2
  • — 64 Ohm: 350 mW x2
  • — 150 Ohm: 240 mW x2
  • — 300 Ohm: 120 mW x2
  • — 600 Ohm: 60 mW x2
• Output impedance: about 0 Ohm
• Power: built-in battery 6000 mAh (22.2 Wh)
• Compatibility: Windows 7–11 / macOS / Linux / Android / iOS / PS4 / PS5 / Nintendo Switch
• Dimensions: 71 x 17 x 118.5 mm
• Weight: 275 g
