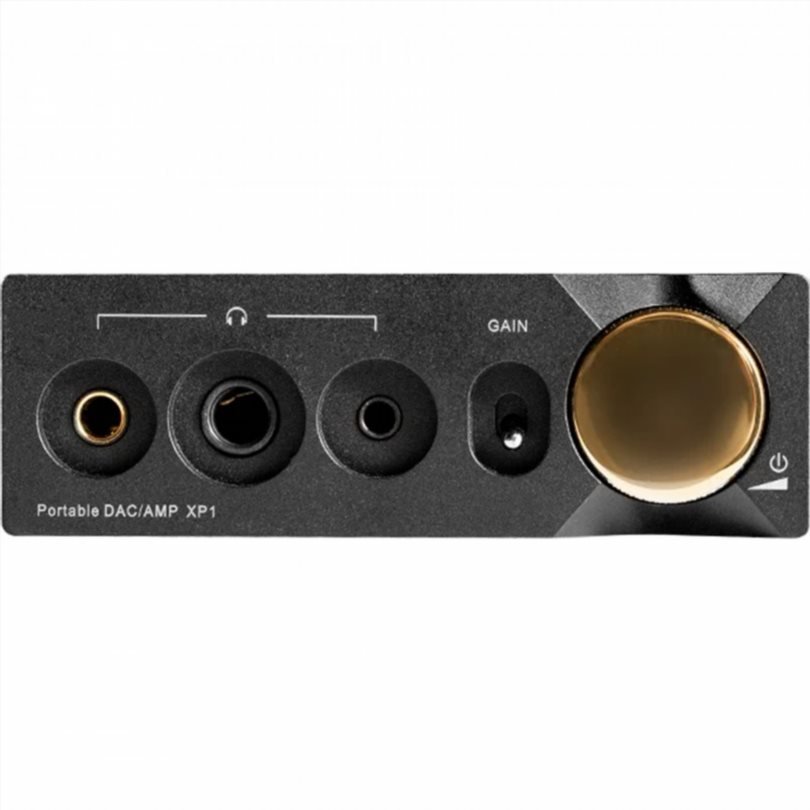

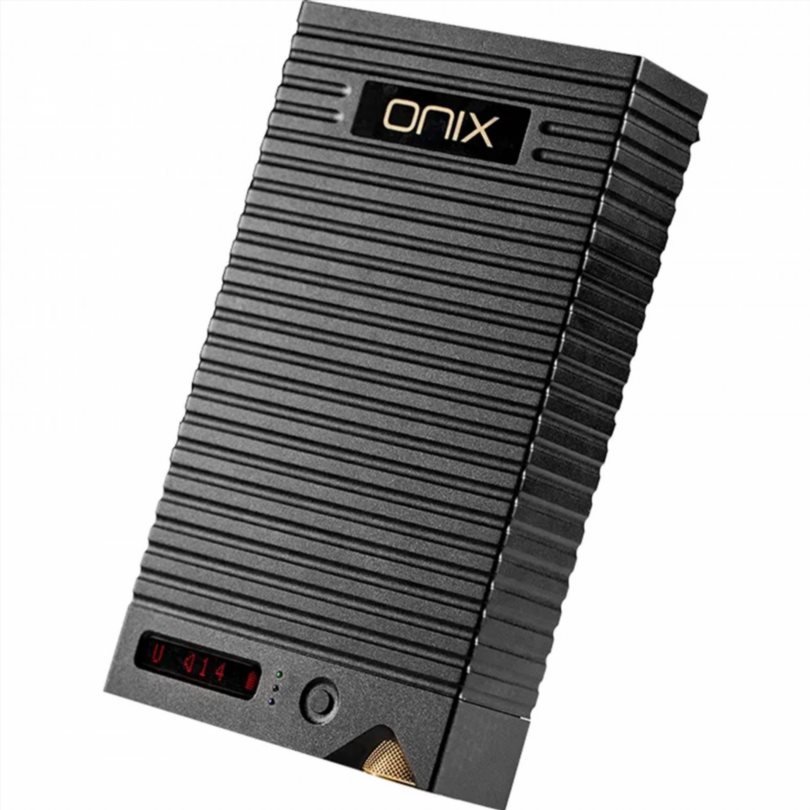

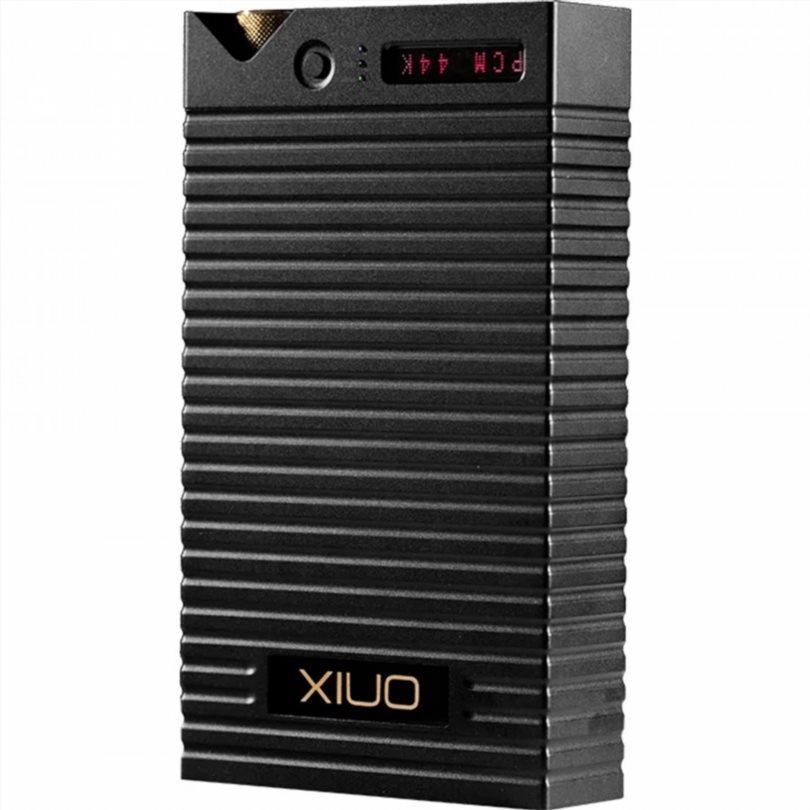

The Onix Mystic XP1 is a state-of-the-art portable amplifier and DAC

The new Onix Mystic XP1 is an advanced portable amplifier and DAC that can convert signals up to PCM 32-bit 768 kHz and DSD512. It is designed to be versatile, catering to various situations, from powering small headphones on the go to driving more demanding headphones for stationary use.

The Mystic XP1 features a dual AKM AK4499EX DAC chips paired with AK4191 delta-sigma modulators, delivering high-resolution conversion and authentic sound quality. Its amplifier stage is designed symmetrically and utilizes the TPA6120A2 chip from Texas Instrument, tailored for headphone amplification. Moreover, the balanced line output includes a Muses8920 chip, allowing the Mystic XP1 to serve as a preamplifier. Lastly, the I/V conversion stage developed by Brighton rounds out the comprehensive package.

Unlike other portable DACs that rely entirely on smartphones or computers, the Mystic XP1 has a Micro SD card slot, allowing you to play all your files losslessly. You can play files directly from the Mystic XP1 or connect to them via the Eddict Player app for Android and iOS.

You can also connect the Mystic XP1 to smartphones or computers via the high-performance XMOS XU316 USB input, or opt for a convenient wireless connection via Bluetooth 5.0 with support for LDAC, aptX HD and AAC. For connection to traditional HiFi equipment, the Mystic XP

Onix Mystic XP1 Specifications:

• Product Type: Portable Headphone Amplifier and DAC
• Amplifier ICs: TPA6120A2/MUSES8920
• DAC chip: 2x AK4499EX
• USB Interface: XMOS XU316

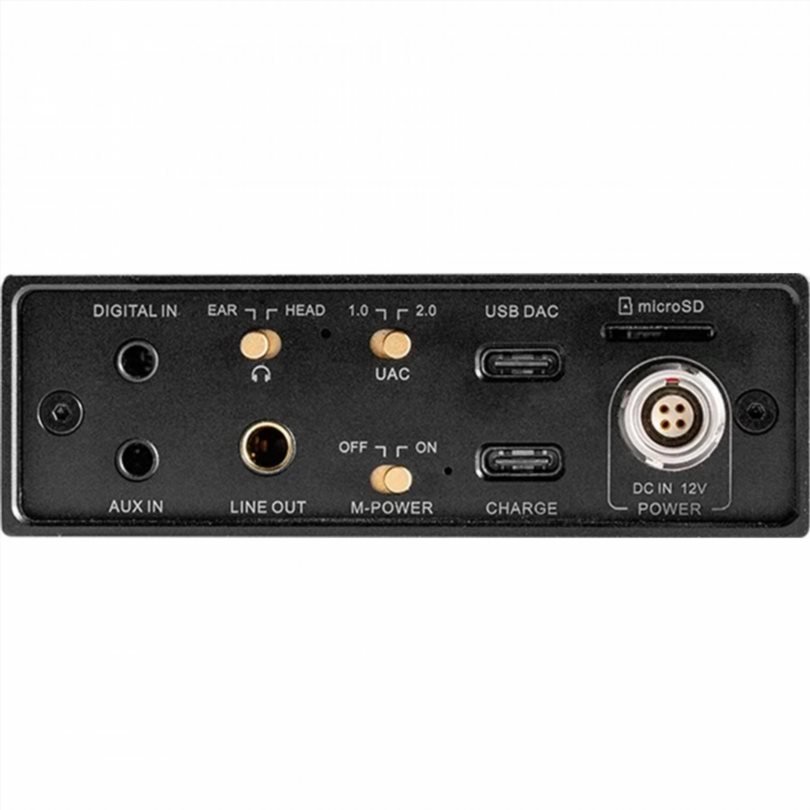

• Inputs: 1x Coaxial SPDIF / Optical Mini-Toslink combo input / 1x Jack 3.5 mm / 1x USB-C / 1x MicroSD / Bluetooth
• Outputs: 1x balanced line output 4.4 mm Jack / 1x balanced output 4.4 mm Jack for headphones / 1x single-ended output 3.5 mm >Jack for headphones / 1x single-ended output 6.5 mm Jack for headphones
• Bluetooth: 5.0
• Supported sampling rates: PCM up to 32-bit 768 kHz/DSD up to DSD512
• Supported Bluetooth codecs: LDAC / aptX HD / aptX / SBC / AAC
• Gain levels: 2x 3 levels (headphone mode and earphone mode)
• Battery: 7000 mAh
• Autonomy: Up to 10 h
• Output Power: Single-ended: 2.6V @ 32Ω THD+N ≤ 0.023% / Single-ended with external power supply: 5.1V @ 32Ω THD+N ≤ 1% / Balanced: 4.9V @ 32Ω THD+N ≤ 0.01% / Balanced with external power supply: 8.7V @ 32Ω THD+N ≤ 1%
• Output impedance: 4.7Ω
• Frequency response: 20Hz – 40kHz (-0.5dB)
• Total Harmonic Distortion and Noise (THD+N): 0.0005%
• Dynamic range: 120 dB
• Channel separation: 101 dB
• Signal to noise ratio: 120 dB
• Dimensions: 160 x 92 x 30 mm
• Weight: 583 g
• Black color
