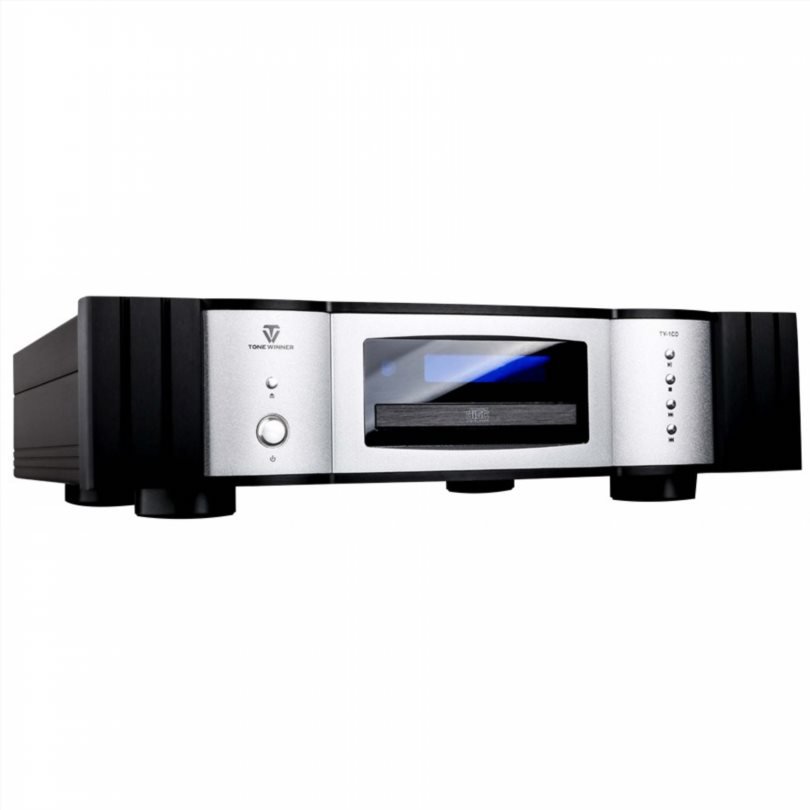

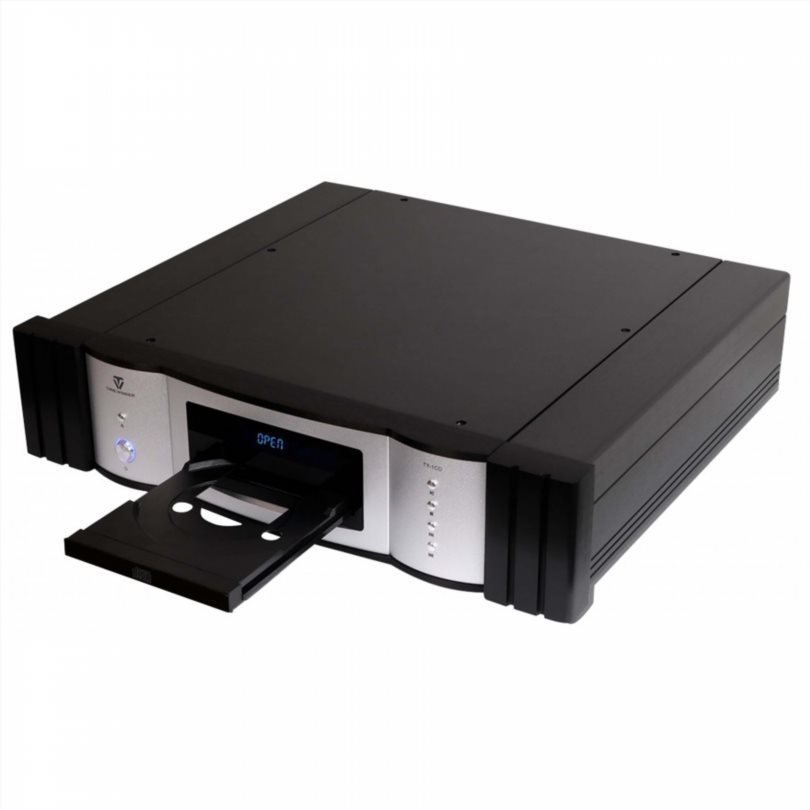

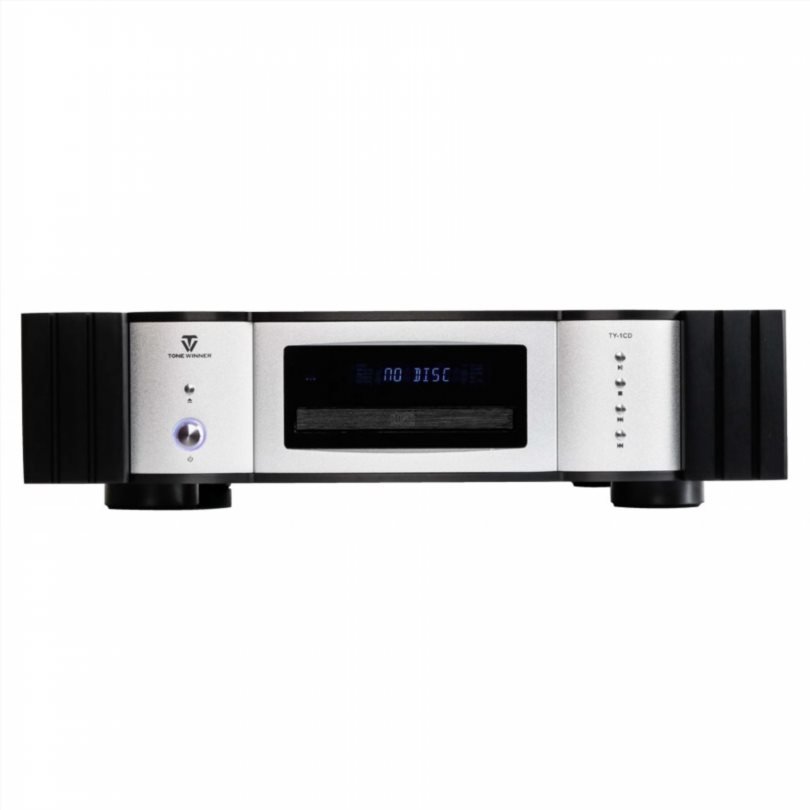

Tonewinner TY-1CD: High-quality CD player unveiled

Tonewinner TY-1CD is equipped with an ES9028 DAC chip and an OPA1632 operational amplifier, along with a sophisticated playback system. This technology is encased in an anti-vibration chassis to ensure the best possible performance for your cherished CDs. The player accommodates various formats, including CD, HDCD, SACD (CD layer), MP3, and WMA, and offers both digital and analog output options.

Each stage of the TY-1CD is separated to protect them from unwanted interference and interaction. This reduces the overall noise level of the device.

The ESS ES9028 DAC chip enables the Tonewinner TY-1CD to support input signal sampling rates up to 32-bit 384 kHz while maintaining SNR ≥ 110 dB and ultra-low distortion of -120 dB.

The ELNA filter and coupling capacitors provide improved signal processing. The result is warm bass and midrange and superb highs.

The OPA1632 operational amplifier in the TY-1CD has a differential architecture, which allows it to drive high-performance ADCs. Using this type of OPA offers many advantages:

The TY-1CD power supply stage uses a 50-watt transformer to independently power the CD player's digital and analog circuits. This high-performance transformer provides ample headroom to power the TY-1CD even when handling the most complex signals.

Tonewinner TY-1CD specifications:

• Product Type: CD Player
• DAC: ESS ES9028
• OPA:OPA1632/OPA1612
• Input: CD

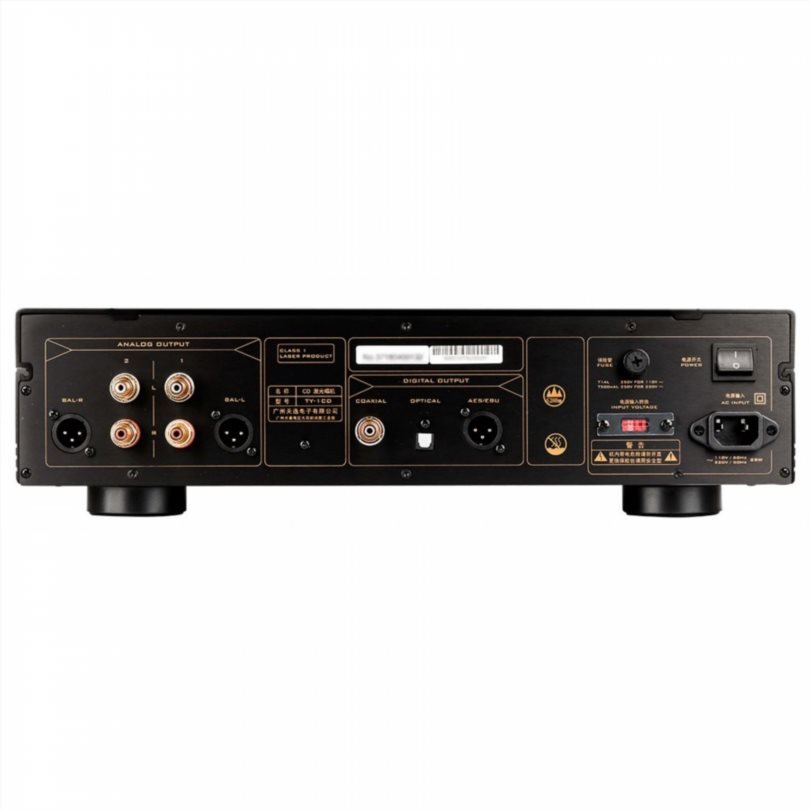

• Outputs: 1x balanced analog XLR output/2x analog RCA outputs//1x coaxial SPDIF output/1x optical Toslink output/1x AES/EBU output
• Reference output voltage: 2V±1dB(1KHz)
• Crosstalk: ≥ 105 dB(1 kHz)
• THD: ≤ 0.002%(1KHz)
• SNR: ≥ 110 dB (A-weighted)
• Frequency response: 20Hz-20kHz (+0/-1dB)
• Compatible disc formats: CD, HDCD, SACD (couche CD), MP3, WMA
• Power supply: ~110/220 V (50 Hz/60 Hz)
• Weight: Net: 10.7 kg
• Dimensions: 444 x 114 x 410 mm
