Tonewinner TY-30: Beautifully integrated CD player

The Tonewinner TY-30 is a beautifully integrated CD player that uses quality components to efficiently play CDs. The chassis is perfectly damped to greatly limit vibrations that can affect playback and stability.

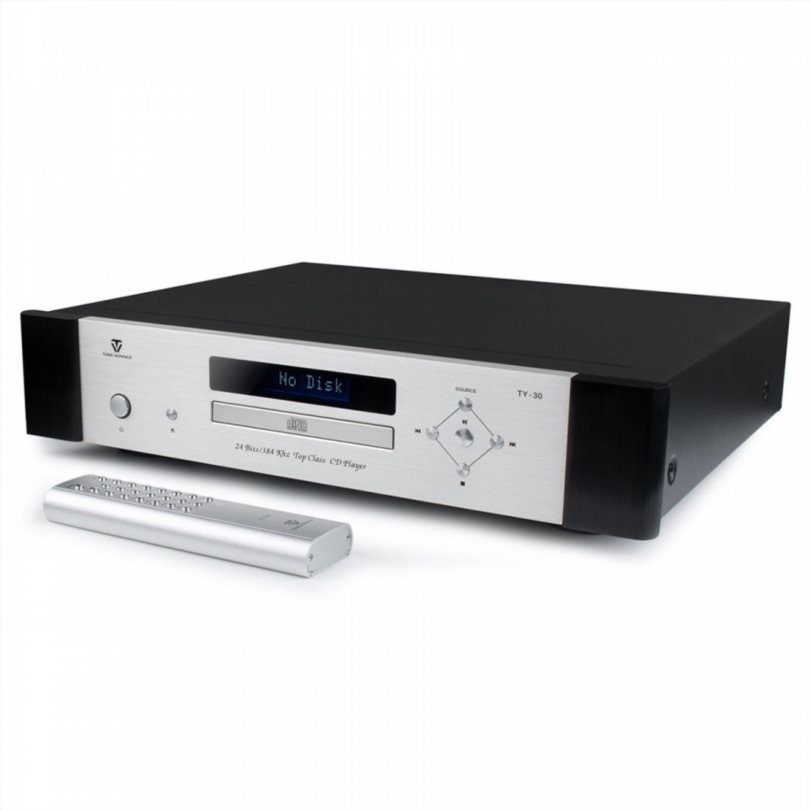

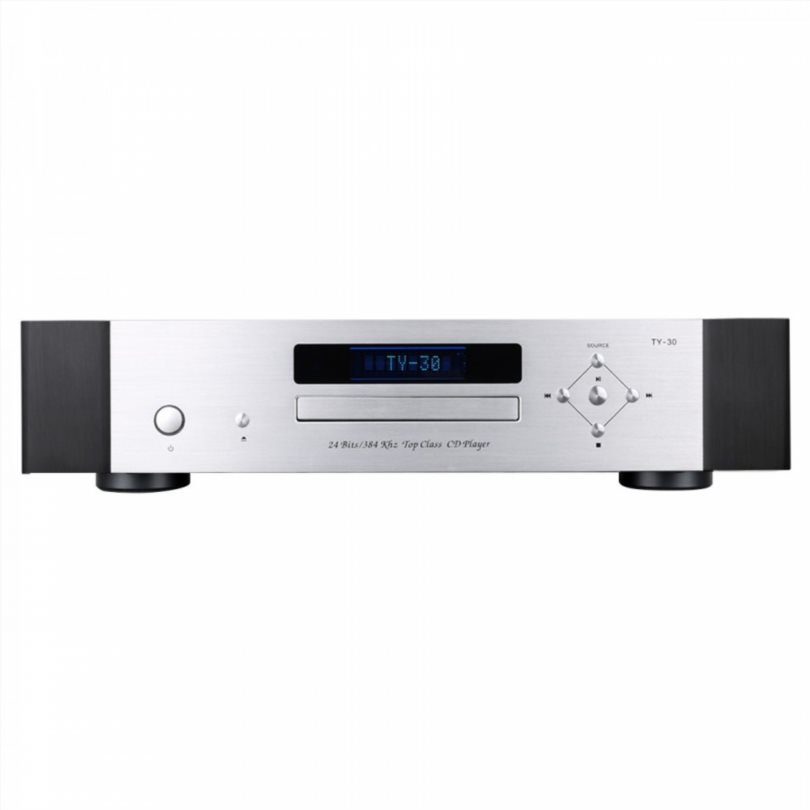

Tonewinner TY-30 has a classic and discreet design. Therefore, it will easily fit into a HiFi cabinet without standing out from the rest of the system. The chassis has a thick brushed aluminum front panel that looks great. It is also mounted on effective anti-vibration feet.

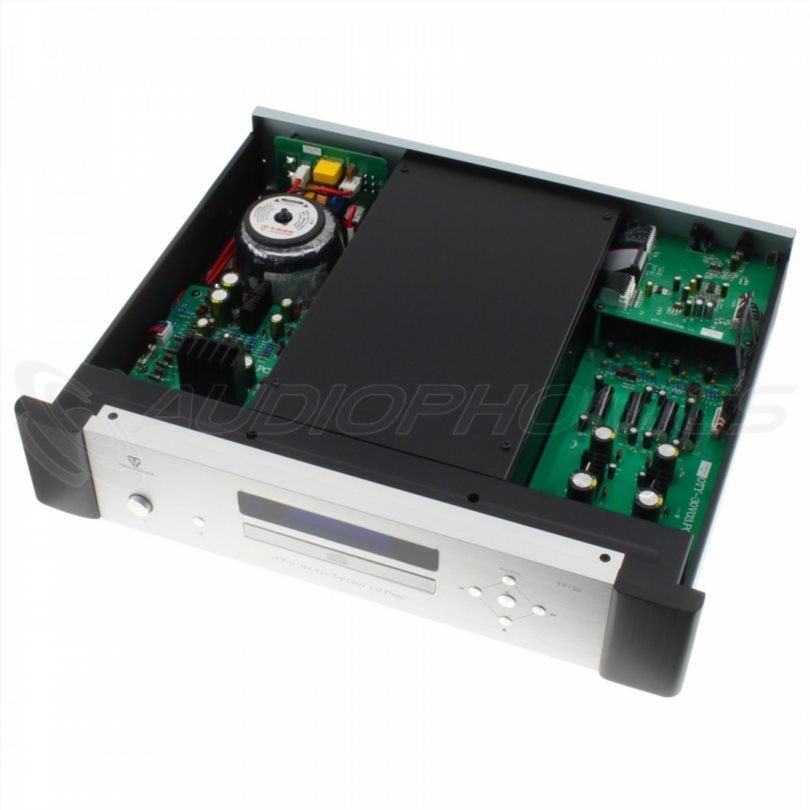

The built-in CD player has an optimized design for highly efficient playback. It is physically isolated from other circuits to limit interference and is mounted on an anti-vibration base for optimal stability.

The TY-30's digital-to-analog conversion section uses an Analog Devices AD1955 chip that supports PCM up to 24-bit 192 kHz and provides distortion levels below -110 dB. This chip ensures the accurate and transparent sound of this CD player.

Characteristics of Tonewinner TY-30:

• Product Type: CD Player
• Inputs: 1* coaxial/1* optical Toslink

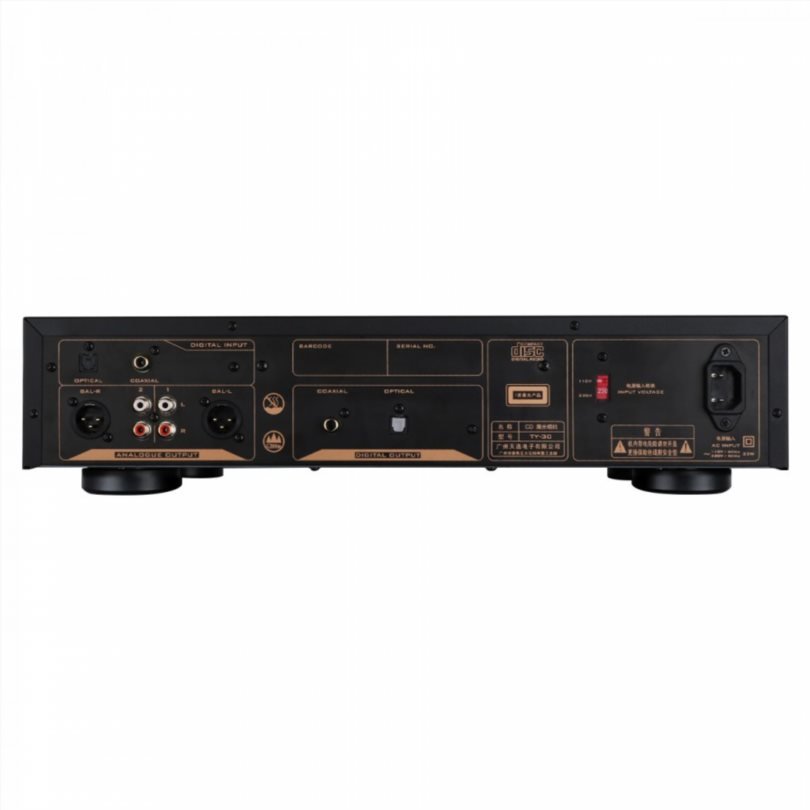

• Outputs: 1* coaxial/1* optical Toslink/2* stereo RCA/1* stereo XLR
• DAC chip: AD1955
• Output voltage: 2V ±1dB (1kHz)
• Crosstalk: ≥ 104 dB (1 kHz)
• Frequency response: 20Hz~20kHz (+0/-1dB)
• THD: ≤ 0.005% (1kHz)
• Supply Voltage: 110-230VAC 50/60Hz (switchable)
• Dimensions: 444x370x106 mm
• Weight: 8.3 kg
• Color: black and silver
