Arcam AVR10: High-performance AV receiver

The Arcam AVR10 is a high-performance audio video receiver that delivers stunning realism for the ultimate home theater experience. With an impressive 12-channel surround sound solution and the use of all the latest codecs from Dolby, DTS and IMAX Enhanced, the AVR10 demonstrates audio quality and engineering excellence. The Arcam AVR10 features efficient Class AB amplification for a high level of transparency that delivers the most immersive sound. The audiophile listening experience is optimized with full 12-channel Dirac Live® calibration on board, as well as native mobile device streaming using your choice of native app via Apple Airplay2 or Google Chromecast.

The Arcam AVR10 receiver supports Dolby Atmos three-dimensional sound format (5.1.2 configuration). To use the expanded 7.1.4-channel configuration, you must supplement the system with a 4-channel power amplifier or two stereo speakers. It is possible to work with the DTS:X 3D audio format, access to which will open after a software update. The highly efficient Dirac Live speaker auto-calibration system allows you to take measurements using a microphone at 9 points and process the results on a computer with subsequent loading of the data into the AV receiver. The power supply provides 60 W of power for each of the 7 channels (at 8 ohms).

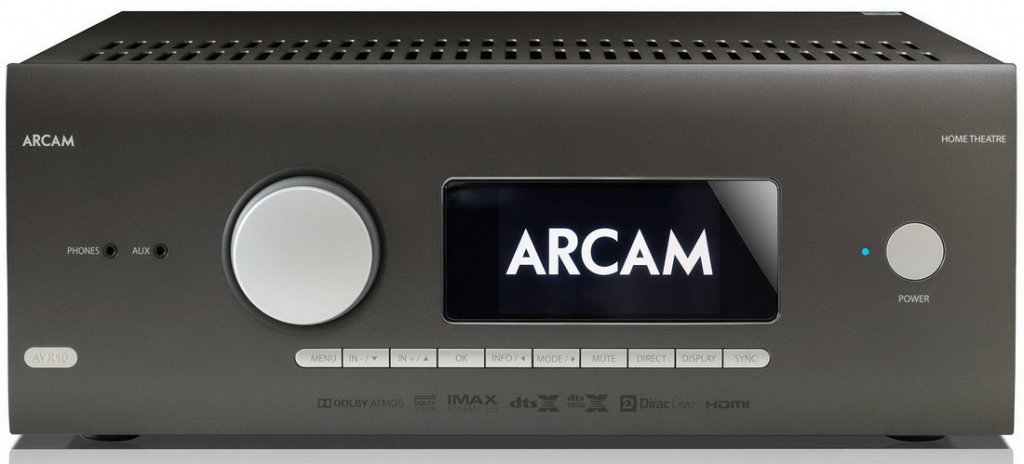

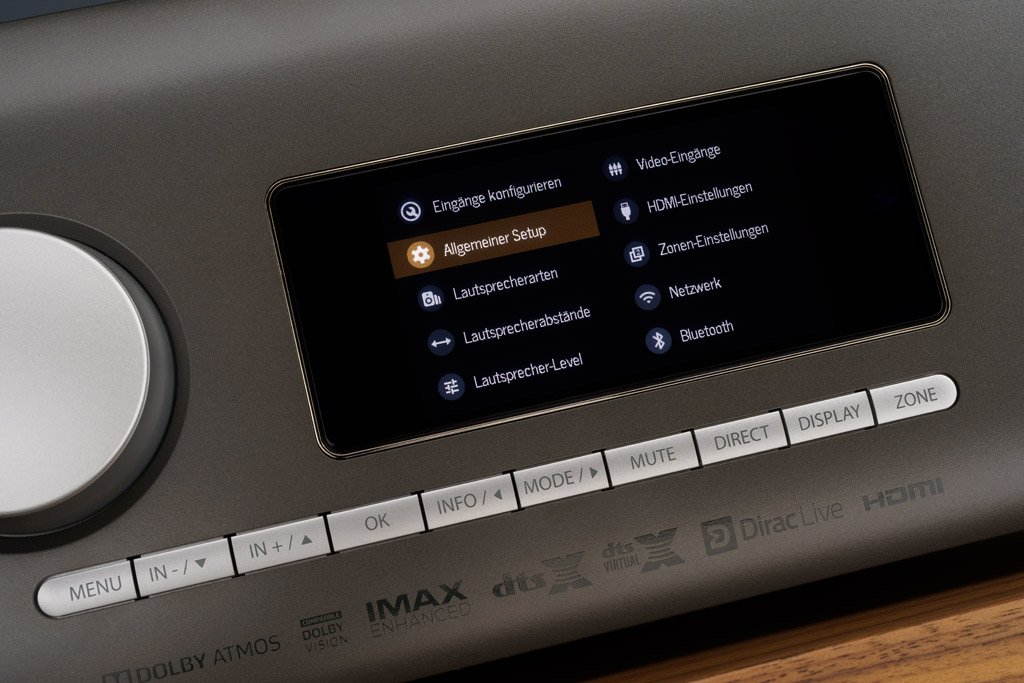

The massive body is equipped with a large volume control knob installed on the left side of its front panel. To the left of the knob is the display, and below it are ten buttons that serve to select a source, work with the menu, enable Direct pure stereo sound mode and activate other functions. On the left side of the facade there is a mini-jack for headphones, a 3.5 mm Aux input, a power/standby button and an operating mode indicator.

The receiver has an FM tuner and a DAB/DAB+ digital tuner. Audio files from computers and servers on this network are played over a local network via the Ethernet port. Not only compressed formats are played, but also lossless content. There is built-in support for online services vTuner and Spotify Connect. The kit includes a universal remote control. You can also control Arcam AVR10 using the MusicLife application via iOS devices or over the network using an IP address.

The model is equipped with HDMI ports version 2.0a (7 input and 2 output, including one with return channel support and one for an additional zone), which work with 4K resolution (Ultra HD), 3D video and support the HDCP 2.2 protection protocol. Using one of them, you can broadcast HD video from mobile gadgets thanks to the support of the MHL function. There are many digital and analog connectors for switching, incl. 7.2.4-channel pre-stage output, as well as USB for external drives. There is an RS-232 interface, trigger outputs, IR connectors, etc. You can connect to the speaker using 7 pairs of screw terminals.

Characteristics Arcam AVR10

Number of processor channels 12.1
Number of amplification channels 7
Output power 60 W per channel (8 Ohms, 0.2% THD, all channels work), 85 W per channel (4 Ohms, 0.2% THD, all channels work)
Input Sensitivity/impedance 1, 2, 4 V/47 kOhm (custom setting)
Frequency range 20 Hz – 20 kHz
Signal-to-noise ratio 110 dB (Direct)
Built-in decoders (main) Dolby Atmos, DTS:X, Auro-3D, DTS Neural :X, Dolby Digital Plus, DTS-HD High Resolution Audio, Dolby TrueHD, DTS-HD Master Audio
Auto-calibration system Dirac Live
Bluetooth yes
AirPlay 2 support yes
Chromecast support yes
Direct mode yes
Crossover frequency adjustment yes
Upscaling to 4K UltraHD yes, for digital and analog video signals
Inputs 7 HDMI with support for 4K Ultra HD/60 Hz, HDR10+, HGL, Dolby Vision and Dynamic HDR, 2 optical, 4 coaxial, 7 linear (one on the front panel)
Outputs 2 HDMI, optical, subwoofer, Pre output -Out from the processor (12 channels), to the second zone, to headphones Speaker
outputs 7 pairs of screw terminals
Other switching Ethernet, RS232, 2 trigger outputs, 2 inputs for IR sensors, USB for software updates, jacks for FM and Wi antennas -Fi
Power consumption 340 W, 0.1 W in Standby mode
Dimensions (WxHxD) 433x171x425 mm
Weight 16.5 kg
