Denon AVC-X3800H: Affordable AV receiver with flagship specs

The Denon AVC-X3800H AV receiver has almost the same functionality as the model with the AVC-X4800H index , but due to a slightly simplified design, it is offered at a more affordable price. The device is equipped with nine channels of sound amplification and has Dolby Atmos and DTS:X decoders, with the ability to build systems in these formats in configurations up to 7.2.2 or 5.2.4. The AV receiver also provides the ability to obtain virtual 3D sound in the absence of special high-altitude acoustics in the system.

If desired, the home theater system can be expanded by connecting additional power amplifiers to the 11.2-channel outputs from the AV receiver processor. Audyssey MultEQ XT32 auto-calibration system is provided to easily adjust surround sound depending on your listening conditions. Like the older models in this series, the Denon AVC-X3800H has the prestigious IMAX Enhanced certification.

The AV receiver is equipped with seven HDMI inputs and three outputs, supporting HDCP 2.3, HDR10+, Dolby Vision and Dynamic HDR. In addition, a signal source with 8K resolution can be connected to one of the Denon AVC-X3800H’s HDMI inputs, and image upscaling to this standard is possible for all HDMI inputs of the AV receiver. The device also has an eARC audio return channel function, which allows you to broadcast sound from a connected TV to it. VBR and QFT technologies allow you to optimize picture quality in computer games.

Denon AVC-X3800H has all the necessary functions for playing music in streaming mode. Support for popular online services is provided, including TIDAL and Spotify, as well as the ability to play music from network devices. The device has Wi-Fi, AirPlay 2 and Bluetooth, which works for both reception and transmission. Of course, the Denon AVC-X3800H features proprietary HEOS wireless multiroom technology, and in addition, the device is certified for use in Roon systems. To control the AV receiver, in addition to the standard remote control, you can use a proprietary mobile application or Alexa and Google Assistant voice systems.

Premium quality with IMAX Enhanced, the latest technology from DTS that sets a new standard for picture, sound, scale and clarity in home cinema. See clearer, brighter images. Feel the immersive sound and enjoy premium content digitized with IMAX technology. You can enjoy an enhanced IMAX experience starting with configuration 5.1.4. Requires IMAX Enhanced compatible TV or projector.

Specifications Denon AVC-X3800H

Number of processor channels 11.2
Number of amplification channels 9
Output power 105 W per channel (8 Ohm, 1 kHz, 0.08%, two channels working), 180 W per channel (6 Ohm, 1 kHz, 1%, one channel works)
Input sensitivity/impedance 200 mV/47 kOhm (line input)
Frequency range 10 Hz – 100 kHz (+ 1 dB, – 3 dB, Direct mode)
Signal-to-noise ratio 100 dB (Direct)
Built-in decoders (main) Dolby Atmos, DTS:X, DTS Neural:X, Auro-3D, Dolby Digital Plus, DTS-HD High Resolution Audio, Dolby TrueHD, DTS-HD Master Audio, IMAX Enhanced
Audyssey MultEQ XT 32, Dynamic EQ, Dynamic Volume , Dynamic EQ, LFC, SubEQ HT
Enhancer for compressed music files Compressed Audio Restored
Supported audio file formats (USB, Ethernet, Wi-Fi) MP3/WMA/AAC/FLAC 192/24, WAV 192/24, ALAC 96/24, DSD 2.8/5.6, JPEG
Supports Bluetooth version 2.1 + A2DP with Advanced Audio Distribution technology
Supports AirPlay 2
Supports voice control Alexa, Google Assistant
Supports TIDAL, Spotify, Internet radio services
Supports Denon application for iPhone and Android
Direct mode
Frequency control crossover
Upscaling up to 4K UltraHD is available, for digital and analogue video signals
Upscaling up to 8K
Inputs 7 HDMI with support for 8K Ultra HD/60 Hz, HDR10+, HGL, Dolby Vision, Dynamic HDR, 2 optical, 2 coaxial, 5 linear, for vinyl player, USB for portable media

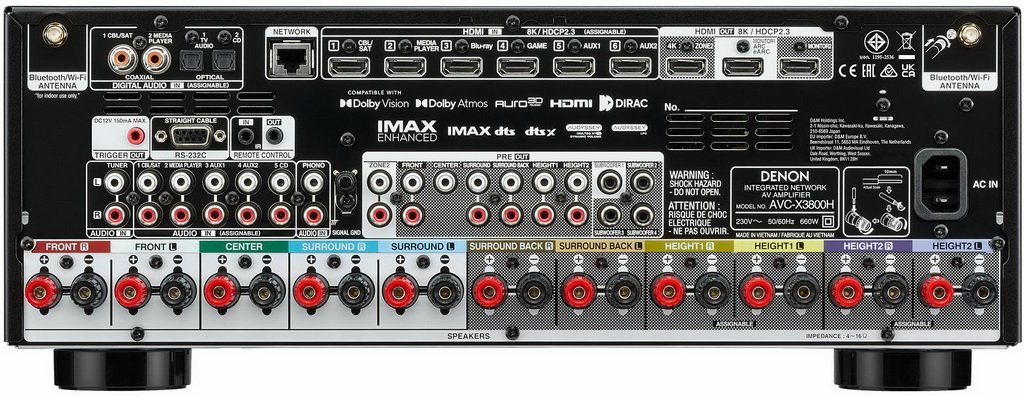

Outputs 3 HDMI (1 eARC, 2 with 8K support), 2 subwoofer outputs, Pre-Out output for the second and third zones, 11.2 output from the processor, 2 composite, 6.3 mm headphone jack Speaker
outputs 11 pairs of screw terminals
Other Ethernet switching, remote control system in/out, 2 trigger outputs, mini-jack for calibration microphone, RS232, Wi-Fi antenna jacks (2)
Roon certification
Power consumption 660 W, 0.1 W in mode Standby
Dimensions (WxHxD) 434x167x389 mm
Weight 12.5 kg
