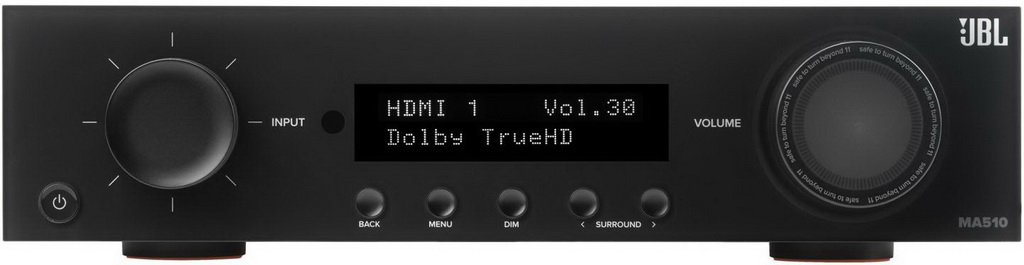

JBL MA510: The perfect hub for watching videos and playing games

With enhanced connectivity and high-quality sound, the JBL MA510 is the perfect hub for watching videos and playing games. Equipped with HDMI ports compatible with 8K and 4K/120Hz resolution, the JBL MA510 is ready to handle the latest generation of video and gaming devices. Built-in Bluetooth and Wi-Fi provide equally impressive wireless music playback. With 5.2 channels and plenty of speakers, your room will soon be filled with sound and you will be the center of attention. Despite its technological prowess, the MA510 is easy to set up and use.

With four dedicated HDMI inputs that are compatible with 8K resolution, this JBL AVR is ready for next-gen TVs and games. HDMI and eARC support is now standard, too. This allows uncompressed audio from your TV to be transmitted back to the receiver. HDMI eARC is ideal for getting the best sound from any Smart TV apps and services you may be using.

HDMI 2.1 support also makes the MA510 an ideal device for connecting a gaming console. 4K/120Hz support and VRR (Variable Refresh Rate) ensure maximum resolution and image clarity. Auto Low Latency Mode (ALLM) eliminates lag and frame tearing, providing a smoother and more responsive gaming experience. The

advanced HDMI interface also supports a wider range of HDR (High Dynamic Range) video formats. These include Dolby Vision and HDR10+, which enhance picture realism by transmitting dynamic metadata to your TV. In short, whether your content is Dolby or HDR encoded, the MA510 will provide you with a fully immersive experience.

With 5.2 channels, you can connect front, rear left and right speakers, as well as a center and up to two active subwoofers. This not only provides an enveloping sound through the rear speakers, but also clear dialogue from a dedicated center speaker. Using two subwoofers provides a more even distribution of low frequencies throughout the room, and also allows you to use smaller subwoofers to create the same (or higher) low frequencies.

With all-digital amplification, the MA510 is both powerful and energy efficient. With 75 watts of output power, it’s powerful enough for medium-sized rooms and easily outperforms your TV or soundbar. Download the free EZ Set EQ app and enjoy an easy-to-use equalizer to improve your room’s sound quality. The calibration system collects room acoustic data from each speaker and is a one-time process that takes just a few minutes.

With AirPlay 2 and Google Chromecast, you can easily connect all your smartphones, tablets, and compatible laptops/desktops and stream music wirelessly. Built-in Wi-Fi, which works with Apple and Android systems, provides easy access to a wide range of streaming music. Plus, you can connect your device via Bluetooth and stream video directly from it without having to use a Wi-Fi network.

JBL MA510 Specifications

Channels 5.2
Rated Power @ 8 ohms (20 Hz–20 kHz, 2 channels, 0.5% THD max.) 75 W RMS
Rated Power @ 4 ohms (20 Hz–20 kHz, 2 channels, 0.5% THD max.) 100 W RMS

Video Features

HDMI eARC
HDMI Audio Return Channel HDMI
Input Connectors 8K (HDMI 2.1, HDCP 2.3 up to 8K/60 Hz, 4K/120 Hz) 4
Advanced Gaming Features HDMI 2.1 Gaming-VRR, ALLM, QFT, HFR (4K@120 Hz)
HDR 10+, Dolby Vision

File Format

MP3/MPEG-4 AAC: Up to 48 kHz/320 kbps
WMA: Up to 48 kHz/192 kbps
ALAC: up to 192 kHz/24-bit
FLAC: up to 192 kHz/24-bit
PCM/WAV/AIFF: up to 192 kHz/24-bit
EZ/Set EQ
DA Converter 192 kHz/24-bit

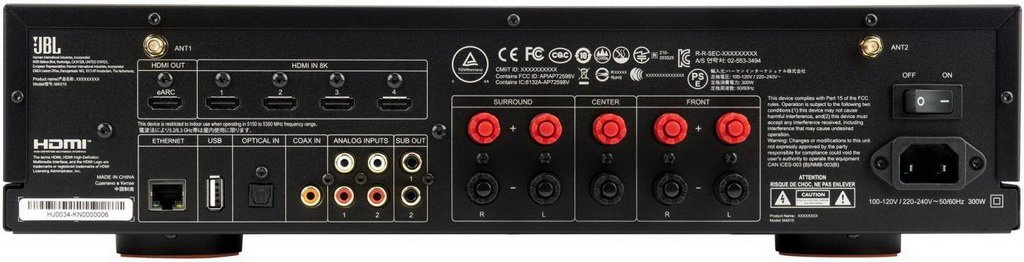

Connectivity

HDMI in/out 4/1
Wi-Fi Yes (2.4/5 GHz)
Bluetooth Receiver Yes (v4.1, Low Energy)
Digital Audio Input: 1 coaxial, 1 optical
Stereo Analog Input 2 unbalanced RCA
Pre-out (unbalanced RCA) Subwoofer 1, Subwoofer 2

Overall

Dimensions incl. feet and speaker terminals 109.9 x 432.0 x 347.6 mm
Weight 5.4 kg
