Magnetar UDP800: Classic 4K UHD Blu-ray Player

Magnetar's 4K UHD Blu-ray Player UDP800 is a full-size media player powered by the Media Tek MT8581 quad-core processor – offering advanced video decoding and processing technologies with support for 4K Ultra HD and HDR, including Dolby Vision and HDR10+, and delivers very clear and sharp images with rich flowers. The durable metal housing houses high-quality audio components with a custom transformer. Thanks to its ingenious engineering design, elegant and laconic design, the Magnetar UDP800 media player looks like a real embodiment of self-sufficiency and enhances the pleasure of watching movies and listening to music.

Magnetar UDP800 supports h265 and H264 formats, allowing you to play DVDs, Blu-Rays, 4K UHD and even media files. A clear and bright picture pleases the eye with many details. The Magnetar UDP-800 delivers stunning brightness, contrast and brilliant color. The image remains colorful and rich even in low light conditions or when using backlighting. The media player is compatible with all common standards, including HDR10, HDR10+ and Dolby Vision with high-quality HDR to SDR conversion, and supports BT.2020/BT.709/BT.601 color profiles.

The Magnetar UDP800 can upscale video to 4K resolution at up to 50/60 fps (3840 x 2160) – four times faster than Full HD 1080p and a significant improvement in home video quality. The new Magnetar UDP-800 can decode DSD64/128, multi-channel DSD64 and 192 kHz/24-bit PCM audio files, supporting AIFF, ALAC, APE, FLAC and WAV audio files. Thus, you get high quality 4K HD images with all the nuances of sound. The media player supports Dolby TrueHD and DTS-HD Master Audio, as well as Dolby Atmos and DTS-X, which provide the best panoramic audio with an immersive effect.

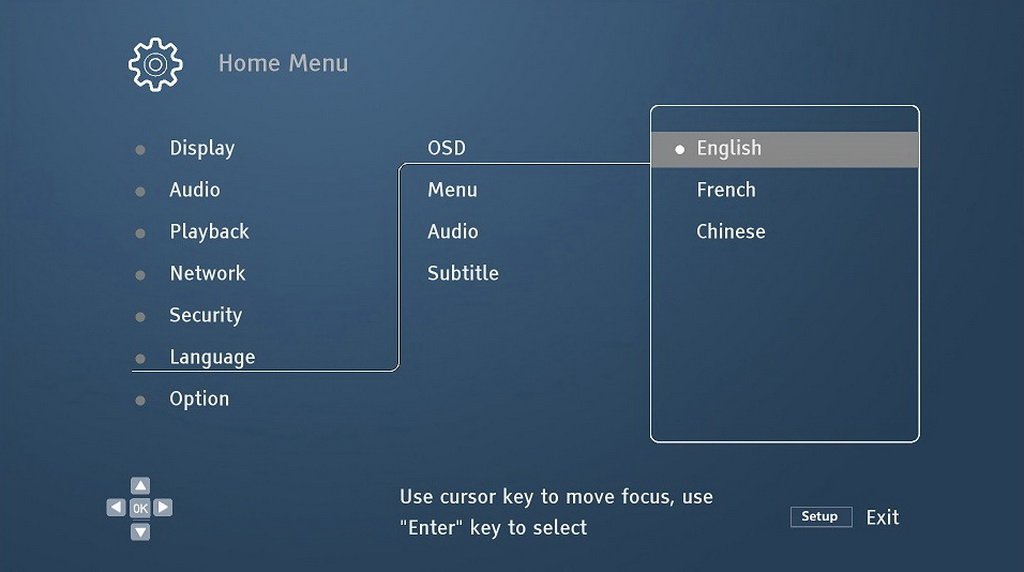

The well-designed and intuitive user interface provides easy navigation with easy access to various settings, USB devices and local networks. Magnetar UDP800 supports a variety of disc formats, including UHD-BD, BD, BD-R, BD-RE, DVD-R/RW, DVD+R/RW, DVD-Video, DVD-Audio, SACD, CD, CD-R/ R.W. In addition, USB drives with a capacity of up to 16 TB are supported, as well as direct access to a computer or NAS server over a local network using the DLNA or SMB protocol for even greater convenience.

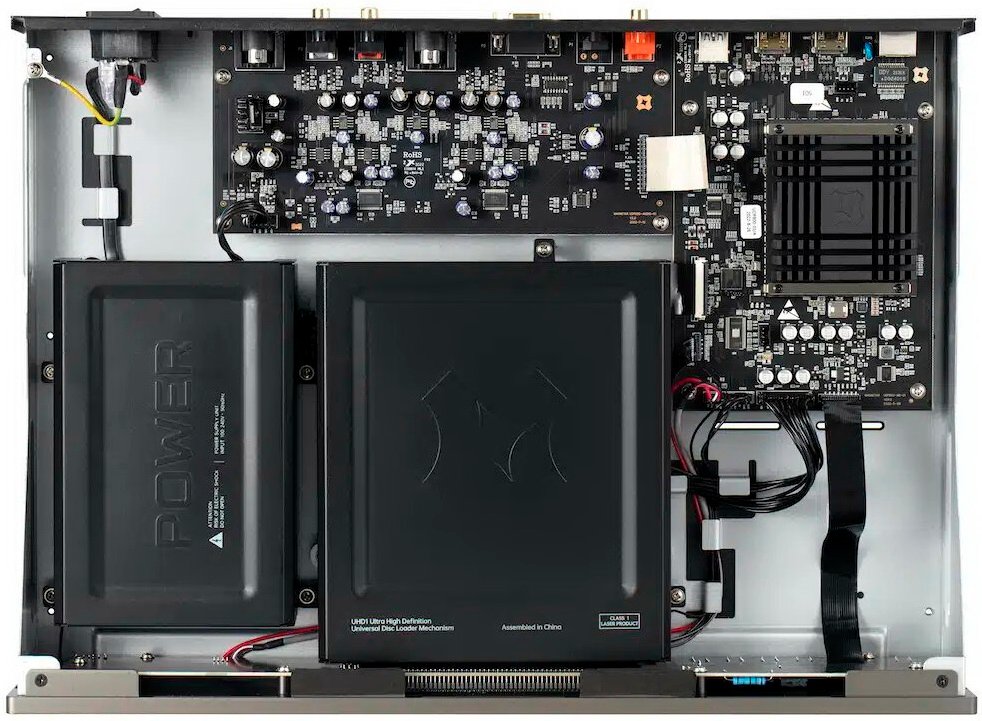

To reproduce sound without additional processing (Pure Audio mode), the UDP800 uses a special 4-layer printed circuit board with independent wiring for each channel. Two independent Burr-Brown PCM 1795 DACs are used for digital-to-analog conversion and signal processing of the left and right channels. And audiophile sound quality is provided by high-quality MUSES8920 operational amplifiers. The Magnetar UDP800 features balanced and unbalanced outputs on gold-plated XLR and RCA connectors, respectively. For those who value uncompromising sound quality, there is a Pure Audio mode that disables the audio signal processing circuits.

Magnetar engineers specifically selected a low-noise 60W transformer for the UDP800 with a two-stage filter and Japanese Rubycon electrolytic capacitors to meet the high transient response requirements required for surround and high-resolution audio applications. The insulated metal housing promotes stable operation and reduces noise levels, thereby helping to further improve sound and picture quality.

Achieving exceptional audio and video performance requires careful cabinet design. The metal housing of the Magnetar UDP-800 with a brushed aluminum front panel is highly durable and rigid, which significantly improves the quality of the transmitted signal. The dual-layer chassis design, up to 1.6mm thick, and 3mm steel plate at the base help reduce vibration and noise during playback. The most important internal components – the CD drive mechanism and the power supply – are separately shielded to reduce electromagnetic interference. With this design, the MAGNETAR weighs 8 kg! This is the perfect home entertainment system!

Magnetar UDP800 Specifications

Supported disc types: UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD-SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW , DVD±R DL, BD-R/RE

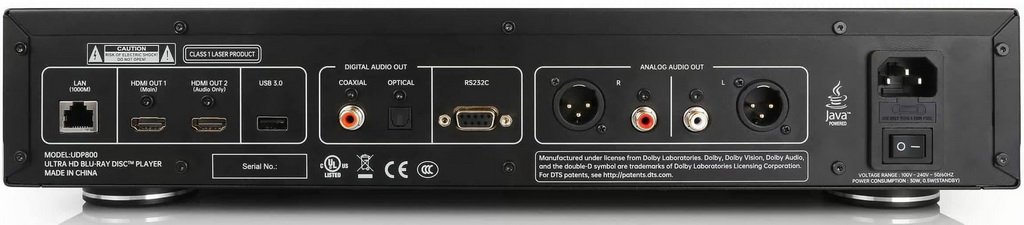

Outputs

• Analog audio: stereo
• Independent stereo analog audio outputs: balanced (XLR), unbalanced (RCA)
• Optical/coaxial audio outputs: up to 2 channels / 192 kHz PCM, Dolby Digital, DTS
• HDMI audio: up to 7.1 channel / 192 kHz PCM, up to 5.1 channel DSD, Bitstream
• HDMI video: UHD/p24 1080/1030p / 1030I / 720p / 576p / 576I / 480p / 480I

Frequency range: 20 Hz-20 kHz (- 3/+0.05 dB)
Signal-to-noise ratio: 120 dB
Total harmonic distortion + noise: <0.00018%
Output level: (RCA) 2.1 ±0.2 V rms; (XLR) 4.2 ±0.4 V rms
Dynamic range: 120 dB
Channel separation: 120 dB
Power: 100-240 VAC, 50/60 Hz
Power consumption: 30 W (Power-saving standby: 0.5 W )
Dimensions: 430 x 300 x 90 mm
Weight: 8 kg
