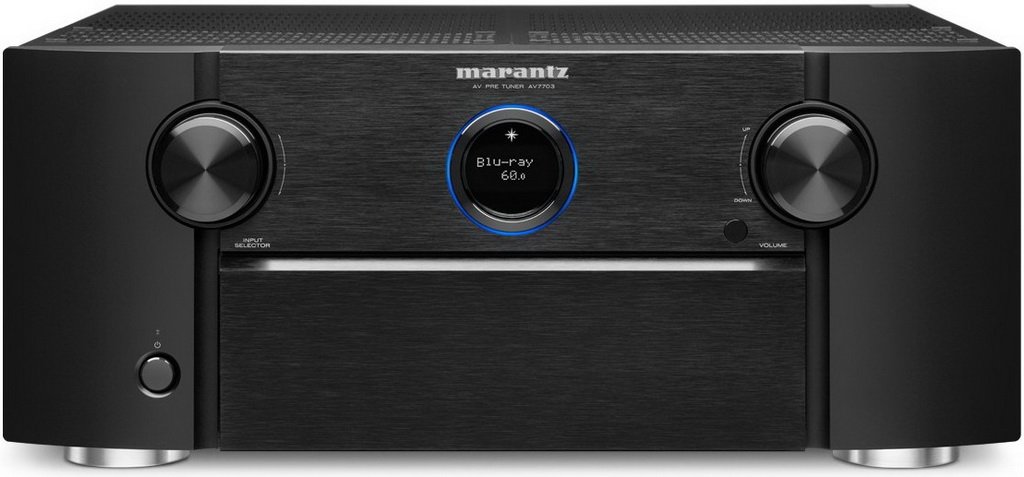

Marantz AV7705: AV processor equipped with the latest AV technologies

The Marantz AV7705 is an AV processor equipped with the latest AV technologies and designed for high-end home theater use. This unit has an 11.2-channel configuration and connects to an external power amplifier or active speaker systems. The separation of pre-amplification and audio decoding sections and final stages corresponds to the concept of building High End audio systems and allows you to obtain the highest sound quality both when playing multi-channel movie tracks and music.

The Marantz AV7705 features balanced and unbalanced outputs from an 11.2-channel processor, providing maximum AV system design flexibility. The output stages are built on the basis of proprietary HDAM modules, which ensures maximum dynamic range of sound and compatibility with various interconnect cables. The device is equipped with eight HDMI inputs (one of which is on the front panel) and three outputs, with the ability to transmit a signal with 4K resolution and support for HDR, BT.2020 and Dolby Vision. The signal from other inputs can be converted using a professional-grade video processor to HD/4K resolution and transmitted to the HDMI output. Of course, the Marantz AV7705 supports all the latest surround sound formats, including object-based Dolby Atmos, DTS:X and Auro-3D. Setting up a multi-channel system can be done using Audyssey MultEQ XT32 auto-calibration technology, which is able to take into account all the nuances of the placement of speakers in the room, as well as their individual parameters.

The AV processor supports all the necessary network technologies and can play music files from available devices (using Ethernet or Wi-Fi connections) and connect to popular streaming services. Also in the Marantz AV7705 arsenal are AirPlay 2 and Bluetooth technologies for direct connection with mobile devices. Marantz uses an AKM AK4458 DAC (384 kHz / 32 bit) on each channel, which should bring the sound to high-end levels.

The Marantz AV7705 AV processor can work with HEOS technology, on the basis of which you can create a wireless multiroom installation consisting of HEOS-supported components, including specialized wireless speaker systems. At the same time, a special application allows you to control the receiver, assign playback of certain content to various groups of HEOS devices, play different music tracks in different rooms, or synchronously broadcast music in all rooms at the same time. At the same time, access to such online services as Spotify Connect, Tidal, Deezer, Sound Cloud, Napster, TuneIn is supported.

The model is equipped with eight HDMI inputs that support HDCP 2.2, 4K (60 Hz), BT.2020 color space and video with extended dynamic range: HDR10, HLG, Dolby Vision. There are three HDMI outputs, incl. one for Zone 2 and one with support for Enhanced Return Channel eARC, working with Dolby Atmos and DTS:X codecs. There is an MM phono stage on board. There is a 7.1-channel input, 11.2-channel Pre Out on balanced and unbalanced connectors, as well as a set of S/PDIF inputs and an RS-232C interface. The processor can be linked to automated remote control systems such as Cresrton. The ideal companions for the Marantz AV7705 are the MM8077, MM7055 and MM7025.

The Marantz AV7705 delivers uncompromising audio quality and exceptional flexibility. Through periodic firmware updates conducted by Marantz, the AV processor will be able to gain enhanced functionality.

Characteristics Marantz AV7705

Number of channels 11.2
Built-in discrete amplifier modules HDAM yes
Current feedback supported
Input sensitivity 200 mV (analog input) Frequency
range 10 Hz – 100 kHz (+ 1, – 3 dB, Direct mode, analog connectors)
Signal-to-noise ratio 105 dB (analog line connectors, Direct mode)
Distortion factor 0.005% (20 Hz – 20 kHz, Direct mode, analog line connectors)
Output voltage 1.2 V (RCA), 2.4 V (XLR)
AM/FM tuner yes
Supports IMAX Enhanced certification yes, decoding and processing
Built-in decoders (main) Dolby Atmos (up to 7.1.4 with optional 2-channel power amplifier), DTS:X (up to 7.1.4 with optional 2-channel power amplifier), DTS Virtual: X, Auro-3D, DTS HD, DTS ES, DTS 96/24, DTS Express, DTS Neural:X, Dolby Digital Plus, Dolby TrueHD, Dolby Surround
Pure Direct modes, Direct has
DAC 11 x AKM AK4458
HEOS wireless ecosystem support yes
Scaler analog and HDMI source -> HDMI output: 1080p, 4K (3840 x 2160, 60/50 Hz)
Supported audio formats (via LAN and USB) MP3, WMA, AAC, FLAC, FLAC HD (24 bit/192 kHz ), ALAC (24 bit/192 kHz), WAV (24 bit/192 kHz), DSD (up to 5.6 MHz)
MDAX2 compressed audio enhancer
Gapless playback mode for FLAC, WAV, ALAC, DSD
Supported web services Deezer, Spotify Connect, TuneIn, Amazon Music and TIDAL, etc.
Auto-calibration system for speakers Audyssey MultEQ XT32
ISF certification for professional. video calibration yes
ISF (day)/ISF (night) modes yes
Audyssey Dynamic EQ/Dynamic Volume yes
Audyssey Sub EQ HT/LFC yes
Audyssey MultEQ Editor App support for finer correction of speaker calibration settings yes
Wi-Fi IEEE 802.11a/b /g/n, 2.4/5 GHz
Bluetooth version 3.0 + EDR
Support 4K Ultra HD 4K (50/60 Hz, 4:4:4 Pure Color)
HDMI signal pass-through in standby mode yes
3D video pass-through yes Pass
-through signal pass-through in 4K resolution yes

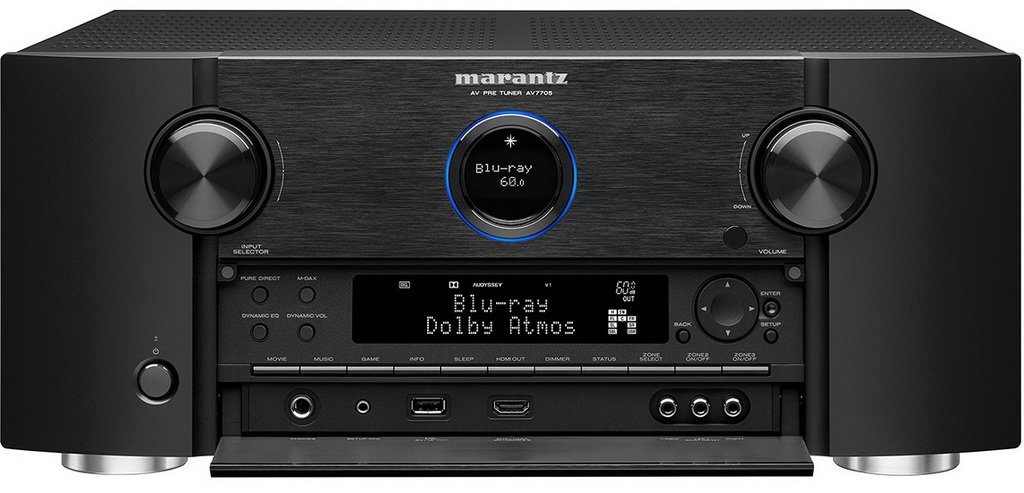

FL display 2 pcs.: round and regular two-line
AirPlay2 support yes
Control using the Marantz 2016 AVR Remote application for iOS, Android devices and Amazon Kindle Fire tablets yes
Control by IP address yes
Voice control with Amazon Alexa is supported with an Amazon Echo device
Number of additional zones 2
Setup Assistant system yes

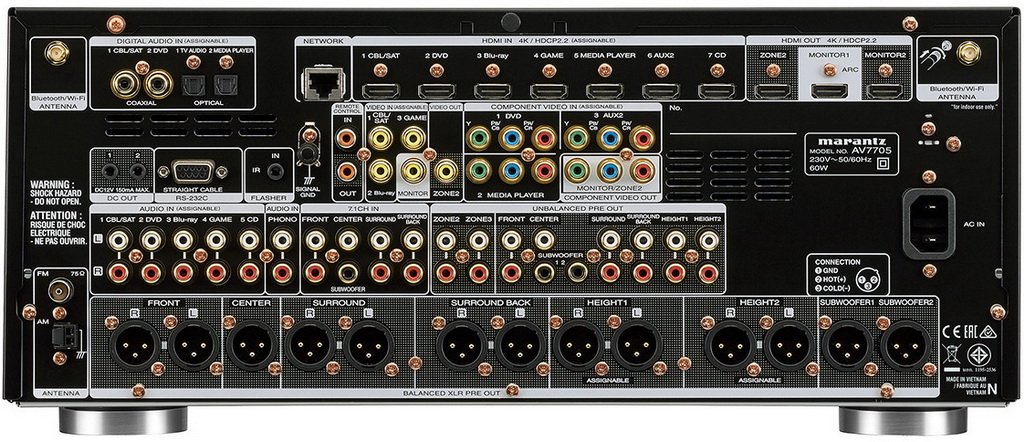

Inputs 8 x HDMI (4K/60 Hz, HDCP 2.2, HDR10, Dolby Vision, HLG, BT.2020, 4:4:4 Pure Color, 3D, 21:9 video, one HDMI is located on the facade under the cover), 3 component, 4 composite, 7.1 channel RCA, 6 linear RCA, MM phono input (RCA), 2 coaxial, 2 optical, USB ( with iPod/iPhone support), LAN port
Outputs 3 x HDMI (one with extended eARC return channel, one for zone 2), component, 2 composite, two RCA for zone 2 and 3, 11.2ch RCA, 11.2ch XLR , 6.3 mm headphone jack
Other connections 3.5 mm for calibration microphone, RS-232C, two trigger outputs (3.5 mm), IR input, 2 system bus connectors, ground terminal, AM/FM jacks antennas, two sockets for Wi-Fi/Bluetooth antennas
Support for the CEC control protocol for working with Smart TV yes
Support for ihiji Invision and Domotz Pro control systems for remote configuration of the AV processor yes
Power consumption 60 W, standby: 0.2 W
Remote control RC037SR
Dimensions (WxHxD) 440x185x411 mm (with antennas in horizontal position); 440x247x411 mm (with antennas raised); 440x185x392 (without antennas)
Weight 10.4 kg
