DALI Fazon LCR: Compact Danish Designer speakers

DALI FAZON is the result of Scandinavian design talents combined with a wealth of accumulated experience in the implementation of technological innovations. DALI FAZON uses drivers, materials and technologies developed for the legendary DALI IKON and MENTOR series.

The FAZON series is an excellent proof that, with the right approach, form and function can be allies. A perfect example is the flowing, natural contours of the die-cast aluminum housings. The elegant style and curved shapes are not just a whim of the designers. They also provide structural integrity and reduce vibrations – so all key elements contribute to the maximum musicality of these magnificent speakers.

DALI Fazon LCR can be used in all channels of the surround sound system. They have a nice design, protective grilles with invisible fixation and are able to organically fit into a modern interior. DALI Fazon LCR are based on the same emitters that are used in the high-class DALI brand series – Ikon and Mentor. Two low-frequency speakers in these speakers have a diameter of 4.5 inches, their diffusers are made of cellulose. The high-frequency emitter is equipped with a 28-mm fabric dome and an effective magnetic system. The speakers are connected to a crossover filter, made according to a simple scheme from high-quality components and tuned to 3000 Hz. The crossover filter is mounted in such a way as to minimize the length of the audio signal transmission chain.

The round frame of the tweeter reduces the diffraction of sound waves, and the rounded edges of the front panel of the speaker system serve the same purpose. In addition, this shape of the case allows you to effectively combat internal standing waves and other resonances that can color the sound. The aluminum speakers are made in a closed volume and are well damped.

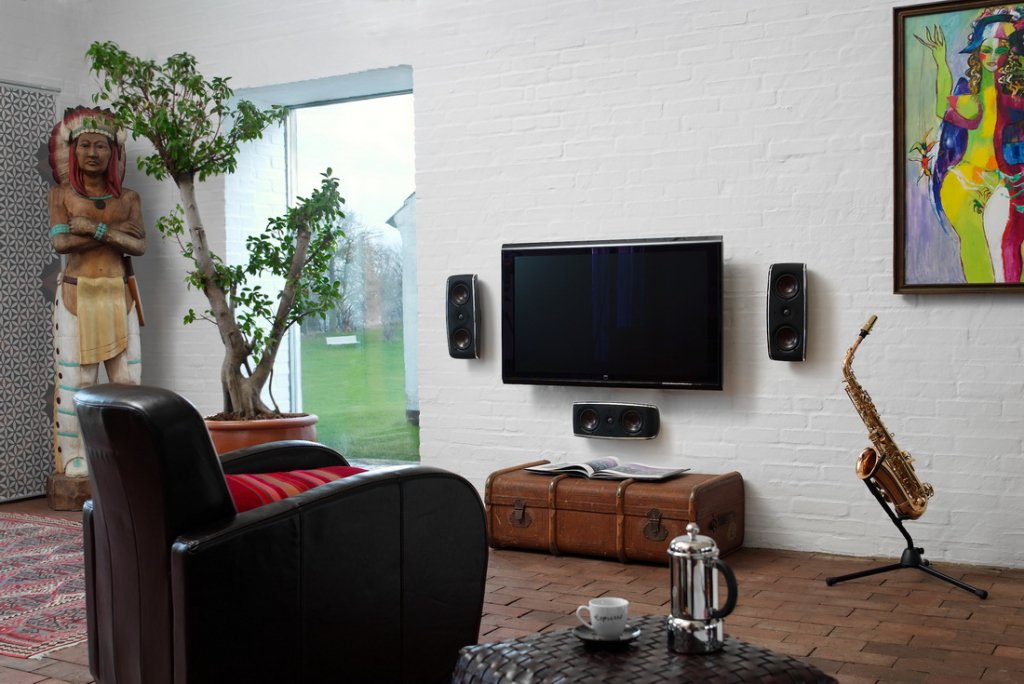

DALI Fazon LCR are equipped with wall brackets that allow you to mount the speakers both horizontally (for example, under or above the TV panel) and vertically – to the left and right of the screen. For ease of connection, the speaker cable is connected to the contact terminals located at the base of the wall bracket, after which the Fazon LCR is simply fixed to its holder. The connector with which the speaker system is connected has gold-plated contact surfaces. As a result, a simple, reliable and almost invisible connection is ensured, and the installation of the entire system is very neat. Optional floor stands are also available for DALI Fazon LCR.

Specifications DALI Fazon LCR

Type acoustic system that can be used as a wall, front, rear speaker or center channel
Frequency range 78-25000 Hz
Sensitivity 89 dB
Impedance 6 Ohm
Maximum sound pressure 107 dB
Speakers 28 mm tweeter with soft fabric dome
2 x 4.5 “midrange / woofer with diffusers reinforced with wood fibers
Crossover frequency 3000 Hz
Recommended amplifier power 15-120 W
Dimensions 385 x 157 x 107 mm
Weight 3.5 kg
