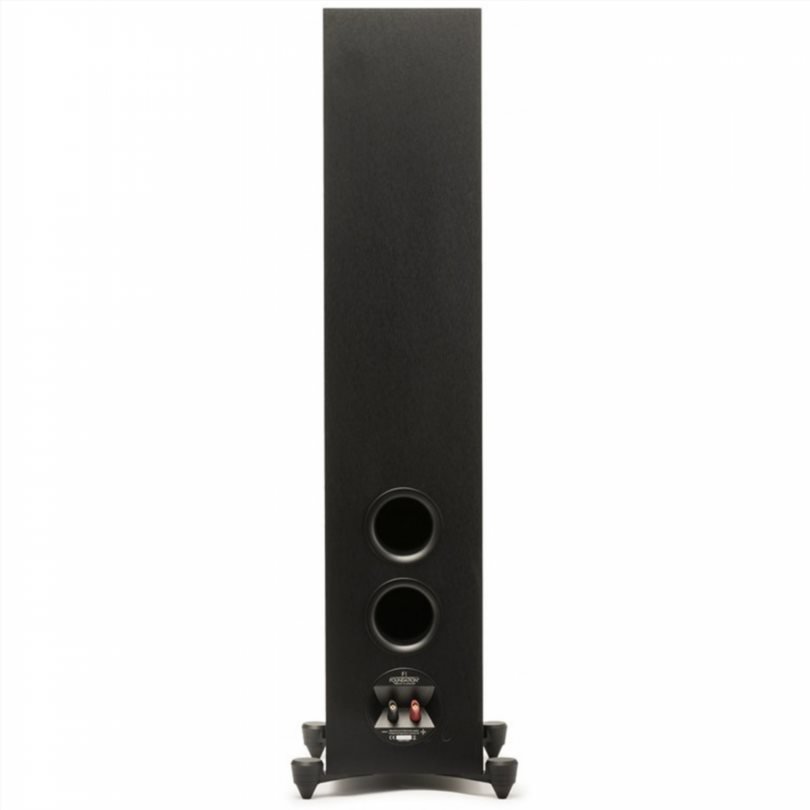

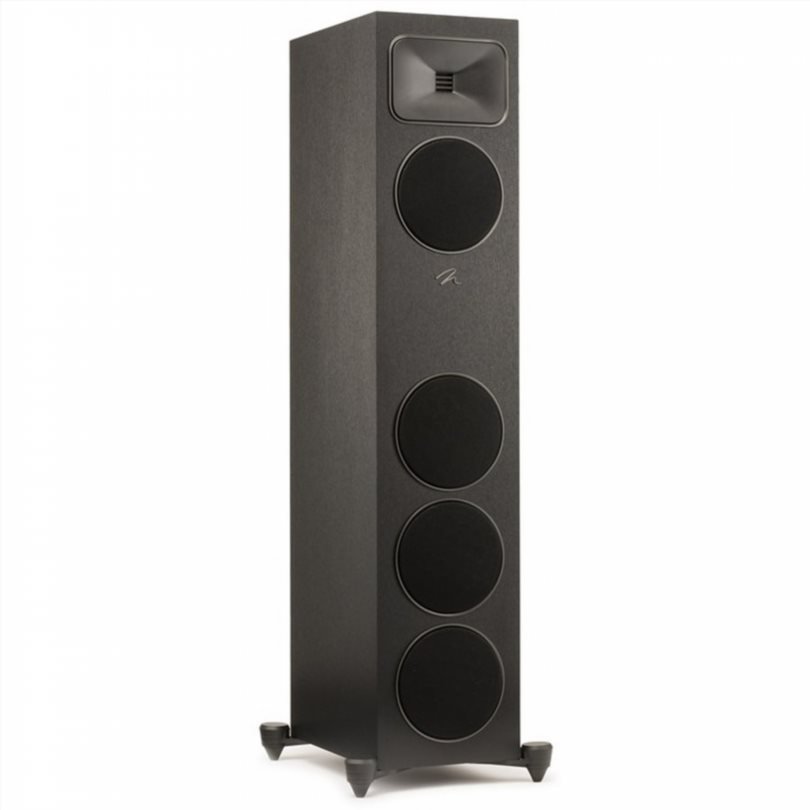

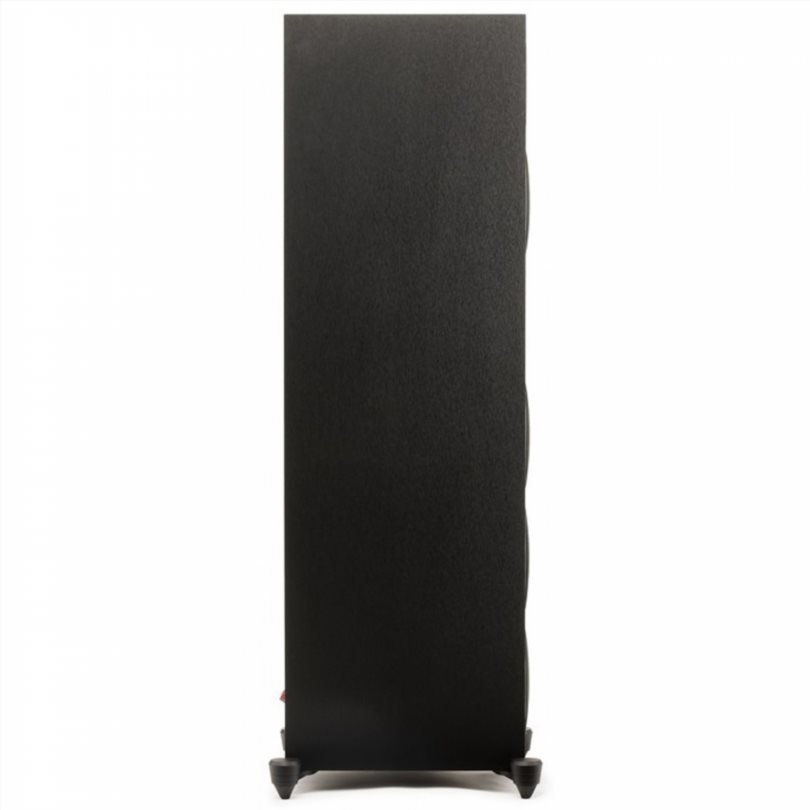

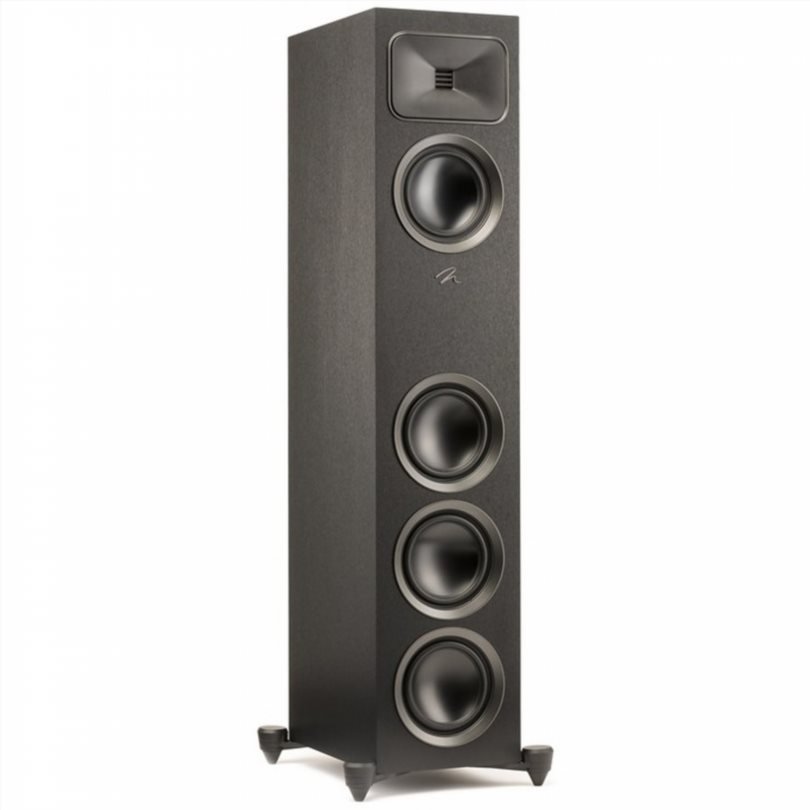

MartinLogan Motion Foundation F1: Compact floorstanding speaker

The Martin Logan Motion Foundation F1 speakers are ideal for those who want the performance of a floorstanding speaker but prefer a more compact design. With a smaller footprint than the Foundation F2 , the Foundation F1 is ideal for tight spaces. The star of the show is the S Gen2 Obsidian Folded Motion tweeter, which works in tandem with the Folded Motion waveguide to deliver detailed, crystal-clear audio. Four 5.5-inch aluminum cone drivers complete the design, delivering crisp mids and deep bass.

The Martin Logan Foundation range redefines accessibility by bringing together several of Martin Logan's renowned high-performance technologies, all at an affordable price. Drawing on 40 years of design and engineering expertise and delivering incredible performance, the Foundation Series is the perfect gateway to the world of HiFi. It is the ideal basis for a high-performance stereo or surround sound system.

Martin Logan loudspeakers are renowned for their exceptional articulation, detail and realism, no matter the listening environment. Using advanced driver technology and controlled dispersion, Martin Logan offers a unique listening experience.

The Martin Logan Foundation F1 waveguide provides superior control over tweeter dispersion, blanketing the listening area with detail and incredible precision. It also prevents reflections that interfere with sound reproduction and provides a sound that is more in tune with a larger irradiation area.

The Gen2 Obsidian Folded Motion tweeter delivers incredible audio performance unmatched by traditional technologies. By folding the ultra-thin material, Martin Logan was able to increase the radiating surface area in a small space. The large surface area, low weight and low excursion mean an incredibly fast and responsive tweeter, capable of reproducing the finest nuances with stunning detail and clarity.

Using technology from Martin Logan's Motion XT and Motion ranges, the F1 utilizes the exceptional properties of an aluminum diaphragm to achieve maximum midwoofer clarity, detail and efficiency.

Martin Logan Motion Foundation F1 Features:

• Product type: floor standing speakers
• Number of stripes: 3
• Frequency response: 41 Hz – 23 kHz
• Tweeter Dispersion: 90° (vertical) x 90° (horizontal)
• Sensitivity: 92 dB
• Impedance: 4 ohms
• Crossover Frequency: 240Hz/3700Hz
• Tweeter dimensions: 2.54 x 2.39 cm
• Midbass speaker dimensions: MF: 1x Ø14cm / LF: 3x Ø14cm
• Midwoofer materials: Aluminum cone/Die-cast aluminum frame
• Bass reflex: 2x rear ports
• Power: 15 – 200 W
• Dimensions (W x D x H): 21 x 36.65 x 105.2 cm
• Weight: 21.09 kg/column
