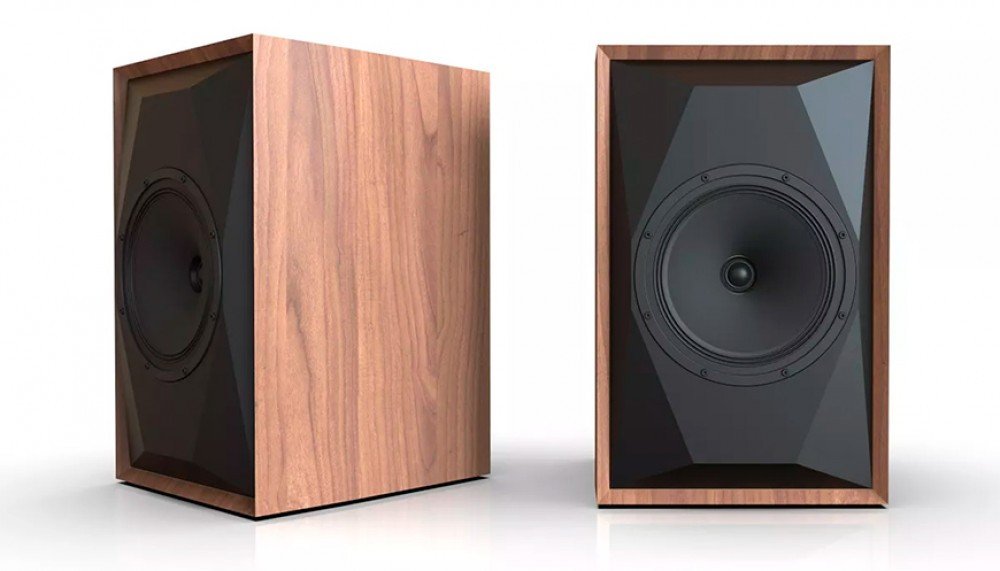

MoFi SourcePoint 10: Loudspeakers from the famous record label

The MoFi Electronics division of Mobile Fidelity , known for its audiophile editions of music on vinyl and SACD, continues to expand its line of audio equipment under its brand. Following the turntables, cartridges and phono stages, the turn came to the acoustic systems.

The new MoFi Electronics SourcePoint 10 shelf monitors , designed by Andrew Jones , made their world premiere at Capital Audiofest in mid-November in the United States.

The MoFi SourcePoint 10 speakers are the result of a year and a half of research led by acoustic engineer Andrew Jones. “No matter how much an audio product costs, I strive to deliver sound quality that far exceeds the asking price,” Jones said.

https://www.youtube.com/watch?v=_uW1n1fUaGo

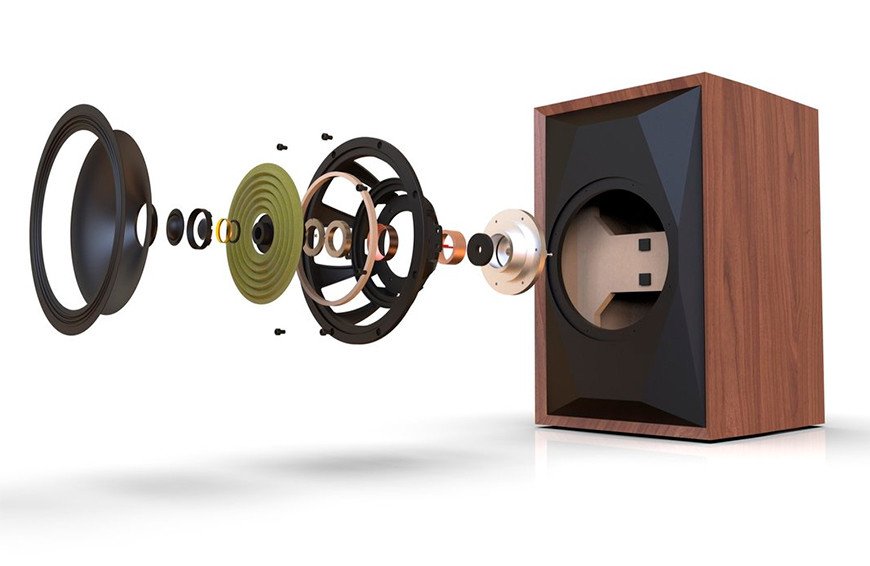

The MoFi SourcePoint 10 is a two-way speaker with a large 10″ coaxial driver designed by Andrew Jones specifically for this model. The middle and lower end of the range is entrusted to the driver with a conical paper cone with a diameter of 10 inches. Thanks to the large cone area, it was possible to expand the working area of ​​​​acoustics up to 42 Hz.

The use of a large driver led to the choice of a rather low crossover frequency – the tweeter in the MoFi SourcePoint 10 starts from 1.6 kHz up to 30 kHz. The tweeter features a 1.25″ soft dome and a large diameter voice coil. The dynamic heads of the SourcePoint 10 monitors feature a high-flux neodymium magnet system that MoFi Electronics calls Twin-Drive.

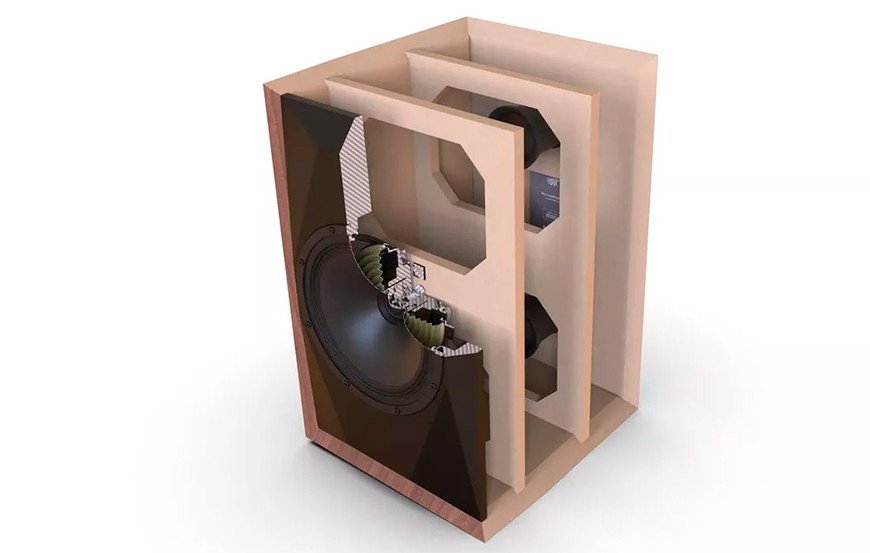

A lot of attention during development was paid to the body and the shape of the two-inch-thick front panel. The complex multi-faceted front panel of the speakers minimizes the diffraction of sound waves. Constructed from one inch thick MDF panels, the cabinet has an internal volume of 50 liters. The speakers have a sensitivity of 91 dB and a nominal impedance of 8 ohms with a minimum of 6.4 ohms. Thus, MoFi SourcePoint 10 will not become a difficult load for the amplifier. Two internal struts improve the acoustic performance of the cabinet, while the exterior is finished in natural wood veneer, with a choice of satin walnut or black ash.

The MoFi SourcePoint 10 speakers will be available in the US this December for $ 3,699 a pair.

MoFi SourcePoint 10 Speaker Specifications:

• Frequency range: 42 Hz – 30 kHz
• Rated impedance: 8 ohms, 6.2 ohms minimum
• Sensitivity: 91dB (2.83V/1m)
• Maximum input power: 200 W
• Number of bands: 2, crossover frequency 1.6KHz
• Tweeter: 1.25″ soft dome
• Woofer: 10″ paper cone
• Acoustic design: phase inverter, two ports on the back of the case
• Single speaker dimensions (W x H x D): 36.8 x 57.2 x 40.6 cm
• Single column weight: 21 kg
