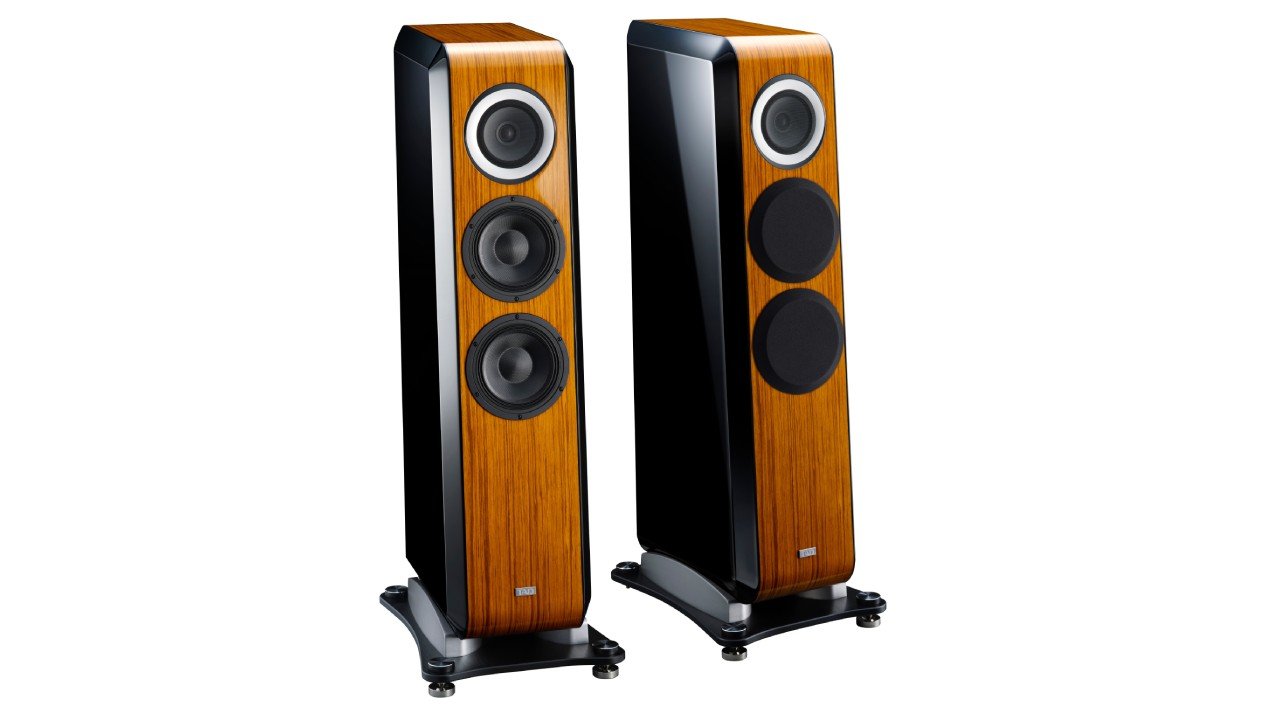

TAD Labs has announced the TAD-GE1 (Grand Evolution One) floorstanding speaker system as the newest addition to its
Evolution Series of hi-fi audio components. Borrowing internal technology and design language
from TAD’s top-of-the-line Reference TX Series as well as the distinguished wood-grain finish of the
critically acclaimed CE1TX standmount speaker, the GE1 epitomizes the very best of TAD.
“When we set out to design the GE1, we were aiming for a model that could sit between CE1TX and
the Reference One TX in both performance and price,” said Shinji Tarutani, CEO of TAD Labs.
“We combined key concepts from each speaker to bring this new vision to life, and we are very
pleased with the outcome.”
Error: Your Requested widget " codewidget-70" is not in the widget list.
- [do_widget_area footer-1]
- [do_widget_area footer-2]
- [do_widget_area footer-3]
- [do_widget_area footer-4]
- [do_widget_area home]
- [do_widget_area home_2nd]
- [do_widget_area page]
- [do_widget_area post_archive]
- [do_widget_area post_archive_2nd]
- [do_widget_area post_single]
- [do_widget_area primary]
- [do_widget id="codewidget-72"]
- [do_widget id="bimber_widget_posts-3"]
- [do_widget id="codewidget-39"]
- [do_widget id="bimber_widget_posts-2"]
- [do_widget id="codewidget-73"]
- [do_widget id="media_image-6"]
- [do_widget_area secondary]
- [do_widget_area widgets_for_shortcodes]
- [do_widget id="codewidget-74"]
- [do_widget id="codewidget-71"]
- [do_widget id="codewidget-70"]
- [do_widget id="bimber_widget_posts-4"]
- [do_widget id="codewidget-69"]
- [do_widget id="codewidget-37"]
- [do_widget id="codewidget-26"]
- [do_widget id="codewidget-16"]
- [do_widget id="search-1"]
- [do_widget id="nav_menu-8"]
- [do_widget id="codewidget-66"]
- [do_widget id="codewidget-54"]
- [do_widget_area wp_inactive_widgets]
- [do_widget id="bimber_sticky_start_point_widget-2"]
- [do_widget id="bimber_sticky_start_point_widget-3"]
- [do_widget id="codewidget-18"]
- [do_widget id="codewidget-20"]
- [do_widget id="codewidget-22"]
- [do_widget id="codewidget-23"]
- [do_widget id="codewidget-24"]
- [do_widget id="codewidget-25"]
- [do_widget id="codewidget-27"]
- [do_widget id="codewidget-29"]
- [do_widget id="codewidget-30"]
- [do_widget id="media_image-5"]
- [do_widget id="custom_html-5"]
- [do_widget id="custom_html-6"]
- [do_widget id="custom_html-4"]
- [do_widget id="media_image-2"]
- [do_widget id="codewidget-41"]
- [do_widget id="codewidget-43"]
- [do_widget id="codewidget-38"]
- [do_widget id="codewidget-19"]
- [do_widget id="codewidget-34"]
- [do_widget id="codewidget-47"]
- [do_widget id="codewidget-48"]
- [do_widget id="codewidget-45"]
- [do_widget id="meta-1"]
- [do_widget id="codewidget-46"]
- [do_widget id="block-21"]
- [do_widget id="codewidget-50"]
- [do_widget id="codewidget-53"]
- [do_widget id="codewidget-56"]
- [do_widget id="codewidget-57"]
- [do_widget id="codewidget-52"]
- [do_widget id="nav_menu-3"]
- [do_widget id="codewidget-42"]
- [do_widget id="nav_menu-2"]
- [do_widget id="codewidget-49"]
- [do_widget id="codewidget-58"]
- [do_widget id="codewidget-59"]
- [do_widget id="codewidget-60"]
- [do_widget id="nav_menu-4"]
- [do_widget id="block-24"]
- [do_widget id="block-25"]
- [do_widget id="block-22"]
- [do_widget id="block-23"]
- [do_widget id="nav_menu-5"]
- [do_widget id="nav_menu-6"]
- [do_widget id="nav_menu-7"]
- [do_widget id="codewidget-55"]
- [do_widget id="codewidget-61"]
- [do_widget id="codewidget-62"]
- [do_widget id="codewidget-65"]
- [do_widget id="codewidget-67"]
- [do_widget id="codewidget-68"]
Main Features
1) CST Driver delivers ideal single-point-source sound
The TAD-GE1 boasts TAD’s proprietary CST Driver, which controls the directivity of the
concentrically mounted midrange and tweeter over an extended frequency range from the point of
matching phase. This culminates in clear and solid imaging, as well as natural sound field
reproduction. The midrange cone controls the directional characteristic of the concentrically mounted
tweeter to bring the phase and directivity of their output in line in the crossover region. The result is
ultra-wide-range reproduction from 250 Hz up to 100 kHz by the CST Driver alone, while achieving
a natural attenuation characteristic and directivity pattern across all bands.
2) Tweeter features a beryllium diaphragm
The TAD-GE1 uses a light yet rigid beryllium diaphragm for its tweeter, manufactured with TAD’s
proprietary vapor deposition technique. TAD’s computer-analyzed optimization technique called
Harmonized Synthetic Diaphragm Optimum Method (HSDOM) has been applied in designing the
form of the diaphragm. This technique enables precise control of the diaphragm’s divided vibrations
and piston motions, which makes the ultra-wide-range reproduction of up to 100 kHz possible.
3) Midrange features a magnesium diaphragm having a high internal loss
The midrange’s diaphragm is made of magnesium, which is one of the lightest metals and has a high
internal loss—ideal characteristics for materials to be used for diaphragms. The application of hybrid
chemical conversion coating and painting to the surface gives it additional hardness and a yet greater
internal loss. The result is clearer, distortion-free midrange reproduction unaffected by unwanted
resonance. In addition, resonance in the mid-to-high frequencies generated by interactions between
the suspension and diaphragm is effectively controlled to achieve an even lower distortion and a
greater transient response.
4) Woofer employs a MACS II* diaphragm
A refined woofer diaphragm made of five layers of woven and non-woven aramid fabric optimizes
the physical property of the shell-shaped diaphragm that integrates the center cap and cone into a
single piece. The result is a richer and clearer bass and the smooth, coloration-free reproduction in
the mid-to-low frequency range. *Multi-layered Aramid Composite Shell Second Generation.
5) SILENT* enclosures combines strength with an outstanding vibration-dampening characteristic
The TAD-GE1 comes in a SILENT enclosure, which combines sturdy birch-plywood braces with
medium-density fiberboard (MDF) panels having a high internal loss to provide superb strength and
an outstanding vibration-dampening characteristic. Moreover, the combination of acoustic tubes
placed inside the enclosure as part of TAD’s ingenuous Acoustic-Filter-Assisted System Tuning
(AFAST), which reduces the low-order standing-wave mode, and acoustic absorbent carefully
chosen and placed inside effectively suppresses standing waves that would adversely affect the sound field and imaging performance of the speaker. *Structurally Inert Laminated Enclosure Technology
6) ISO Drive Technology incorporated into the TAD-R1TX speaker system and tweaked for the TAD-GE1
The ISO (isolation) Drive Technology, originally incorporated into the top-of-the-line TAD-R1TX
speaker system and tweaked for the TAD-GE1, was applied to the way the CST Driver was mounted
to the enclosure. With this technology, the CST Driver is acoustically and mechanically isolated
from the enclosure by a mount base and damper bushes. This is designed to keep vibration generated
by the CST Driver from traveling to the enclosure. As a result, the driver performs as it should,
reproducing waveforms accurately and delivering crystal-clear sound.
The sturdy base to which the CST Driver is mounted to the enclosure was machined from a 25 mm-
thick solid aluminum plate and is shaped in such a way to offset the slant of the baffle and orient the CST Driver directly toward the listener.
7) Bidirectional ADP System for rich, natural bass
The Bidirectional ADP (Aero-Dynamic Port) System positions a port on the bottom of the enclosure
with its openings to the front and rear of the enclosure. The port has a horn-shaped interior that
reduces port noise and achieves greater efficiency in driving the port to help reproduce clear and
responsive sound in the mid-to-low frequency range. The combination of the port flare made of die-
cast aluminum and the symmetrical front-back layout of the port effectively offsets the physical force
that vibrates the enclosure and, as a result, helps reproduce a powerful bass. Moreover, the 15 mm-
thick aluminum base plate attached to the bottom of the enclosure increases the stability of the
speaker system when placed on the floor and counterbalances the reaction caused by the powerful
driving force of the twin woofers.
8) Stunning grain wood enclosure
The elegant wood enclosure of the TAD-GE1 matches the TAD-CE1TX with a mirrored finish to
accentuate the wood’s natural grain. Skilled artisans spend hours finishing each enclosure with
meticulous care, first applying high-grade, clear coating to the surface and finishing with a surface
polish that is sanded to perfection.
“The GE1 delivers the sound field and imaging performance comparable to that of the Reference
Series speaker systems,” said Dave Malekpour, president of PAD HiFi, TAD’s US distributor. “It’s an
impressive speaker and we can’t wait to debut it at Capital Audio Fest in November.”
The TAD-GE1 will be available for purchase through select dealers starting November 2023. The
MSRP for the pair is $65,000 USD.
