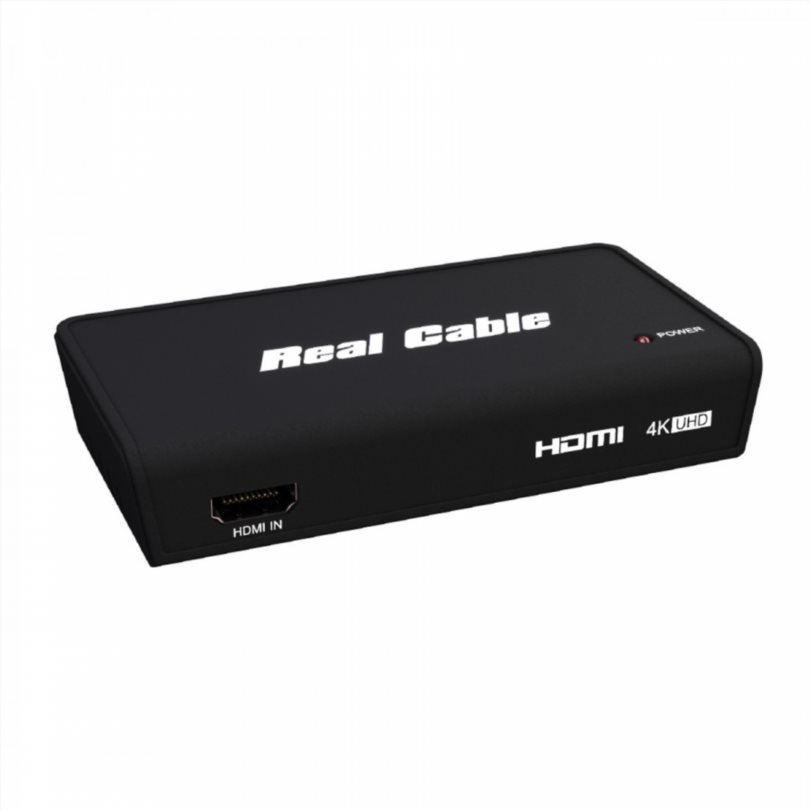

Real Cable HD2A113-4K: HDMI audio extractor

This compact HDMI audio extractor extracts the signal from a wired HDMI connection and distributes it as a digital audio signal via Toslink or Coaxial outputs. There is also a 3.5 mm jack analog output.

HDMI Audio Extraction and HDMI Video Passthrough: The extractor can feed audio from the HDMI connection of one of your devices (console, Blu-ray player, etc.) through two optical outputs (Toslink or Coaxial) or through a 3.5mm Jack output , allowing you to connect your sound system. In addition, the video signal passes through the HDMI output with retransmission up to 4K 60i/s.

Characteristics of Real Cable HD2A113-4K:

• Product Type: HDMI Audio Extractor
• Inputs: HDMI (Type A)

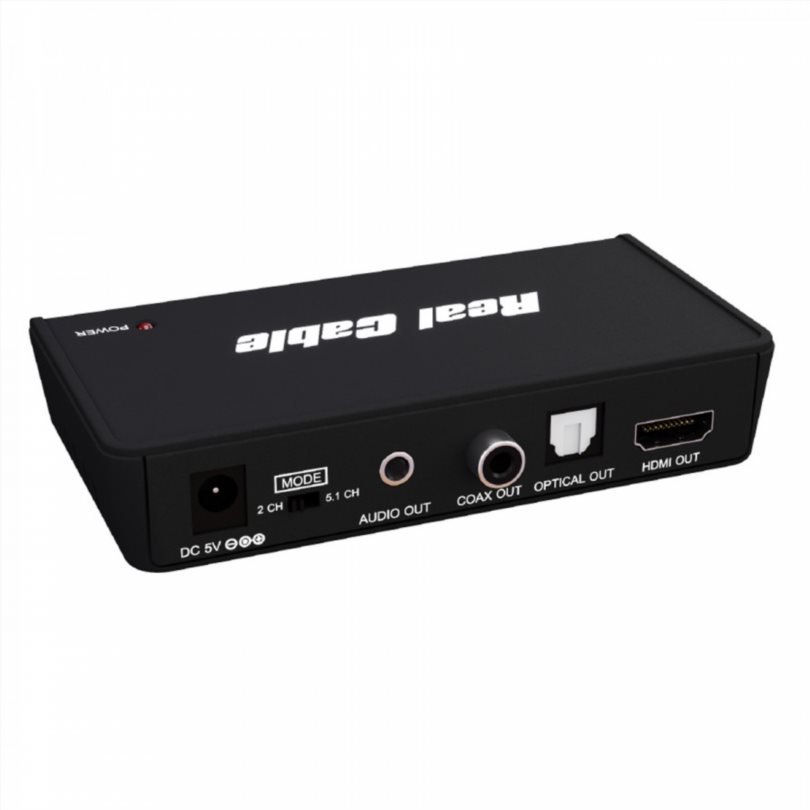

• Outputs: 1x HDMI (type A)/ 1x optical Toslink/ 1x optical coaxial/ 1x Jack 3.5 mm (analog).
• HDMI compatibility and supported video formats: HDMI 2.0/ HDCP1.4 et 2.2/ UHD 4K 60i/s/ HDR / HDTV 4K and pixel clock speed up to 600 MHz.
• Supported audio formats: Stereo mode 2.0 : PCM 2.0 (stereo) / Multichannel mode 5.1 : Dolby digital 5.1 / DTS 5.1 / Compatible with Dolby true HD lossless and DTS HD Master Audio
• Contact Plating: Gold
• Power: DC 5V 1A
• Dimensions: 120 x 60 x 30 mm
• Weight: 80 g
