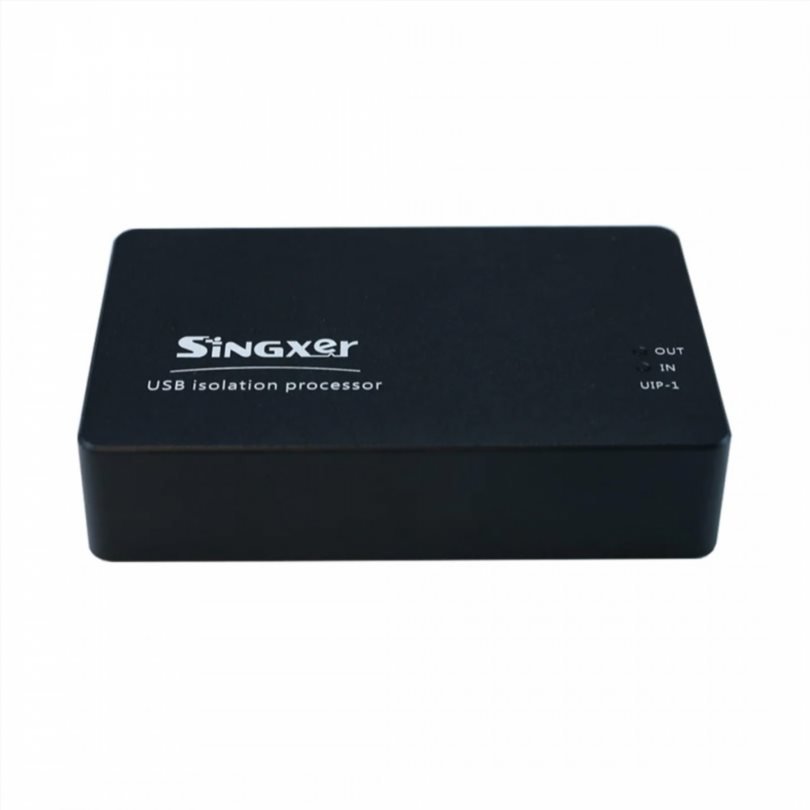

Singxer UIP-1 Pro: High-speed USB Isolator

Singxer UIP-1 Pro is a small, high-speed (480 Mbps), low noise (20 µs) USB 2.0 isolator with an isolation voltage of 2 kVRMS. It also supports USB 1.0 and 1.1 and is plug and play without drivers. In addition, it is equipped with ESD protection up to 15,000 V IEC (air discharge). UIP-1 Pro is equipped with a USB-B input operating at 5V and a USB-A output with a maximum output current of 1A. The power connector is a 5.5/2.1mm DC Jack and accepts 6 to 9 DC voltage V (7.5 V recommended).

Isolates the signal from interference

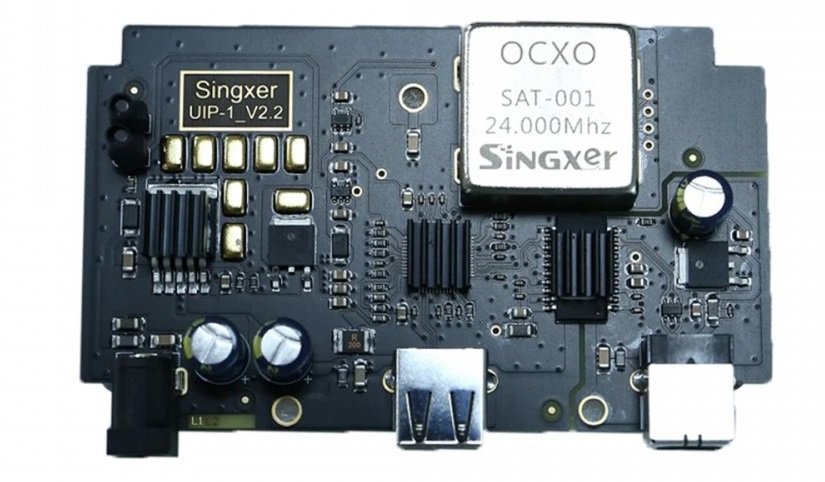

The USB signal is completely isolated, including the USB power and ground circuits. It easily isolates the signal from complex leading edge noise and electromagnetic interference. The isolated signal is then converted in the USB controller. This also eliminates a lot of jitter.

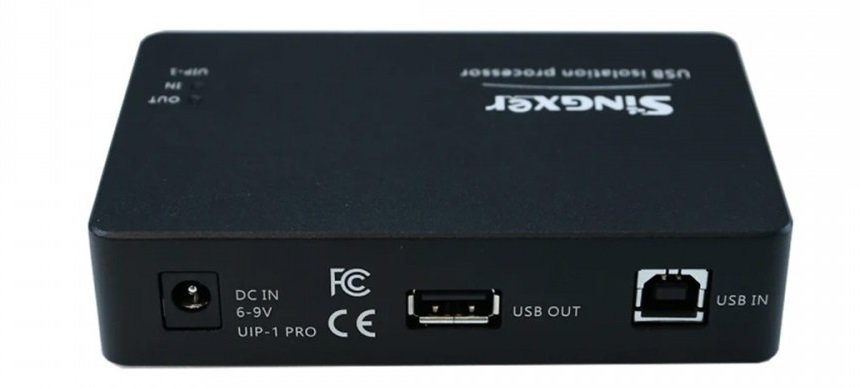

USB-A Output
Isolated signal can be output through the USB Type-A output port. It has a maximum output current of up to 1A with a low noise level of 20µV. Your audio listening experience will be greatly enhanced by clean signal transfer to the source circuit.

Specifications of Singxer UIP-1 Pro:

• Product Type: USB Isolator
• Input: 1* USB-B 2.0
• Output: 1* USB-A 2.0
• Supported USB standards: 1.0 / 1.1/ 2.0
• Maximum throughput: 480Mpbs
• Output current: 1A
• Insulation voltage: 2kV RMS
• Output noise: 20 µV
• plug and play
• Dimensions: 112x72x26 mm
• Black color
• Gross weight: 0.45 kg
• Net weight: 0.2kg
