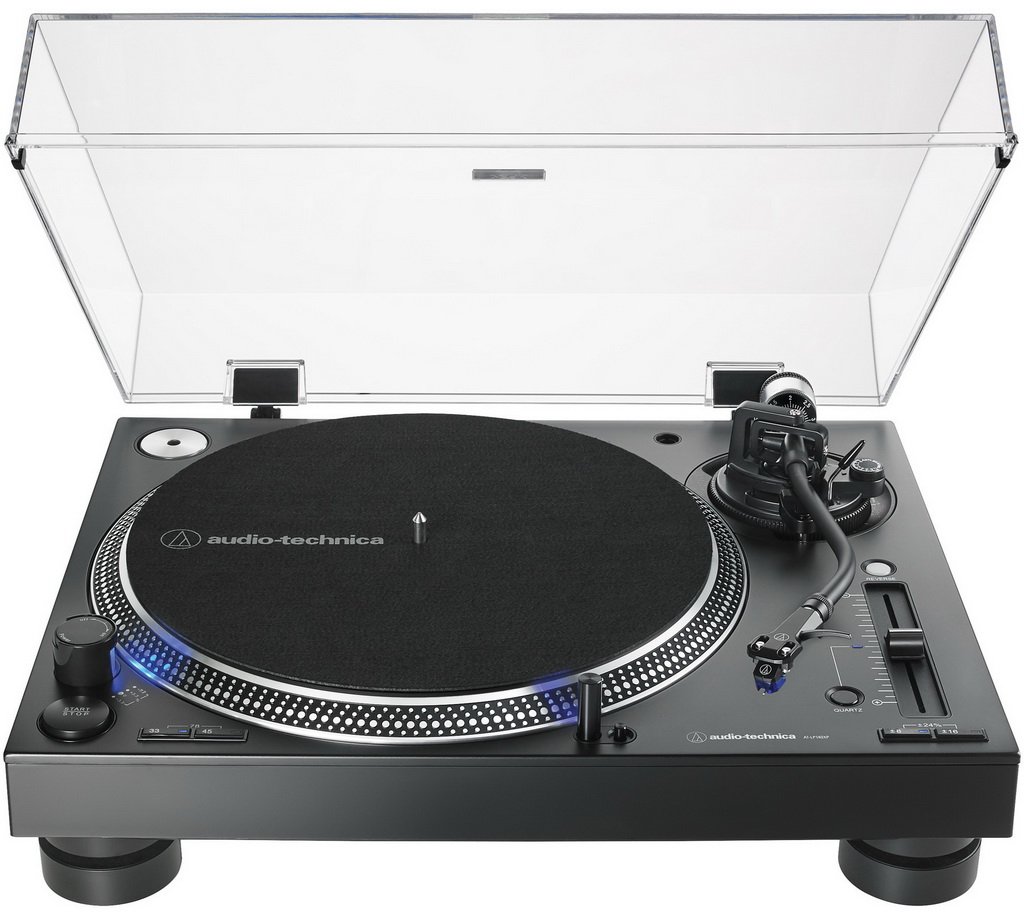

Audio-Technica AT-LP140XP: DJ Turntable equipped with a powerful motor

The Audio-Technica AT-LP140XP player is equipped with a motor with a high starting torque, which also ensures almost instantaneous spin-up of the disc to the required speed. This model has three disc rotation speeds of 33, 45 and 78 rpm, so it is suitable for playing records of any type. To obtain a constant rotation speed, the player uses quartz frequency stabilization of the electrical signal supplied to the motor.

Audio-Technica AT-LP140XP is equipped with a button for starting the record in the reverse direction, characteristic of a professional model, as well as continuously adjustable rotation speed. Both of these functions are relatively easy to implement on direct drive models, which is what makes this class of players so popular among DJs. To visually monitor the correct speed setting, the Audio-Technica AT-LP140XP has a strobe light.

The player has a cast aluminum platter with a felt mat. Due to its significant mass, the disk has inertia sufficient for smooth rotation of the plate. The player is equipped with an S-shaped tonearm with a damped micro-lift and the ability to adjust in height. The tonearm is equipped with a proprietary MM pickup with a conical stylus and anti-skating is provided. The player is equipped with gold-plated RCA sockets for connection to an external phono stage. The player is equipped with a dustproof cover and also has a removable backlight for convenient use in low-light conditions.

The Audio-Technica AT-LP140XP professional-grade vinyl turntable is designed for use by DJs during performances. The player has a reliable design and is equipped with a direct drive, which allows you to brake the record by hand and then quickly return it to the nominal speed. The device has massive chassis damping, which reliably protects it from external vibrations. This chassis is essential to eliminating the risk of low-frequency acoustic feedback that can occur during live performances.

Characteristics of Audio-Technica LP140XP

Direct drive type (Direct Drive)
DC electric motor
Supported disk rotation speeds 33.3, 45, 78 rpm Speed ​​switching
electronic (push-button)
Support disk cast aluminum
Starting torque more than 2.2 kgf cm
Pitch function Control is available
Rotation speed change limits ± 8%, ± 16%, ± 24%
Electronic disc brake system
Detonation coefficient less than 0.2% (3 kHz)
Signal-to-noise ratio more than 50 dB
Tonearm static, balanced, S-shaped, removable shell , anti-skating, hydraulic microlift, effective length 230.5 mm, overhang: 16 mm, permissible cartridge weight: 3.5-8.5 g
Cartridge MM cartridge AT-XP3 with double VM-type moving magnetic system, profile needles: conical (0.6 mil), needle holder: carbon fiber, tracking force range: 2-4 g (optimal: 3 g), output voltage: 5.5 mV, frequency range: 20-18000 Hz, channel separation: 20 dB , cartridge weight: 6.2 g, replacement needle: ATN-XP3

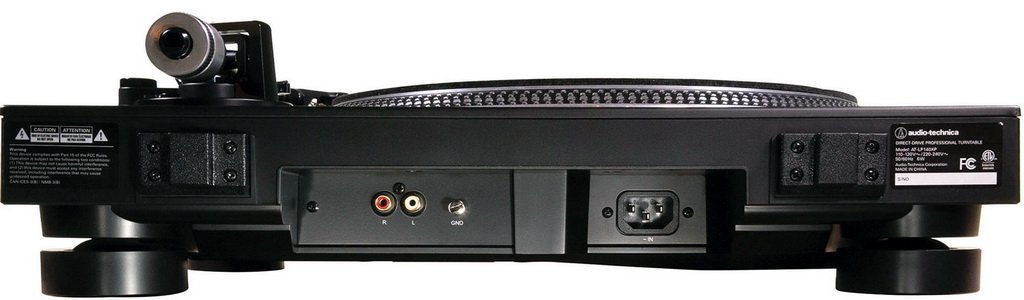

Outputs analog RCA
Power consumption 2.75 W
Accessories included felt mat, dust cover, adapter for single-coil 45 rpm, counterweight, shell AT-HS6, cable 2RCA – 2RCA, backlight for pickup
Dimensions (WxHxD) 452x159x352 mm
Height with lid raised 430 mm
Weight 10 kg
